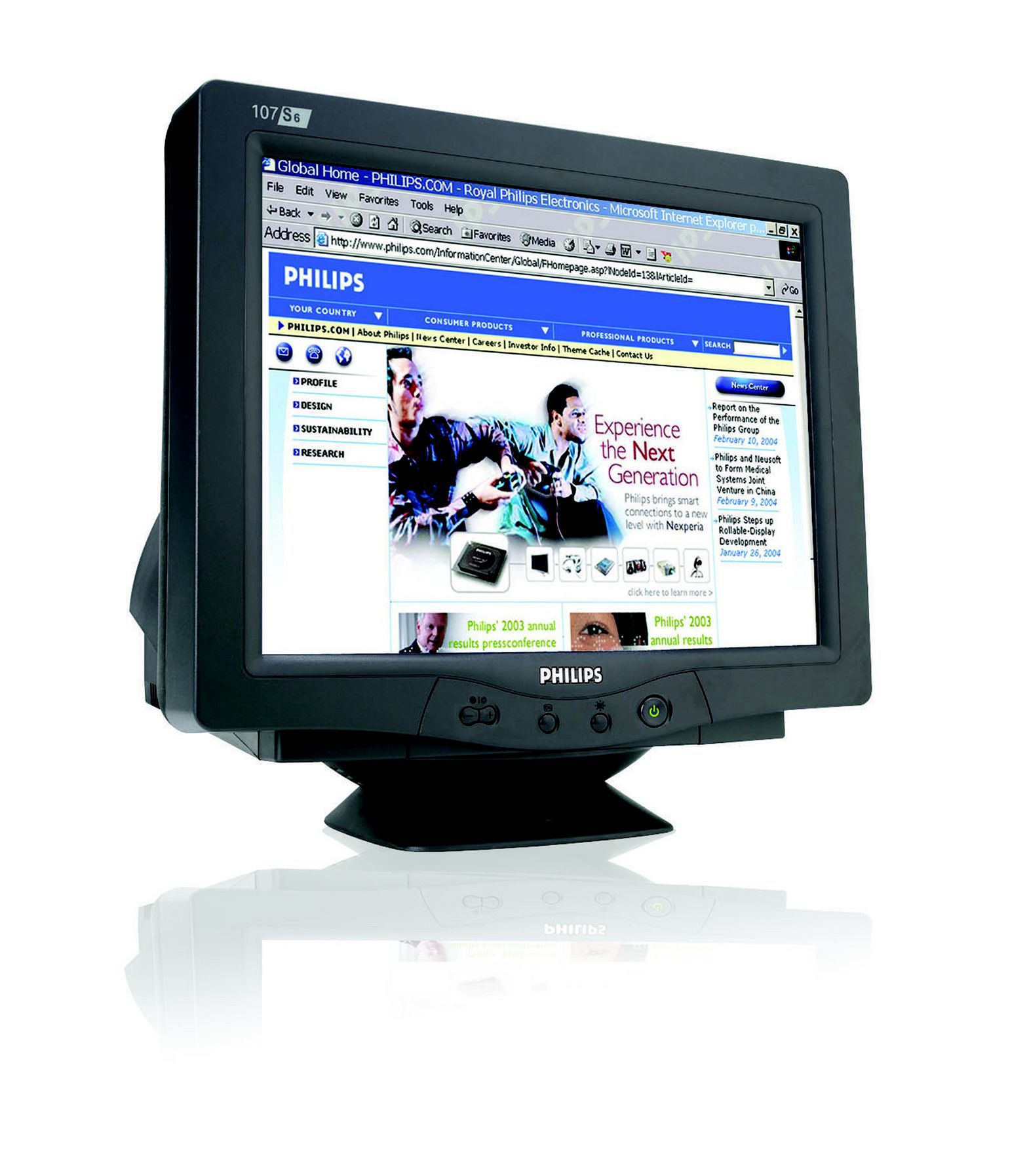

CRT monitor 107S66/75
Model 107S66/75EAN 8710895853439
27 specifications
- Display43.2 cm (17")
- Weight15 kg
- ColourBlack
- Power consumption (typical)68 W
- Storage temperature (T-T)-25 - 65 °C
- Dimensions (W x D x H) with stand397 x 424 x 383 mm
Overview
- Display
- 43.2 cm (17")
- Weight
- 15 kg
- Colour
- Black
- Power consumption (typical)
- 68 W
- Storage temperature (T-T)
- -25 - 65 °C
- Dimensions (W x D x H) with stand
- 397 x 424 x 383 mm
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107S66/75
- Part number
- 107S66/75
- EAN / UPC
- 8710895853439
- Also known as
- Philips CRT monitor 107S66/75
Specifications
27 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Display GTF | Yes |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Sync input impedance | 4700 Ω |
| Video input impedance | 75 Ω |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -5 - 13° |
| Certification | CE Mark FCC-B, UL, CSA MPR-II, Low Emission NUTEK, Energy Star SEMKO TÜV/GS, TÜV Ergo FDA EZU GOST MEEI PCBC CCC BSMI E2000 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 68 W |
| Power consumption (off) | 1 W |
| Monitor typical power consumption | 68 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (W x D x H) with stand | 397 x 424 x 383 mm |
| Weight | 15 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
Technical details
| Specification | Value |
|---|---|
| Dot clock scanning frequency | 120 MHz |
| LED indicators | Operation |
| Languages support | Simplified Chinese, English, French, Italian, Korean, Portuguese |
| Resolution | 1280 x 1024 pixels |
| Video Dot Rate | 120 MHz |
| Bundled hardware | AC power cord |
