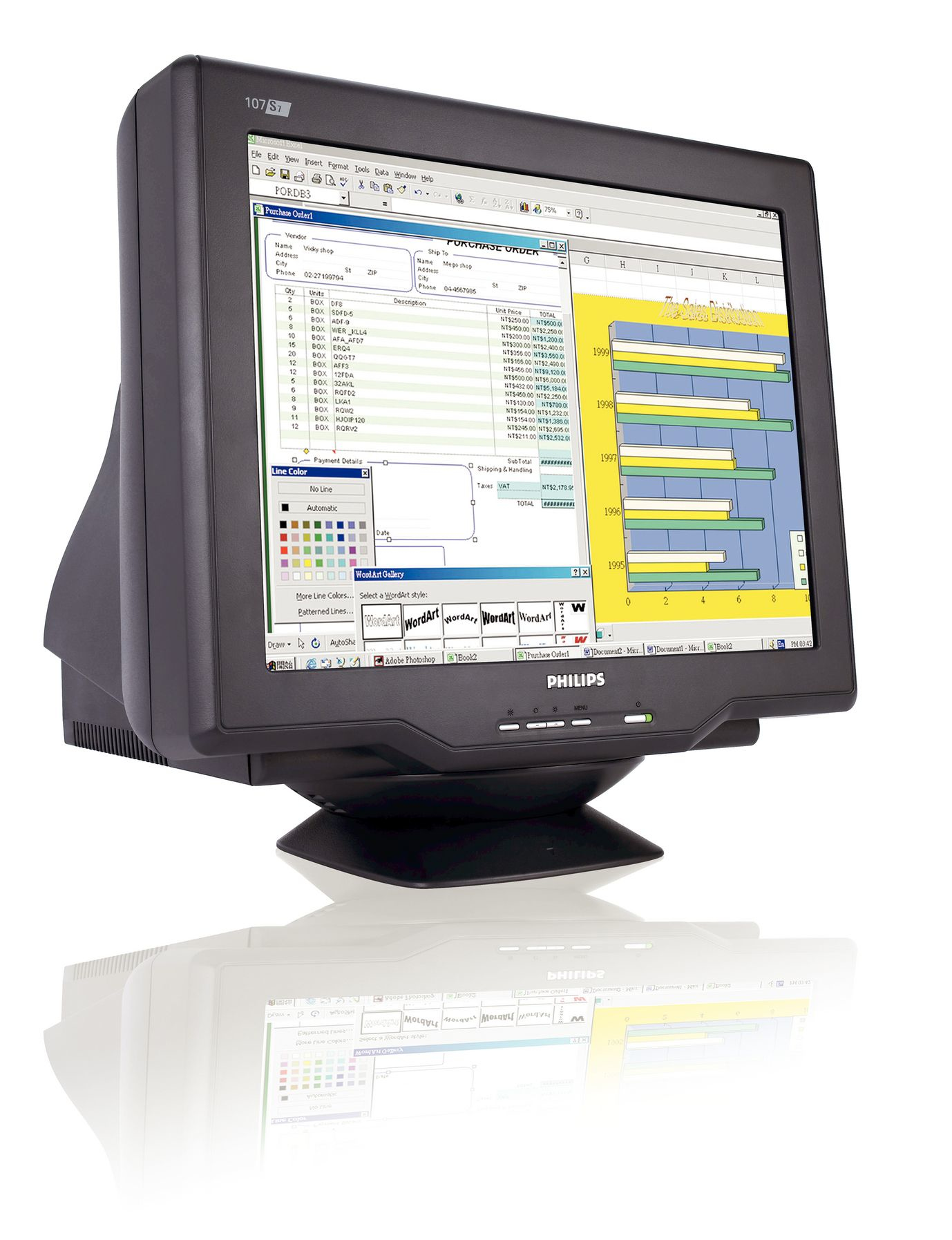

107S96/93 monitor CRT
43.2 cm (17")
Model 107S96/93EAN 8712581431884
43 specifications
- Display43.2 cm (17")
- Weight13.5 kg
- Swivel angle range-90 - 90°
- Power consumption (typical)65 W
- Depth423.5 mm
- Compatible operating systemsWindows 98/ME/2000/XP/Vista
Overview
- Display
- 43.2 cm (17")
- Weight
- 13.5 kg
- Swivel angle range
- -90 - 90°
- Power consumption (typical)
- 65 W
- Depth
- 423.5 mm
- Compatible operating systems
- Windows 98/ME/2000/XP/Vista
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107S96/93
- Part number
- 107S96/93
- EAN / UPC
- 8712581431884
- Also known as
- Philips 107S96/93 monitor CRT 43.2 cm (17")
Specifications
43 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Maximum resolution | 1920 x 1440 pixels |
| Digital horizontal frequency | 30 - 71 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display dot pitch (horizontal) | 0.21 mm |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Recommended display area(inch) | 30.5 cm (12") |
| Sync input impedance | 2200 Ω |
| Display panel size | 17"/ 41 cm |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
| White Chromaticity, 6500K | x = 0.313 / y = 0.329 |
| White Chromaticity, 9300K | x = 0.283 / y = 0.297 |
Features
| Specification | Value |
|---|---|
| Swivel angle range | -90 - 90° |
| Tilt angle range | -5 - 13° |
| Certification | CCC CECP MPR-II, low radiation |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 65 W |
| Power consumption (off) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 423.5 mm |
| Height | 382 mm |
| Set weight (lb) | 13.5 kg (29.7 lbs) |
| Weight | 13.5 kg |
| Width | 397 mm |
| Set depth (inch) | 42.4 cm (16.7") |
| Set height (inch) | 38.1 cm (15") |
| Set width (inch) | 39.6 cm (15.6") |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 526 mm |
| Package height | 450 mm |
| Package weight | 15.8 kg |
| Package width | 460 mm |
| Box depth (imperial) | 52.6 cm (20.7") |
| Box height (imperial) | 45 cm (17.7") |
| Box width (imperial) | 46 cm (18.1") |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP/Vista |
Technical details
| Specification | Value |
|---|---|
| Languages support | Simplified Chinese, English |
| Phosphor | P22 |
| Resolution | 1280 x 1024 pixels |
| Video Dot Rate | 110 MHz |
