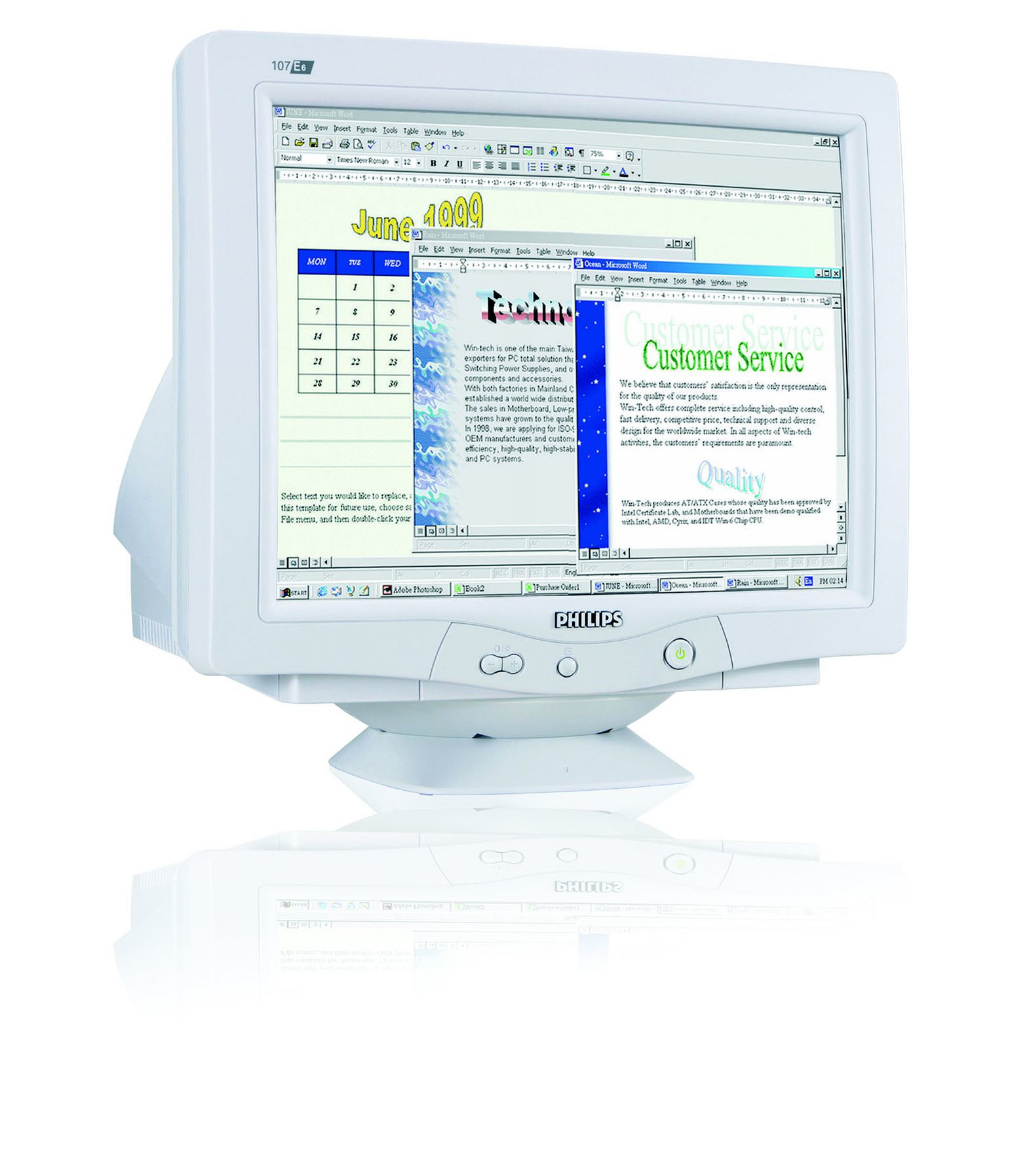

107E61/77 monitor CRT
1024 x 768 pixels 43.2 cm (17") White
Model 107E61/77EAN 8710895853491
28 specifications
- Display43.2 cm (17")
- Resolution1024 x 768 pixels
- Weight13.4 kg
- ColourWhite
- Power consumption (typical)64 W
- Storage temperature (T-T)-25 - 60 °C
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1024 x 768 pixels
- Weight
- 13.4 kg
- Colour
- White
- Power consumption (typical)
- 64 W
- Storage temperature (T-T)
- -25 - 60 °C
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107E61/77
- Part number
- 107E61/77
- EAN / UPC
- 8710895853491
- Also known as
- Philips 107E61/77 monitor CRT 1024 x 768 pixels 43.2 cm (17") White
Specifications
28 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1024 x 768 pixels |
| Maximum resolution | 1280 x 1024 pixels |
| Display viewable area (HxV) | 306 x 230 mm |
| Pixel pitch | 0.23 x 0.23 mm |
| Digital horizontal frequency | 30 - 71 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display dot pitch (horizontal) | 0.23 mm |
| Display recommended refresh rate | 85 Hz |
| Sync input impedance | 4700 Ω |
| Video input impedance | 75 Ω |
Features
| Specification | Value |
|---|---|
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 64 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 419 mm |
| Depth (with base) | 41.9 cm |
| Height | 383 mm |
| Weight | 13.4 kg |
| Width | 397 mm |
| Width (with base) | 39.7 cm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Depth (with stand) | 419 mm |
| Dot clock scanning frequency | 120 MHz |
| Height (with stand) | 383 mm |
| Video Dot Rate | 120 MHz |
