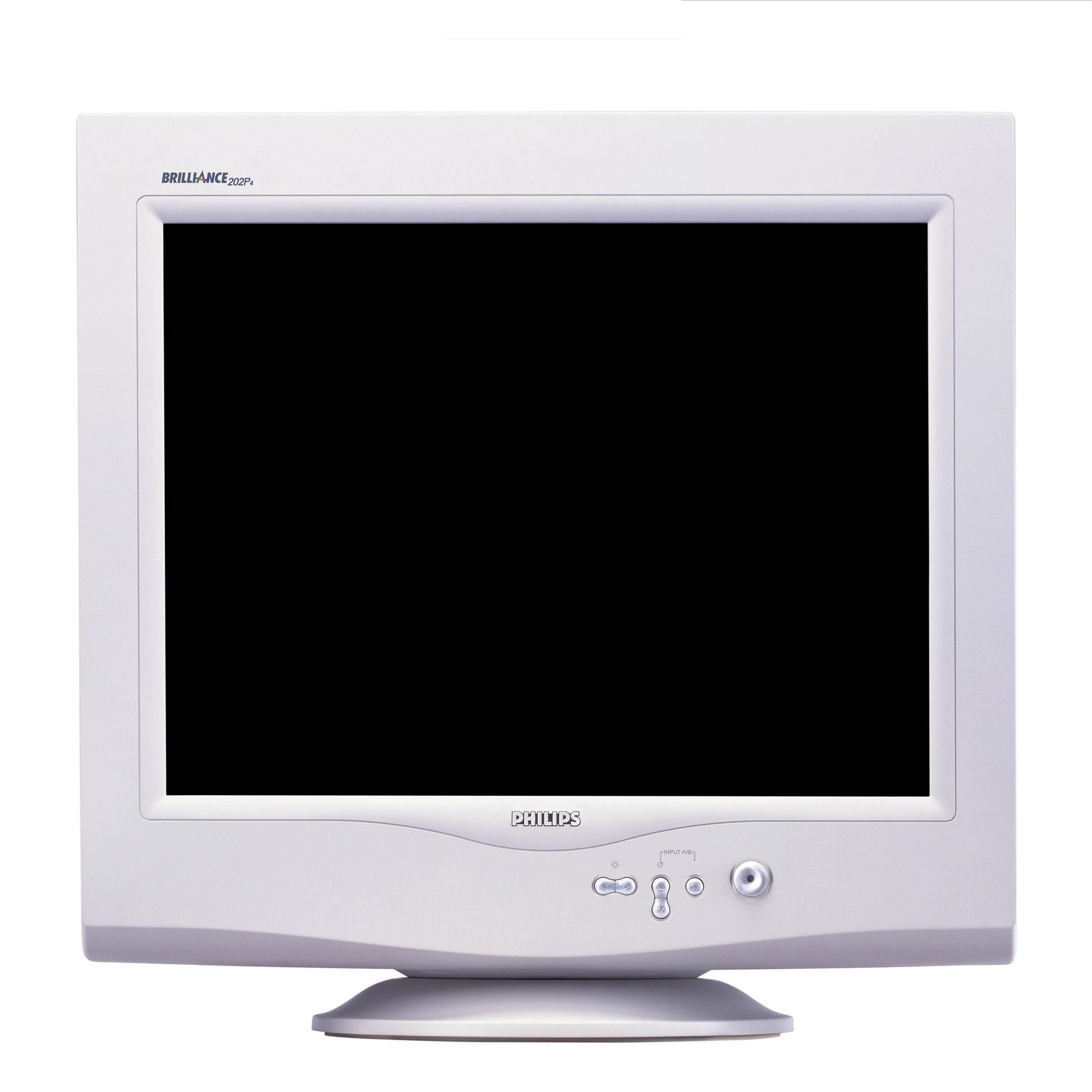

202P40/20 monitor CRT
55.9 cm (22")
Model 202P40/20EAN 8710895812214
29 specifications
- Display55.9 cm (22")
- TypeAperture Grille CRT
- Weight29.6 g
- Tilt angle range-5 - 25°
- Power consumption (typical)130 W
- Storage temperature (T-T)-25 - 65 °C
Overview
- Display
- 55.9 cm (22")
- Type
- Aperture Grille CRT
- Weight
- 29.6 g
- Tilt angle range
- -5 - 25°
- Power consumption (typical)
- 130 W
- Storage temperature (T-T)
- -25 - 65 °C
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 202P40/20
- Part number
- 202P40/20
- EAN / UPC
- 8710895812214
- Also known as
- Philips 202P40/20 monitor CRT 55.9 cm (22")
Specifications
29 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Type | Aperture Grille CRT |
| Viewable size diagonal | 50.8 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 130 kHz |
| Maximum resolution | 2048 x 1536 pixels |
| Digital horizontal frequency | 30 - 130 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display GTF | Aperture Grille, Real Flat, High Contrast, AGARAS, Light Transmission 41% |
| Display dot pitch (horizontal) | 0.24 mm |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Recommended display area(inch) | 39.1 cm (15.4") |
| Sync input impedance | 2200 Ω |
| Video input impedance | 75 Ω |
Features
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 25° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 130 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth (with base) | 46.6 cm |
| Weight | 29.6 g |
| Width (with base) | 50.1 cm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Depth (with stand) | 466 mm |
| Dot clock scanning frequency | 360 MHz |
| Height (with stand) | 501 mm |
| Resolution | 2048 x 1536 pixels |
| Video Dot Rate | 360 MHz |
