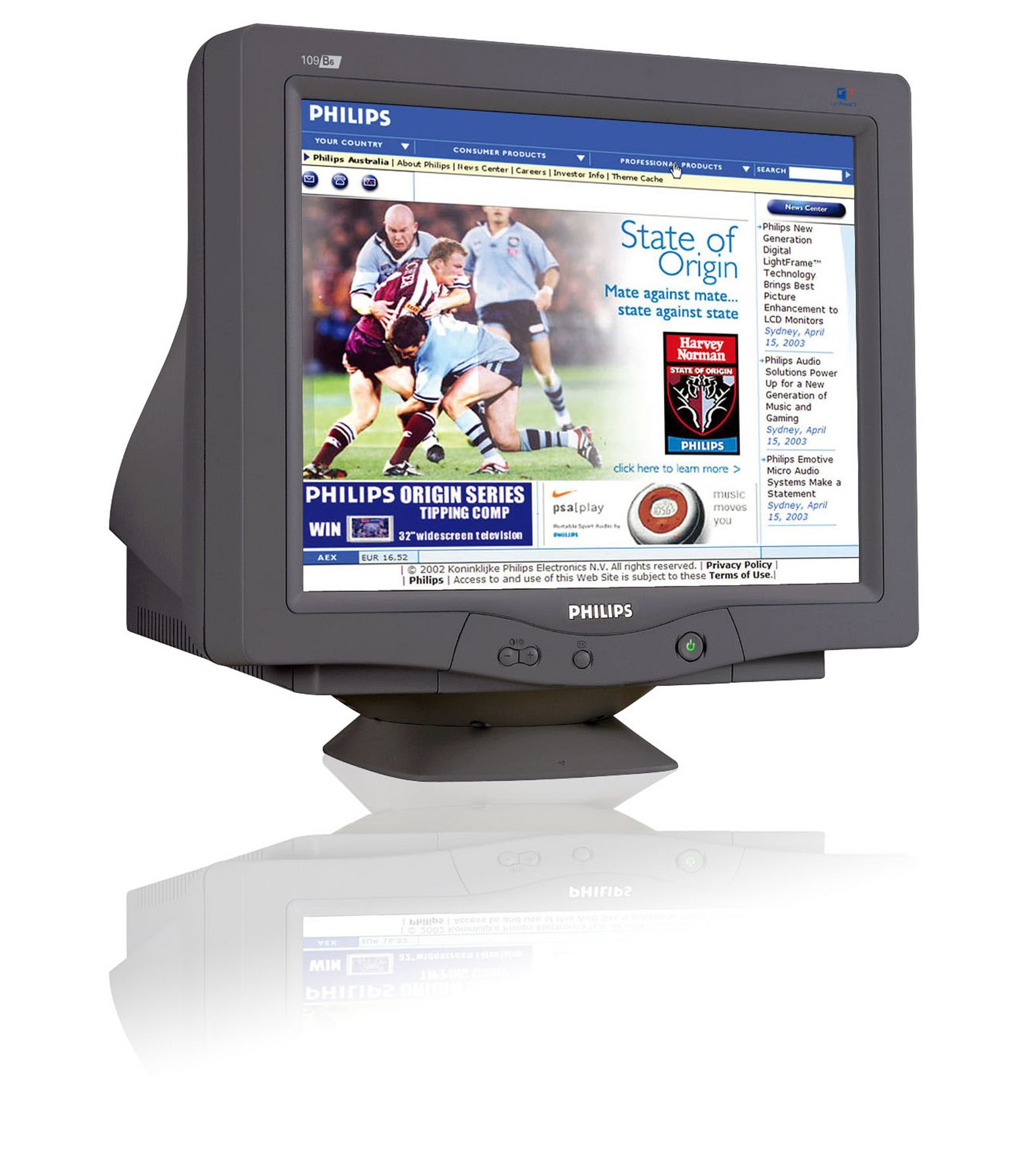

109B65/05 monitor CRT
1600 x 1200 pixels 48.3 cm (19") Black
Model 109B65/05EAN 8710895943550
38 specifications
- Display48.3 cm (19")
- Resolution1600 x 1200 pixels
- TypeRealFlat
- Weight20 kg
- ColourBlack
- Power consumption (typical)70 W
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1600 x 1200 pixels
- Type
- RealFlat
- Weight
- 20 kg
- Colour
- Black
- Power consumption (typical)
- 70 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 109B65/05
- Part number
- 109B65/05
- EAN / UPC
- 8710895943550
- Also known as
- Philips 109B65/05 monitor CRT 1600 x 1200 pixels 48.3 cm (19") Black
Specifications
38 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Type | RealFlat |
| Display resolution | 1600 x 1200 pixels |
| Viewable size, vertical | 26.5 cm |
| Viewable size, horizontal | 35.5 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 97 kHz |
| Maximum resolution | 1920 x 1440 pixels |
| Display viewable area (HxV) | 355 x 265 mm |
| Pixel pitch | 0.25 x 0.25 mm |
| Display GTF | Yes |
| Display dot pitch (horizontal) | 0.21 mm |
| Display recommended refresh rate | 75 Hz |
| Display sRGB | Yes |
| Sync input impedance | 2200 Ω |
| White Chromaticity, 5500K | 0.332 x 0.347 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Swivel angle range | -90 - 90° |
| Plug and Play | Yes |
| Power LED | Yes |
| Tilt angle range | -5 - 25° |
| Certification | CE Mark, FCC-B, UL, CSA, SEMKO, TCO '03, TÜV/GS, TÜV Ergo, FDA, BSMI, GOST, C-Tick, E2000, NUTEK, Energy Star |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 70 W |
| Power consumption (off) | 1 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 449 mm |
| Height | 433 mm |
| Weight | 20 kg |
| Width | 440 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | VGA |
| Manual | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
| Compliance industry standards | E2000, Energy Star, NUTEK |
Technical details
| Specification | Value |
|---|---|
| Cable connection | D-Sub |
| On Screen Display (OSD) languages | Simplified Chinese, German, Spanish, French, Italian, Korean, Portuguese |
| Phosphor | P22 |
| Video Dot Rate | 250 MHz |
