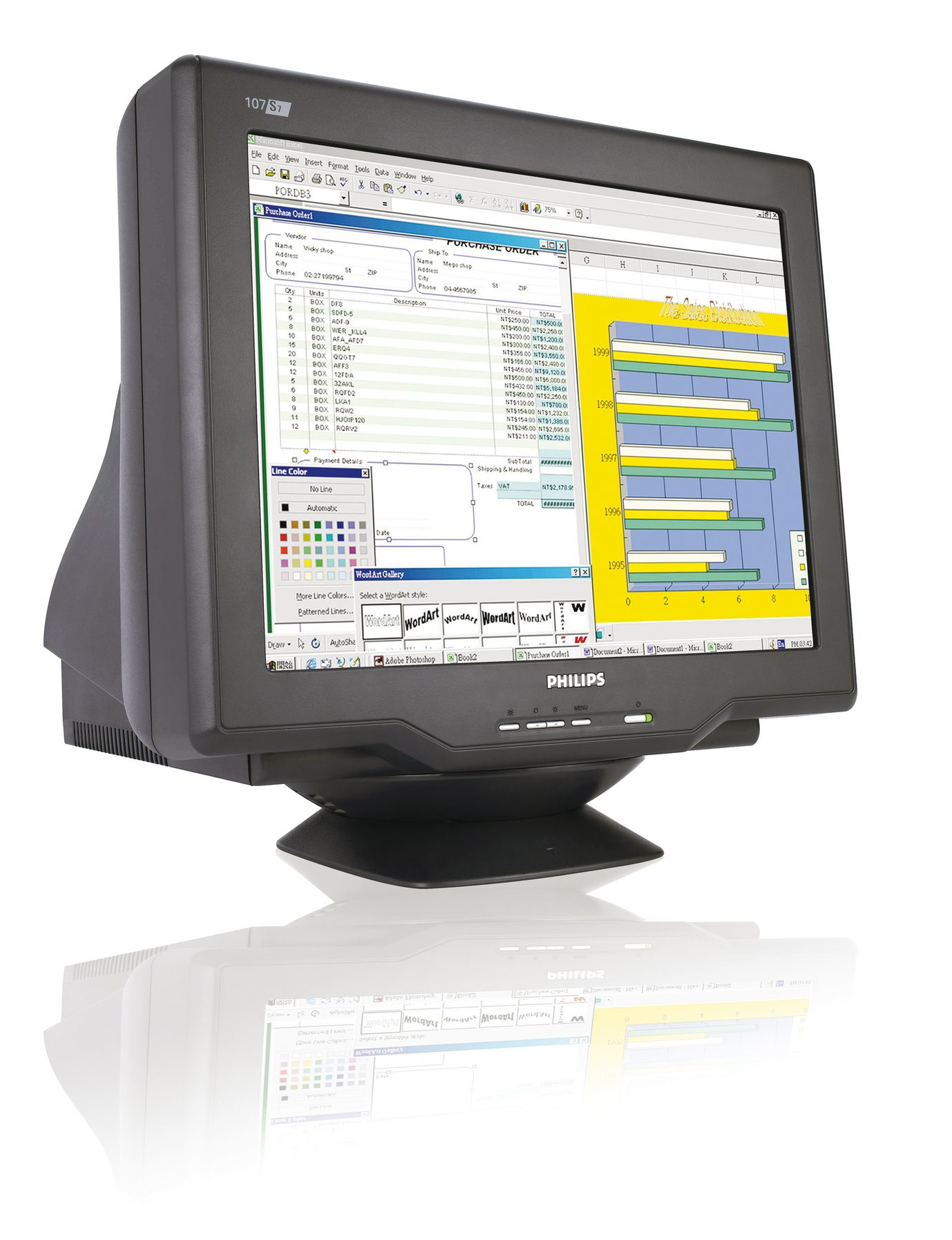

107S96 17" real flat XGA CRT monitor
Model 107S96/97EAN 8712581456153
36 specifications
- Weight13.5 kg
- Maximum resolution1280 x 1024 pixels
- Tilt angle range-5 - 13°
- Power consumption (typical)62 W
- Storage temperature (T-T)-25 - 65 °C
- Depth423.5 mm
Overview
- Weight
- 13.5 kg
- Maximum resolution
- 1280 x 1024 pixels
- Tilt angle range
- -5 - 13°
- Power consumption (typical)
- 62 W
- Storage temperature (T-T)
- -25 - 65 °C
- Depth
- 423.5 mm
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107S96/97
- Part number
- 107S96/97
- EAN / UPC
- 8712581456153
- Also known as
- Philips 107S96 17" real flat XGA CRT monitor
Specifications
36 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 1024 pixels |
| Digital horizontal frequency | 30 - 71 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display dot pitch (horizontal) | 0.21 mm |
| Display recommended refresh rate | 85 Hz |
| Display sRGB | Yes |
| Recommended display area(inch) | 30.5 cm (12") |
| Sync input impedance | 2200 Ω |
| Video input impedance | 75 Ω |
Features
| Specification | Value |
|---|---|
| Tilt angle range | -5 - 13° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 62 W |
| Power consumption (off) | 2 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 423.5 mm |
| Height | 382 mm |
| Set weight (lb) | 13.5 kg (29.7 lbs) |
| Weight | 13.5 kg |
| Width | 397 mm |
| Set depth (inch) | 42.4 cm (16.7") |
| Set height (inch) | 38.1 cm (15") |
| Set weight | 13.5 g |
| Set width | 39.7 cm |
| Set width (inch) | 39.6 cm (15.6") |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 526 mm |
| Package height | 450 mm |
| Package weight | 15.8 kg |
| Package width | 460 mm |
| Box depth (imperial) | 52.6 cm (20.7") |
| Box height (imperial) | 45 cm (17.7") |
| Box width (imperial) | 46 cm (18.1") |
| Package weight (imperial) | 15.8 kg (34.8 lbs) |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Dot clock scanning frequency | 110 MHz |
| Resolution | 1280 x 1024 pixels |
| Video Dot Rate | 110 MHz |
