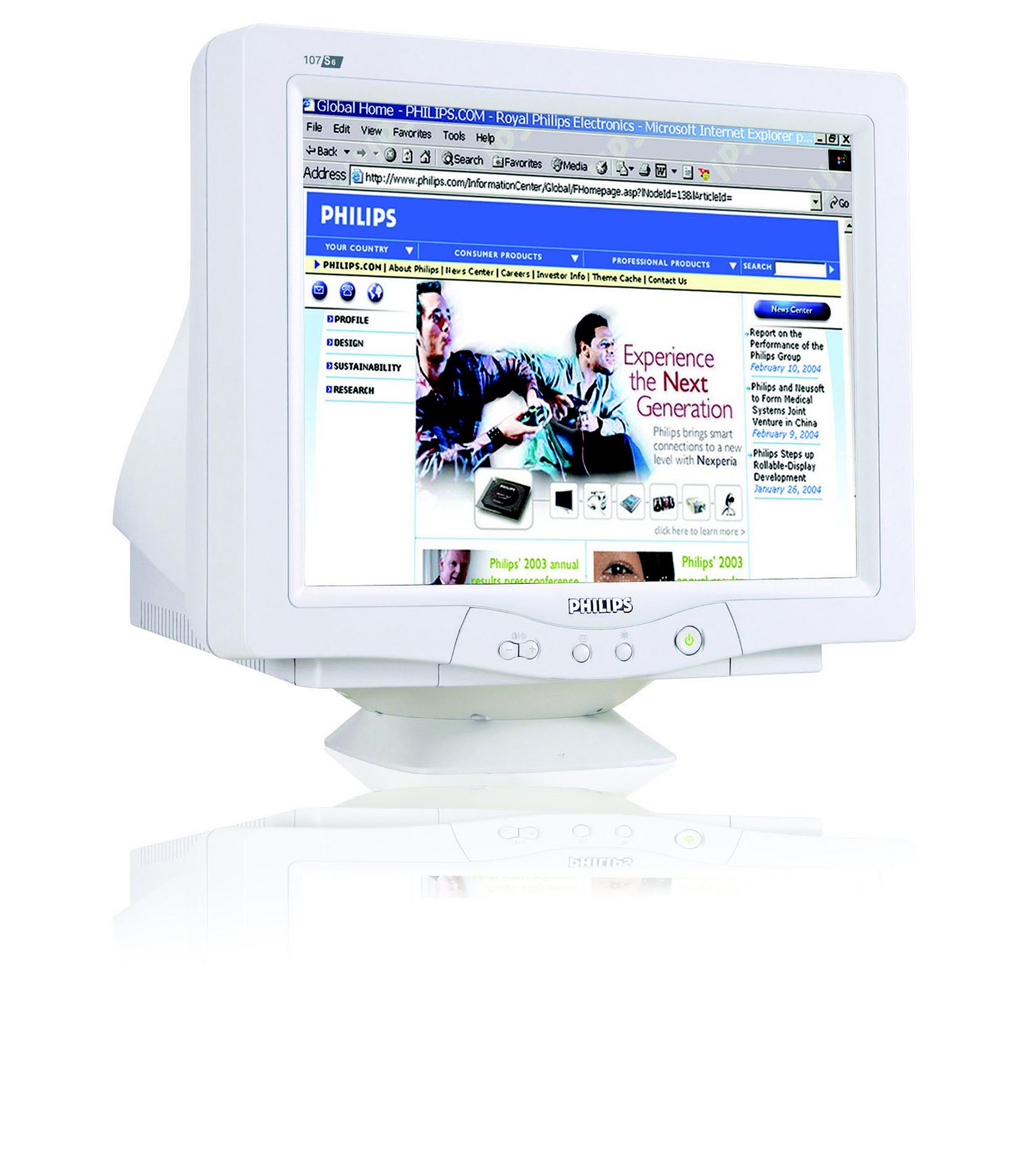

CRT monitor 107S61/75
Model 107S61/75EAN 8710895853415
33 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- TypeReal flat picture tube
- Weight15 kg
- ColourWhite
- Power consumption (off)1 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Type
- Real flat picture tube
- Weight
- 15 kg
- Colour
- White
- Power consumption (off)
- 1 W
- Brand
- Philips
- Category
- Monitors CRT
- Model
- 107S61/75
- Part number
- 107S61/75
- EAN / UPC
- 8710895853415
- Also known as
- Philips CRT monitor 107S61/75
Specifications
33 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Type | Real flat picture tube |
| Display resolution | 1280 x 1024 pixels |
| Viewable size, vertical | 23 cm |
| Viewable size, horizontal | 30.6 cm |
| Viewable size diagonal | 41 cm |
| Vertical scan range | 50 - 160 Hz |
| Horizontal scan range | 30 - 71 kHz |
| Display | CRT |
| Digital horizontal frequency | 30 - 71 kHz |
| Digital vertical frequency | 50 - 160 Hz |
| Display sRGB | Yes |
| Sync input impedance | 4700 Ω |
| Video input impedance | 75 Ω |
| Video input signal levels | 0.7 Vpp |
Features
| Specification | Value |
|---|---|
| Product colour | White |
| Swivel angle range | 90 - 90° |
| Plug and Play | Yes |
| Tilt angle range | -5 - 13° |
| Certification | CE Mark, FCC-B, UL, CSA, MPR-II, low emission, NUTEK, Energy Star, SEMKO, TÜV/GS, TÜV Ergo, FDA, EZU, GOST, MEEI, PCBC, CCC, BSMI, E2000 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x D-sub video cable; 1 x power cord; 1 x Sync input impedance: 4.7k ohm; 1 x Video Input Impedance: 75 ohm; 1 x Video input signal levels: 0.7 Vpp; 1 x Video sync input signal: Separate sync; 1 x Video sync polarities: Positive and Negative; 1 x AC power in. |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1 W |
| Monitor typical power consumption | 68 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 397 x 424 x 383 mm |
| Weight | 15 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 98/ME/2000/XP |
Technical details
| Specification | Value |
|---|---|
| Dot clock scanning frequency | 120 MHz |
| Languages support | Simplified Chinese, English, French, Italian, Korean, Portuguese |
| Resolution | 1280 x 1024 pixels |
| Video Dot Rate | 120 MHz |
