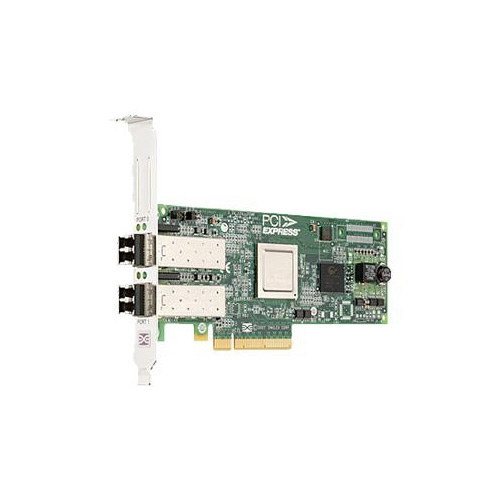

Dell Emulex LPE12002
Model Emulex LPE12002Part no. 406-10681EAN 5397063818365
17 specifications
- ColourGreen
- Host interfacePCIe
- InternalYes
- Data transfer rate (max)8 Gbit/s
- Operating temperature (T-T)0 - 55 °C
- Depth167.6 mm
Overview
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Data transfer rate (max)
- 8 Gbit/s
- Operating temperature (T-T)
- 0 - 55 °C
- Depth
- 167.6 mm
- Brand
- Dell
- Category
- Interface Cards/Adapters
- Model
- Emulex LPE12002
- Part numbers
- 406-10681, 406-10469, 406-10691
- EAN / UPC
- 5397063818365, 5054629922408, 5397063767748
- Also known as
- DELL Emulex LPE12002 interface cards/adapter Internal Fiber
Specifications
17 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Fiber |
| Expansion card standard | PCIe 2.0 |
| Fiber optic connector | LC |
| Connector(s) | 2x Fiber 8Gb |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Certification | CISPR 22 Class A, DHHS, EN55022 Class A, EMC, ICES-003 Class A, RoHS, UL 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, EN 60825-1, EN55024 Class A, BSMI Class A, VCCI Class A |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 8 Gbit/s |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 167.6 mm |
| Height | 68.9 mm |
Other features
| Specification | Value |
|---|---|
| Compatibility | Dell: PowerEdge R320 PowerEdge R410 PowerEdge R415 PowerEdge R420 PowerEdge R515 PowerEdge R520 PowerEdge R610 PowerEdge R620 PowerEdge R710 PowerEdge R715 PowerEdge R720 PowerEdge R810 PowerEdge R815 PowerEdge R820 PowerEdge R910 PowerEdge T320 PowerEdge T410 PowerEdge T420 PowerEdge T610 PowerEdge |
