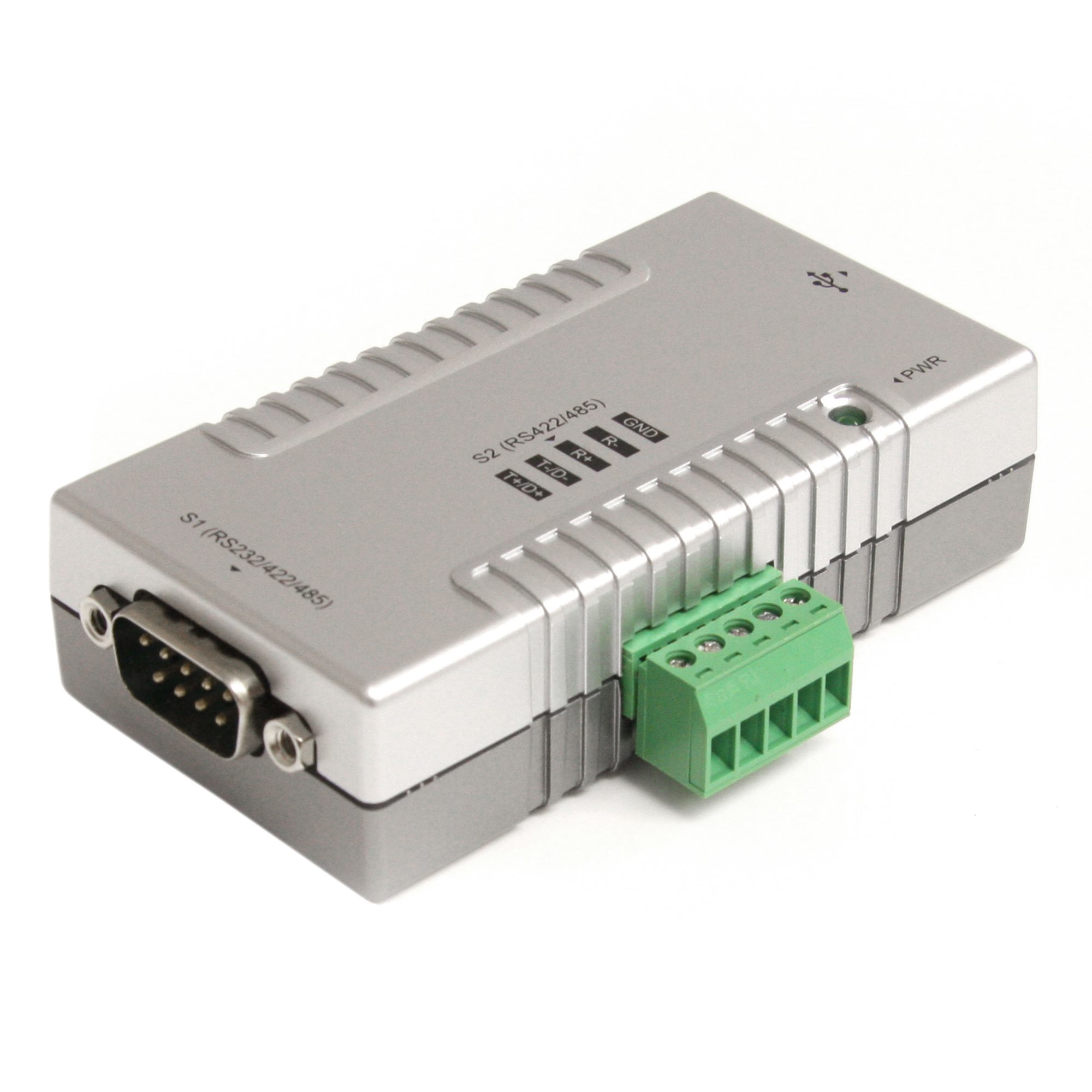

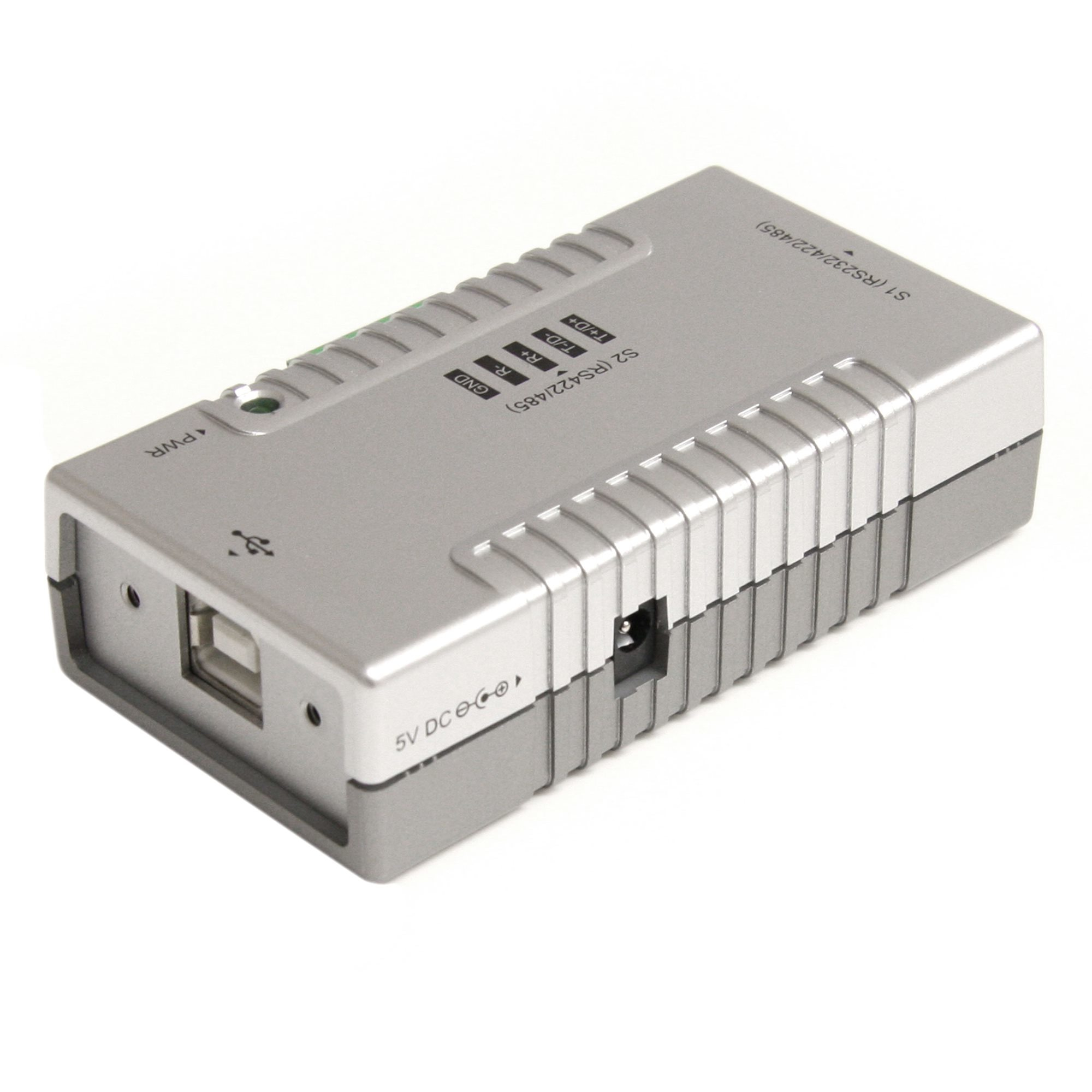

StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention - TAA

2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention - TAA

Model ICUSB2324852EAN 4058829197803

44 specifications

Weight300 g
ColourGrey
Host interfaceUSB Type-B
InternalNo
ChipsetFTDI - FT2232H
Output voltage5 V

See all specifications

Overview

Weight: 300 g
Colour: Grey
Host interface: USB Type-B
Internal: No
Chipset: FTDI - FT2232H
Output voltage: 5 V

Brand: StarTech.com
Category: Interface Cards/Adapters
Model: ICUSB2324852
Part number: ICUSB2324852
EAN / UPC: 4058829197803, 065030840965, 100177416366, 151903051566 +9 more
Also known as: StarTech.com 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention - TAA

Specifications

44 specifications in 11 groups

Ports & interfaces

Specification	Value
Host interface	USB Type-B
Output interface	Serial
Serial ports quantity	1
Serial interface type	RS-232/422/485

Design

Specification	Value
Internal	No
Product colour	Grey
LED indicators	Power

Features

Specification	Value
Chipset	FTDI - FT2232H
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	128 B
Data bits	7, 8
Stop bits	1, 2
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	No, XON/XOFF

Power

Specification	Value
Output voltage	5 V

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	5 - 95%

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7,
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Su
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Windows XP Embedded

Technical details

Specification	Value
Compliance certificates	CE, RoHS
Sustainability compliance	Yes

Weight & dimensions

Specification	Value
Width	44.2 mm
Depth	82.3 mm
Height	23 mm
Weight	300 g

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

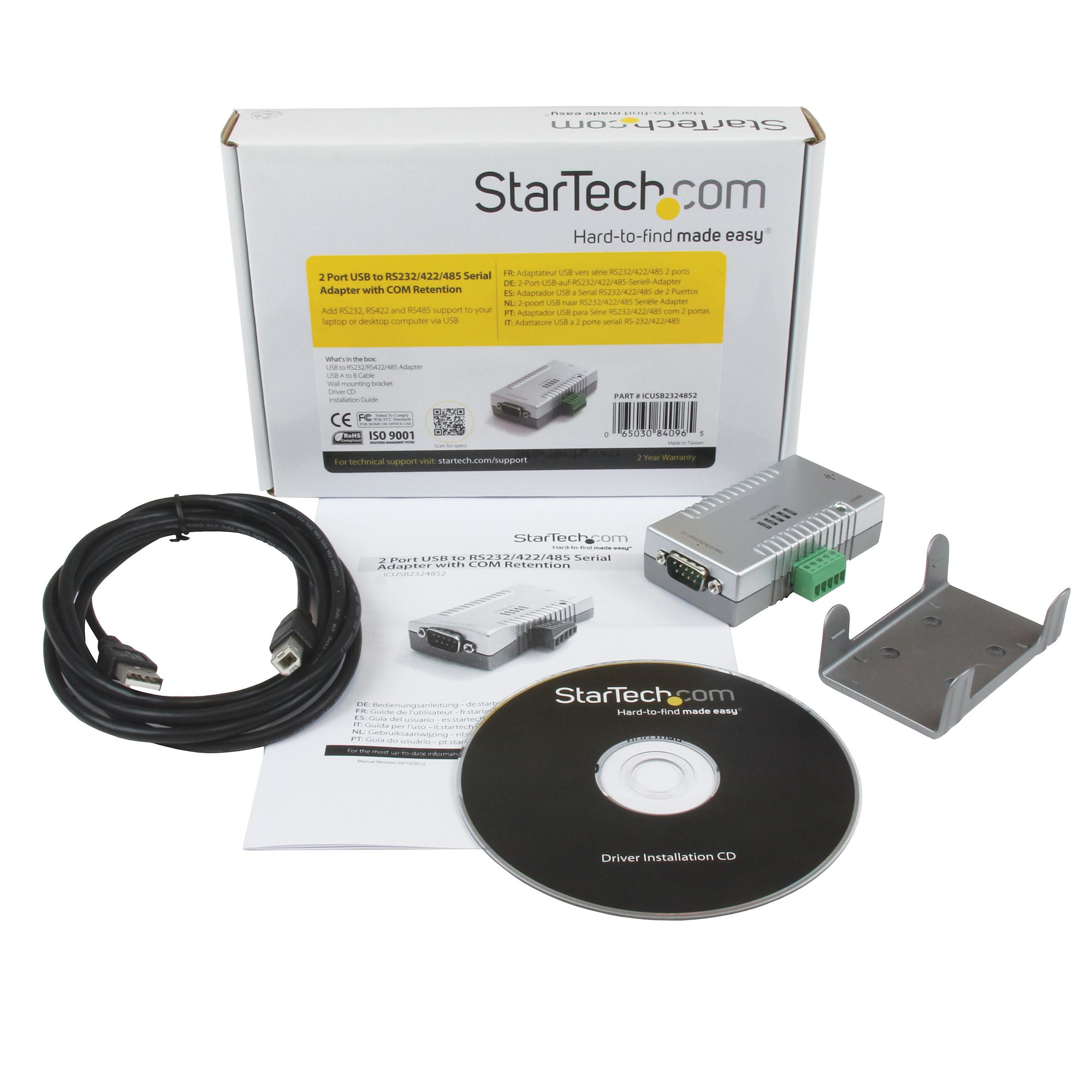

Cables included	USB Type-A to USB Type-B
Mounting brackets included	Yes
Drivers included	Yes
Manual	Yes
Package width	145 mm
Package depth	209 mm
Package height	45 mm
Package weight	310 g

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
Products per master (outer) case	40 pc(s)
Master (outer) case width	406 mm
Master (outer) case length	500 mm
Master (outer) case height	330 mm

Other features

Specification	Value
Compatible operating systems	Windows 98SE/ ME/ 2000/ XP(32/64bit)/ 2003(32/64bit)/ Vista(32/64bit)/ Server 2008(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Mac 9.8/OS X, Linux 2.4.x; Windows XP Embedded, CE 4.2/ 5.2/ 6.0, PocketPC 2003, Mobile 5, 6
