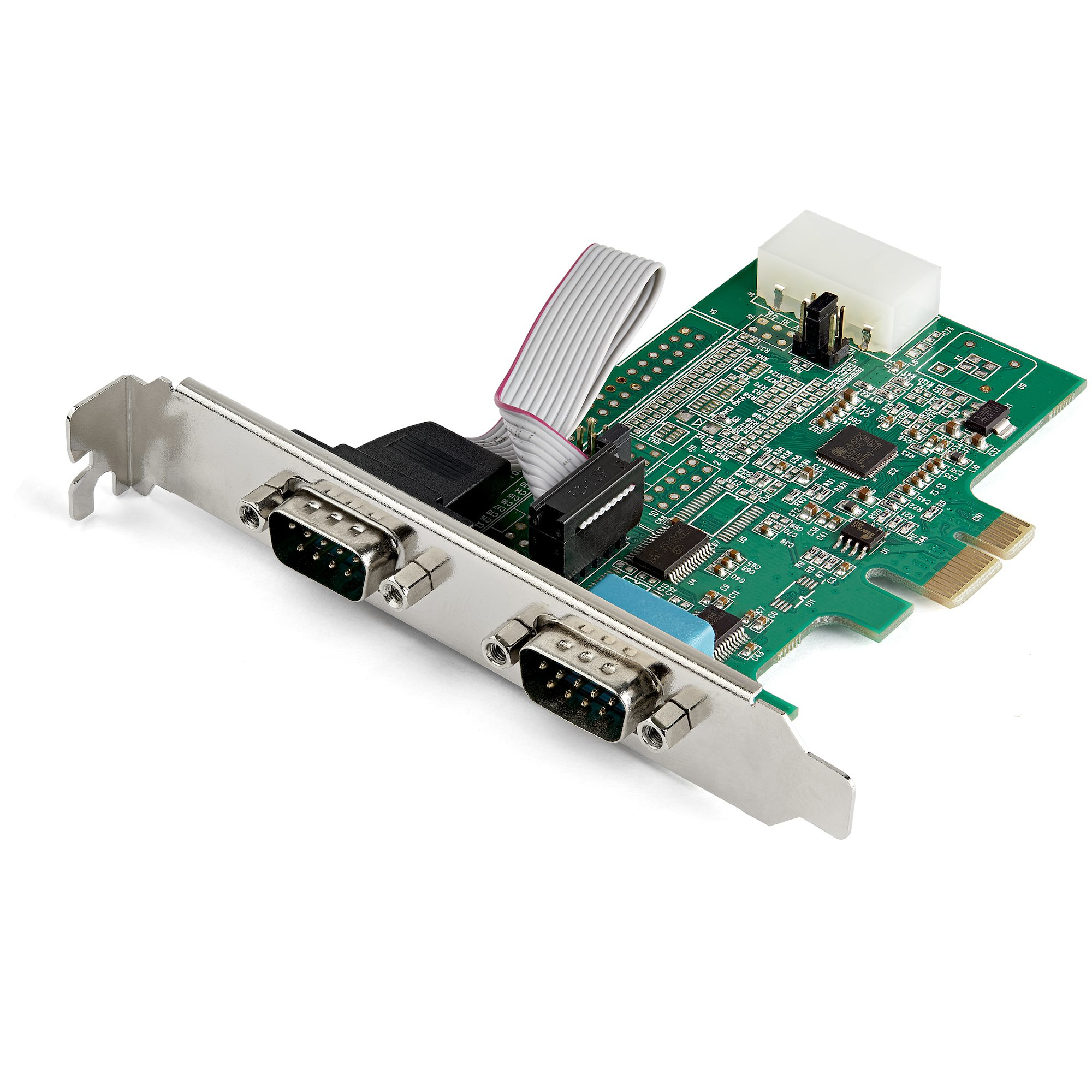

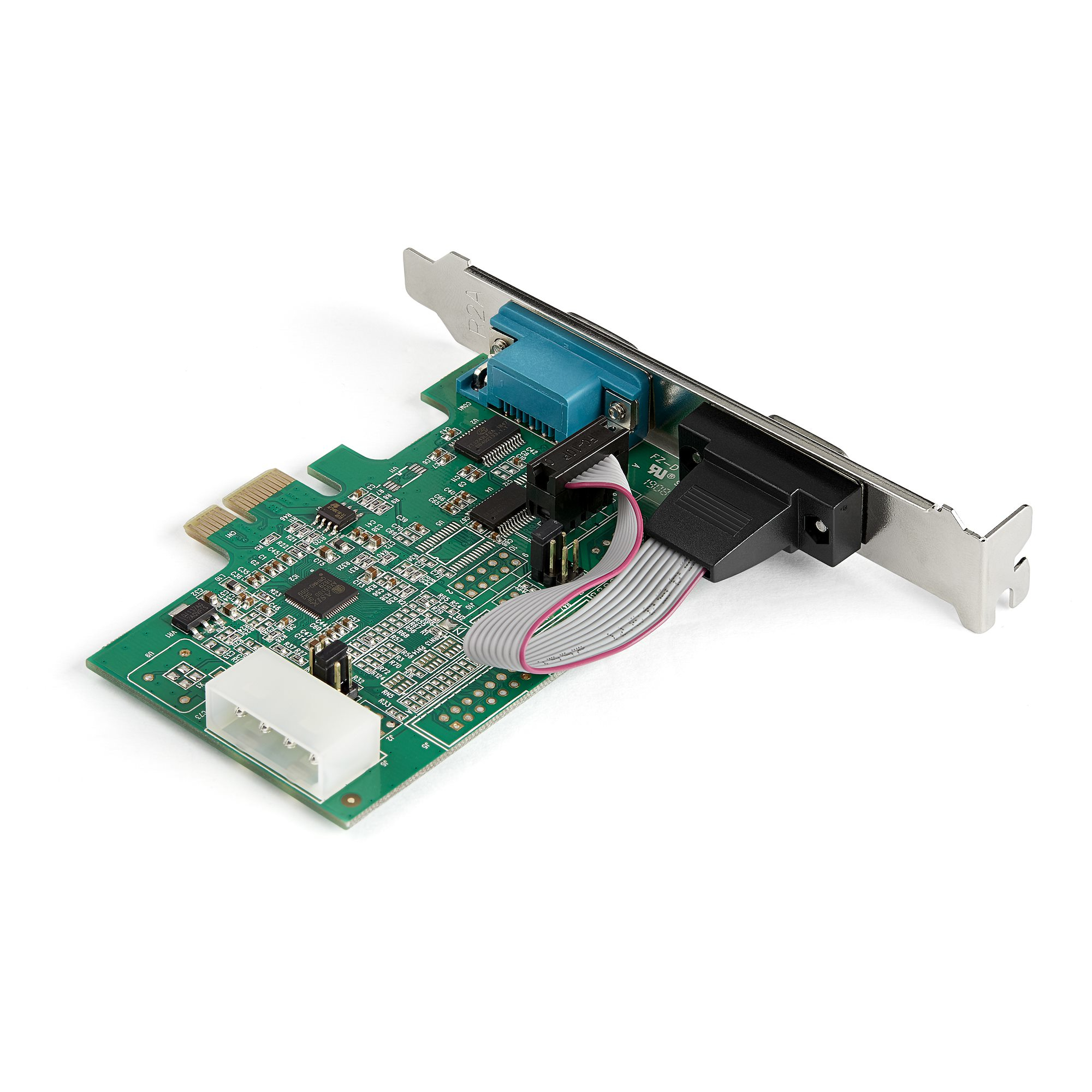

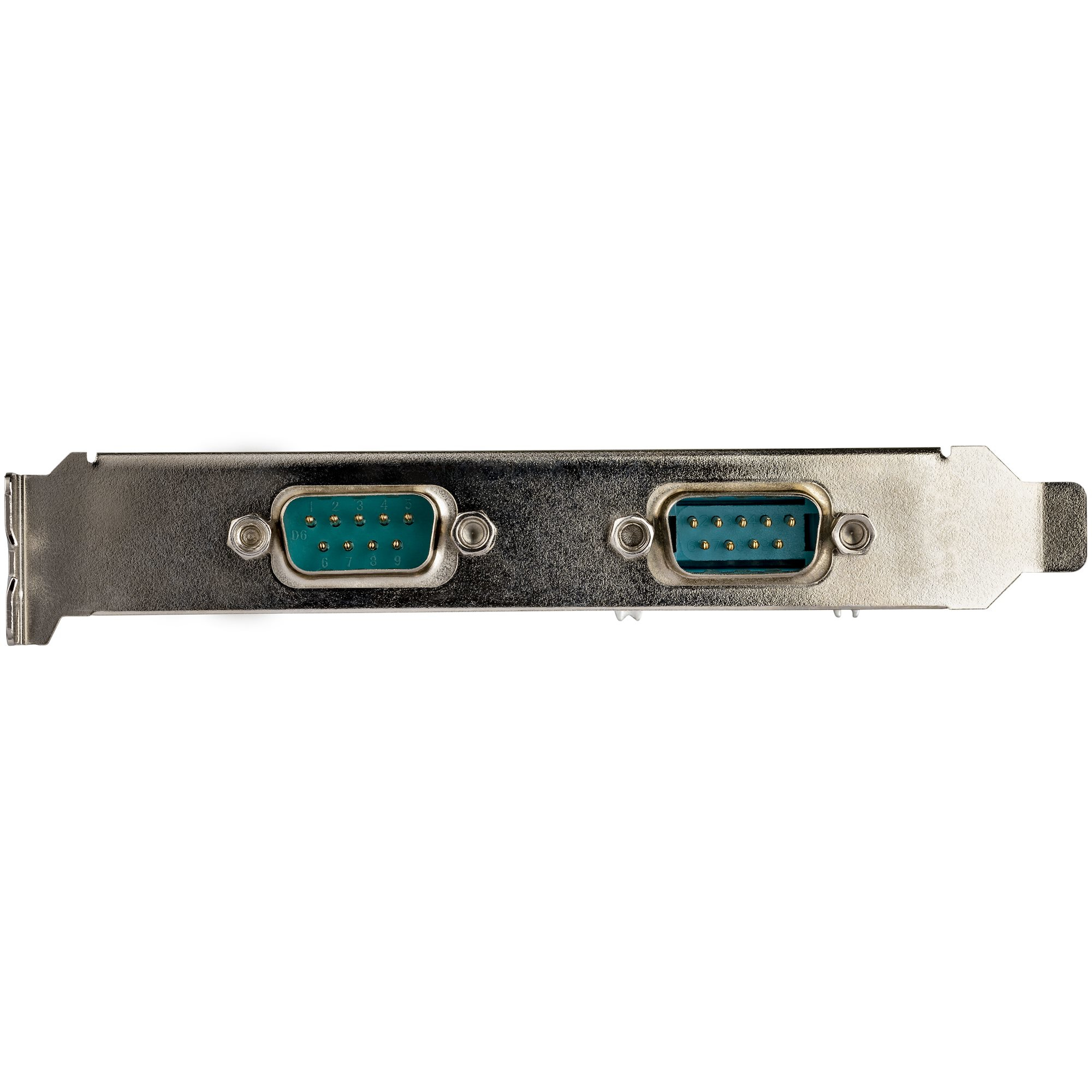

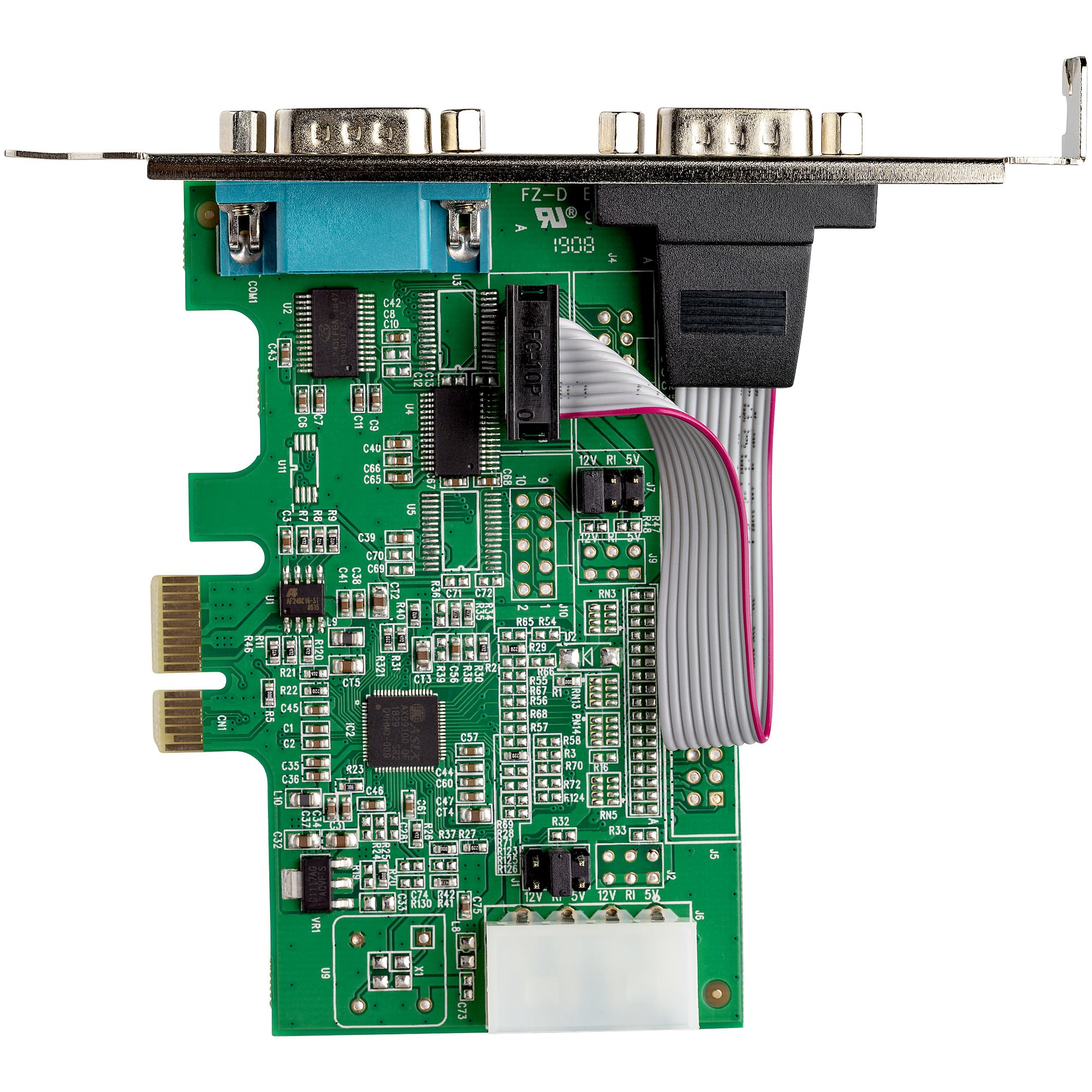

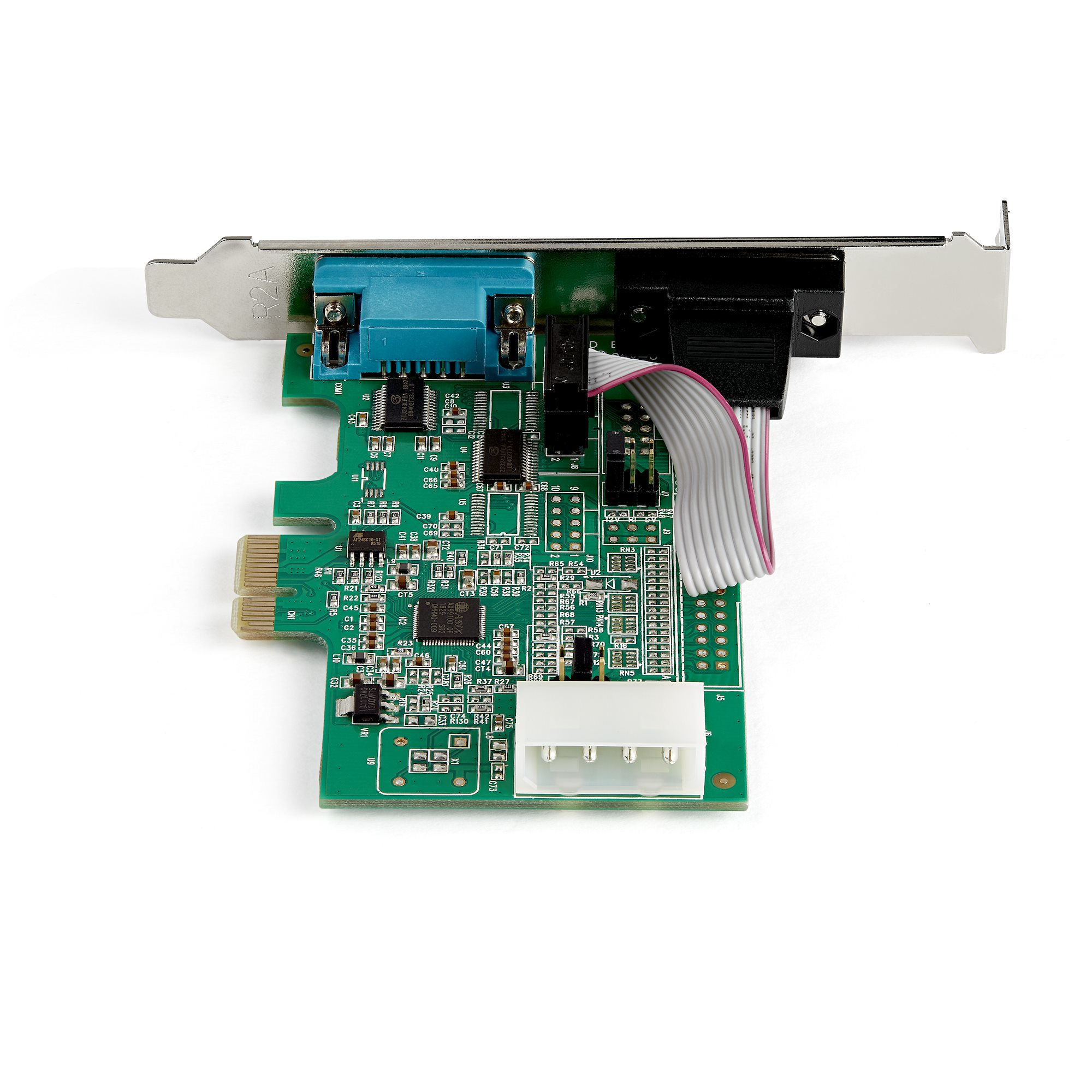

2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card
Model PEX2S953EAN 065030888332
38 specifications
- Weight56 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetAsix AX99100
- Operating temperature (T-T)-10 - 80 °C
Overview
- Weight
- 56 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- Asix AX99100
- Operating temperature (T-T)
- -10 - 80 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S953
- Part number
- PEX2S953
- EAN / UPC
- 065030888332
- Also known as
- StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card
Specifications
38 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Mean time between failures (MTBF) | 222366 h |
Features
| Specification | Value |
|---|---|
| Chipset | Asix AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 63 mm |
| Depth | 75 mm |
| Height | 15 mm |
| Weight | 56 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Quick installation guide | Yes |
| Package width | 144 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 136 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 359 mm |
| Master (outer) case length | 690 mm |
| Master (outer) case height | 310 mm |
