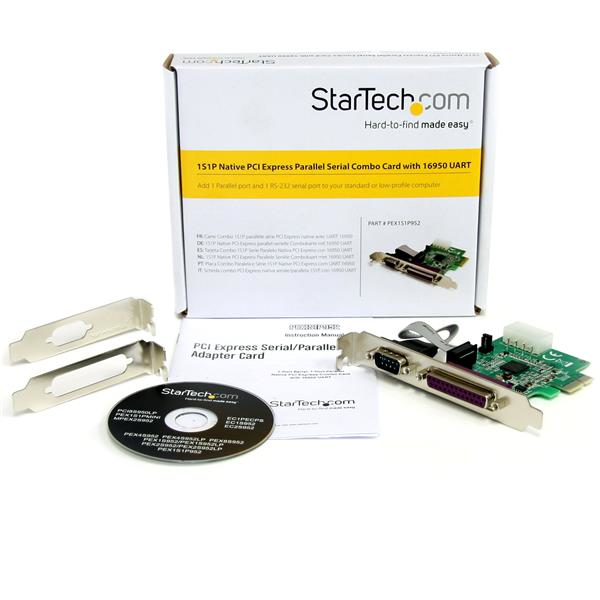

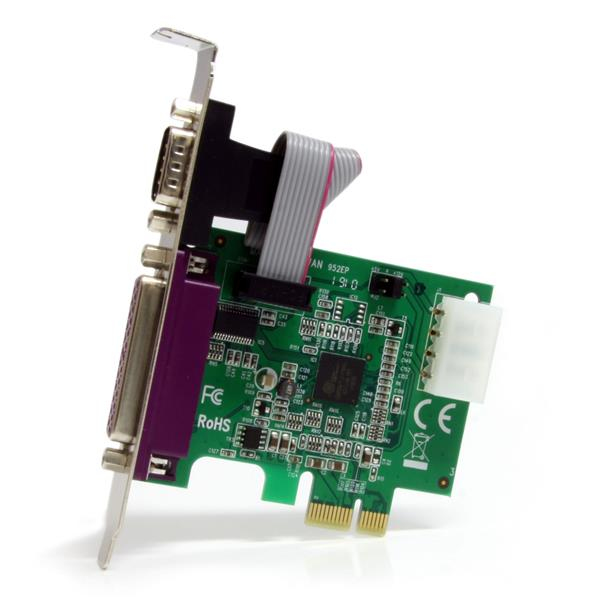

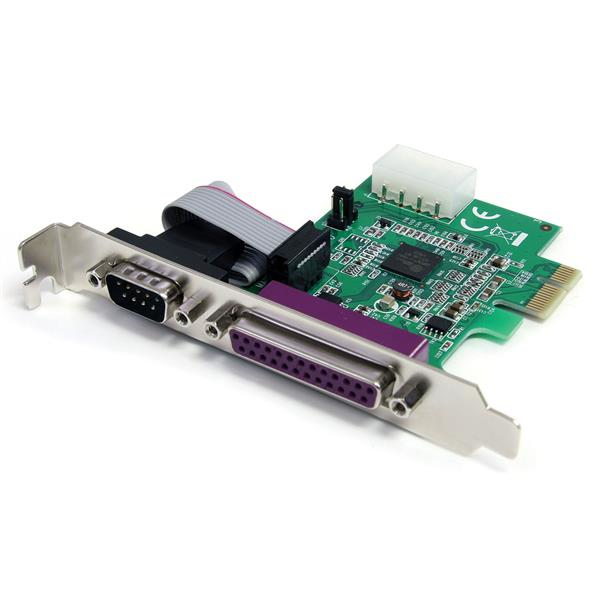

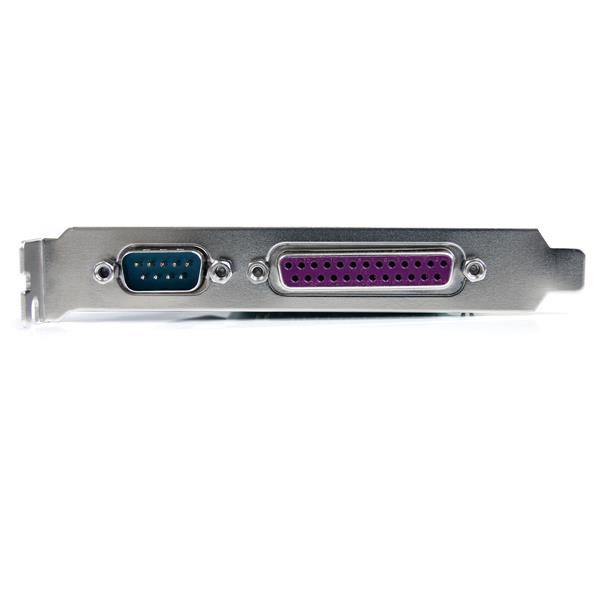

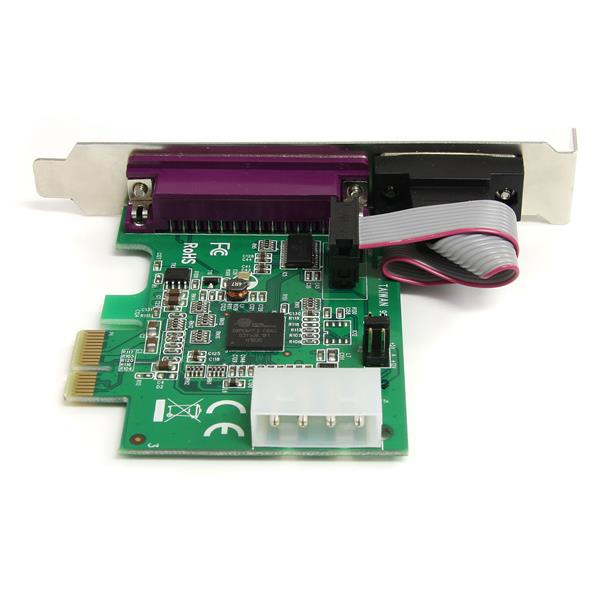

1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART
Model PEX1S1P952EAN 5554442338429
43 specifications
- Weight64 g
- ColourGreen
- Host interfacePCIe
- InternalYes
- ChipsetPLX/Oxford - OXPCIe952
- Power consumption (typical)0.2 W
Overview
- Weight
- 64 g
- Colour
- Green
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- PLX/Oxford - OXPCIe952
- Power consumption (typical)
- 0.2 W
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX1S1P952
- Part number
- PEX1S1P952
- EAN / UPC
- 5554442338429, 065030842600, 168141443084, 601141634781 +9 more
- Also known as
- StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART
Specifications
43 specifications in 11 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Parallel, Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Parallel ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Green |
| Mean time between failures (MTBF) | 87600 h |
| Certification | CE, FCC, TAA |
Features
| Specification | Value |
|---|---|
| Chipset | PLX/Oxford - OXPCIe952 |
| FIFO (First In, First Out) | 128 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Supports EPP and ECP | Yes |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | XON/XOFF |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 0.2 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Pre |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Other operating systems supported | Windows XP Embedded |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 12 mm |
| Depth | 80 mm |
| Height | 65 mm |
| Weight | 64 g |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 31 mm |
| Package weight | 148 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 357 mm |
| Master (outer) case length | 675 mm |
| Master (outer) case height | 312 mm |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 1.5 Mbit/s |
