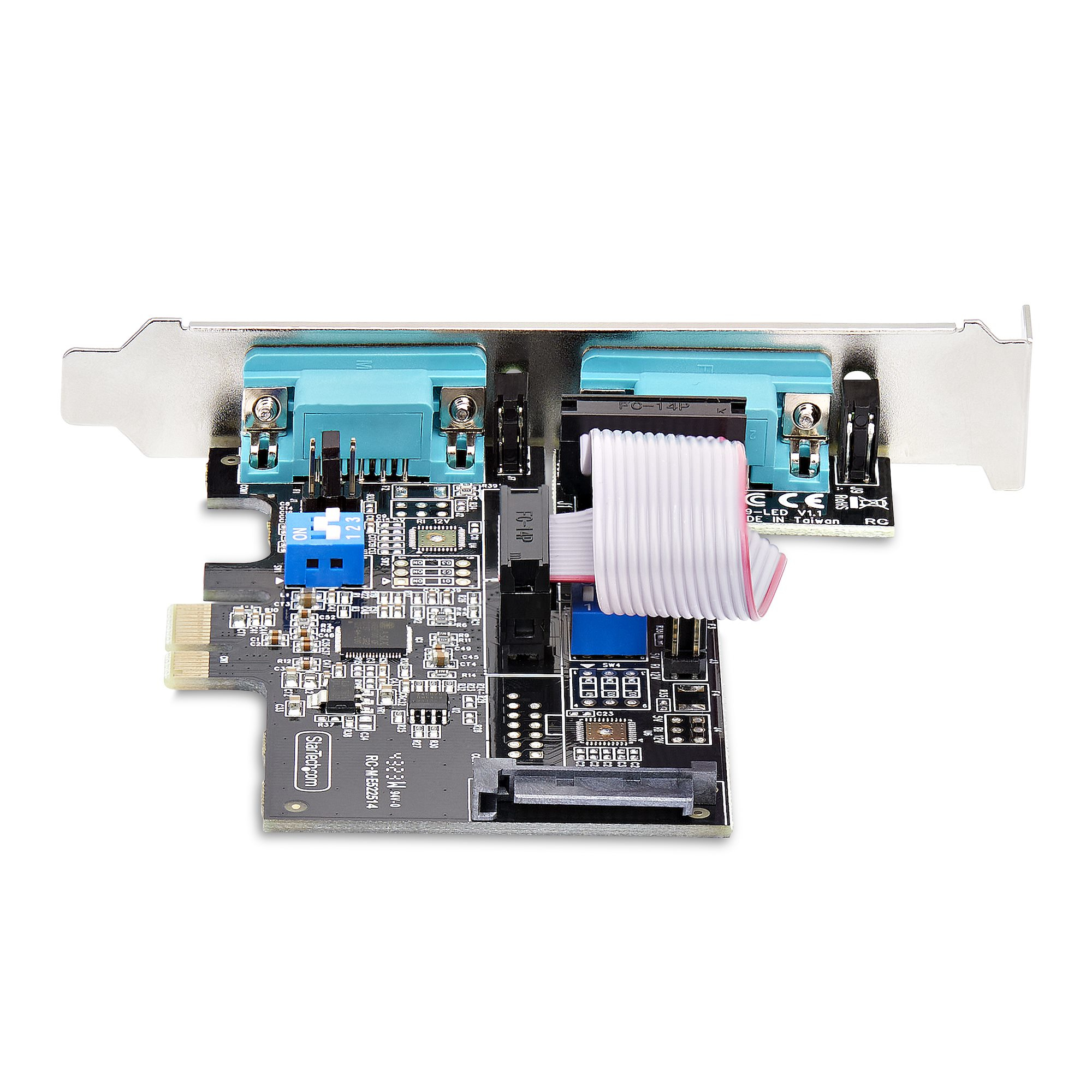

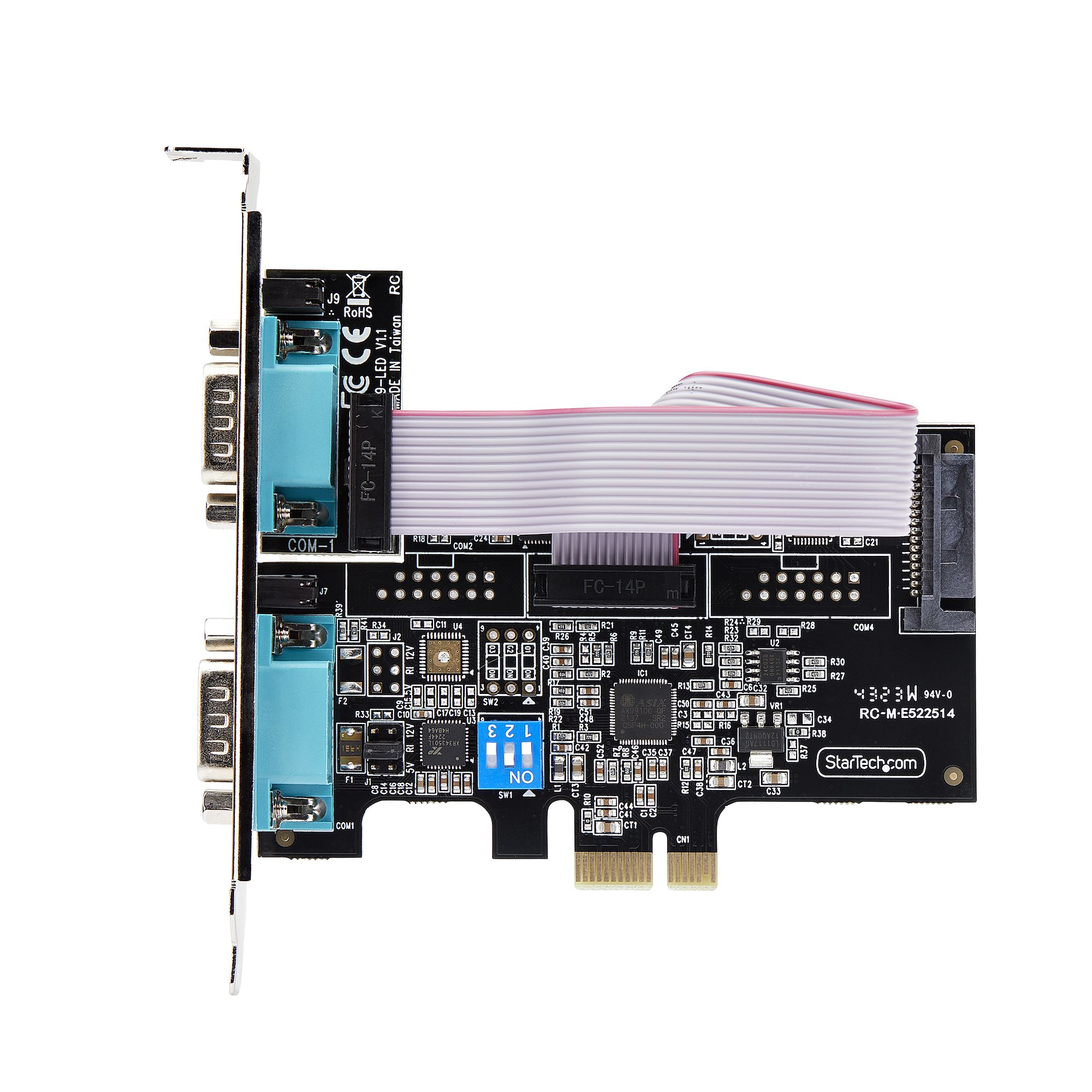

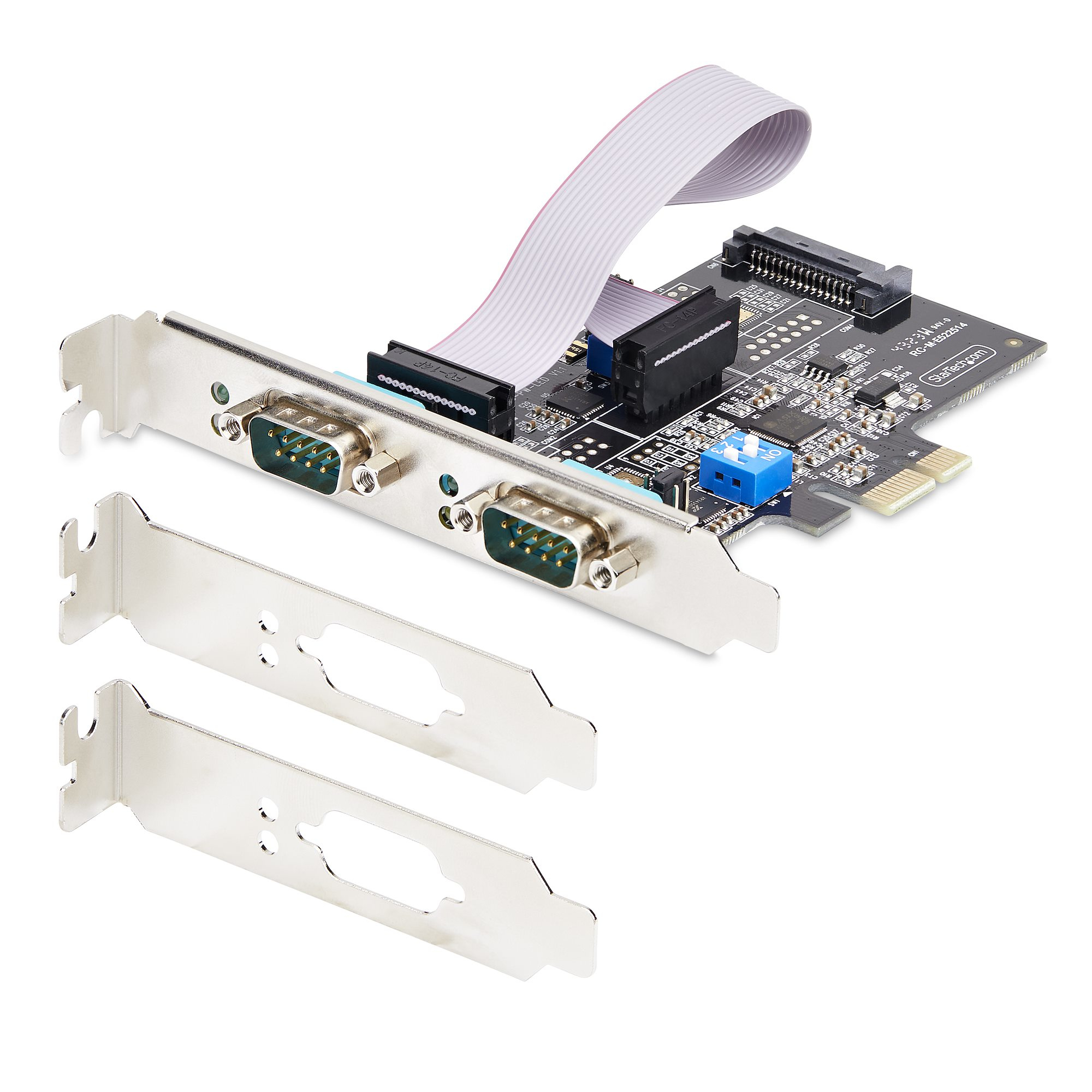

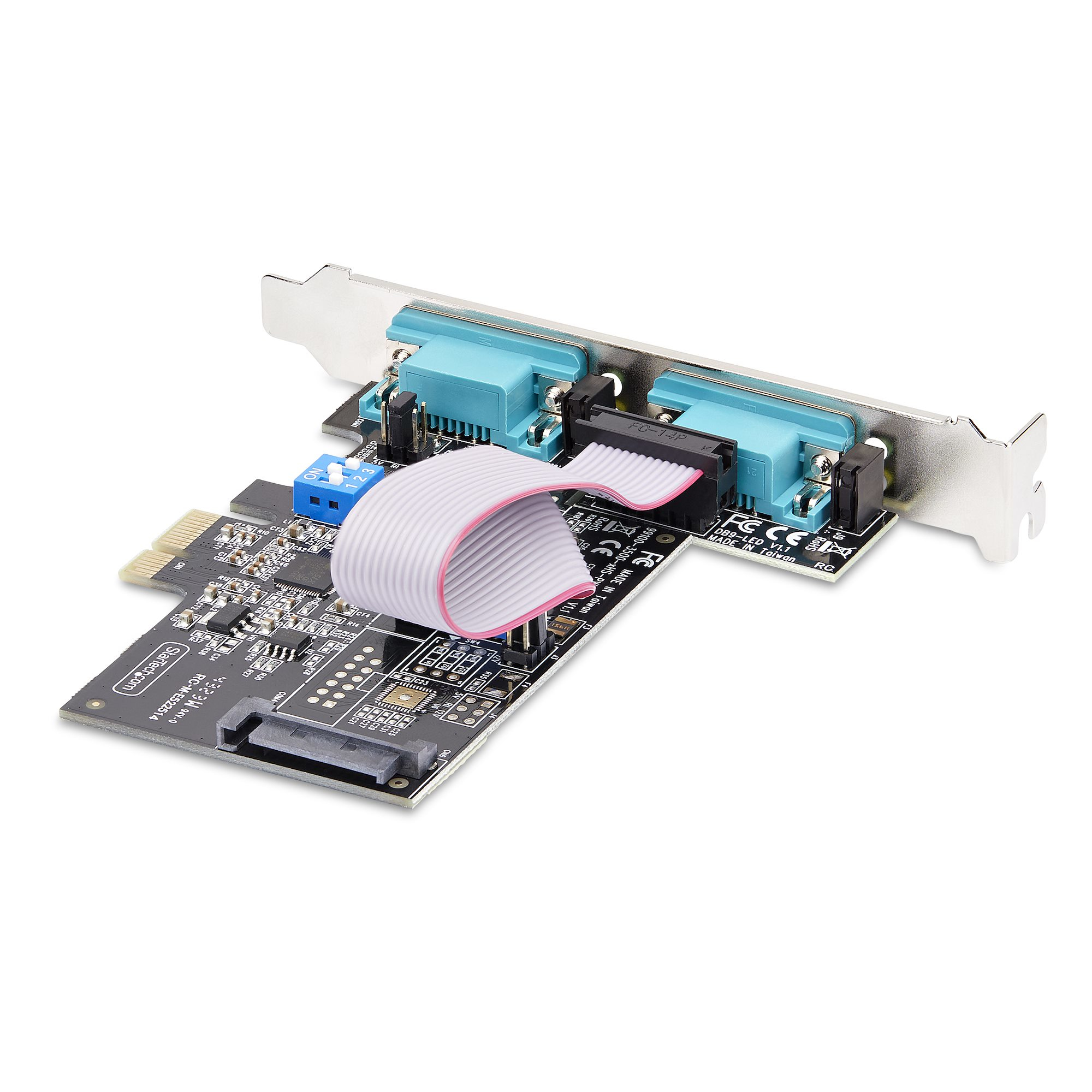

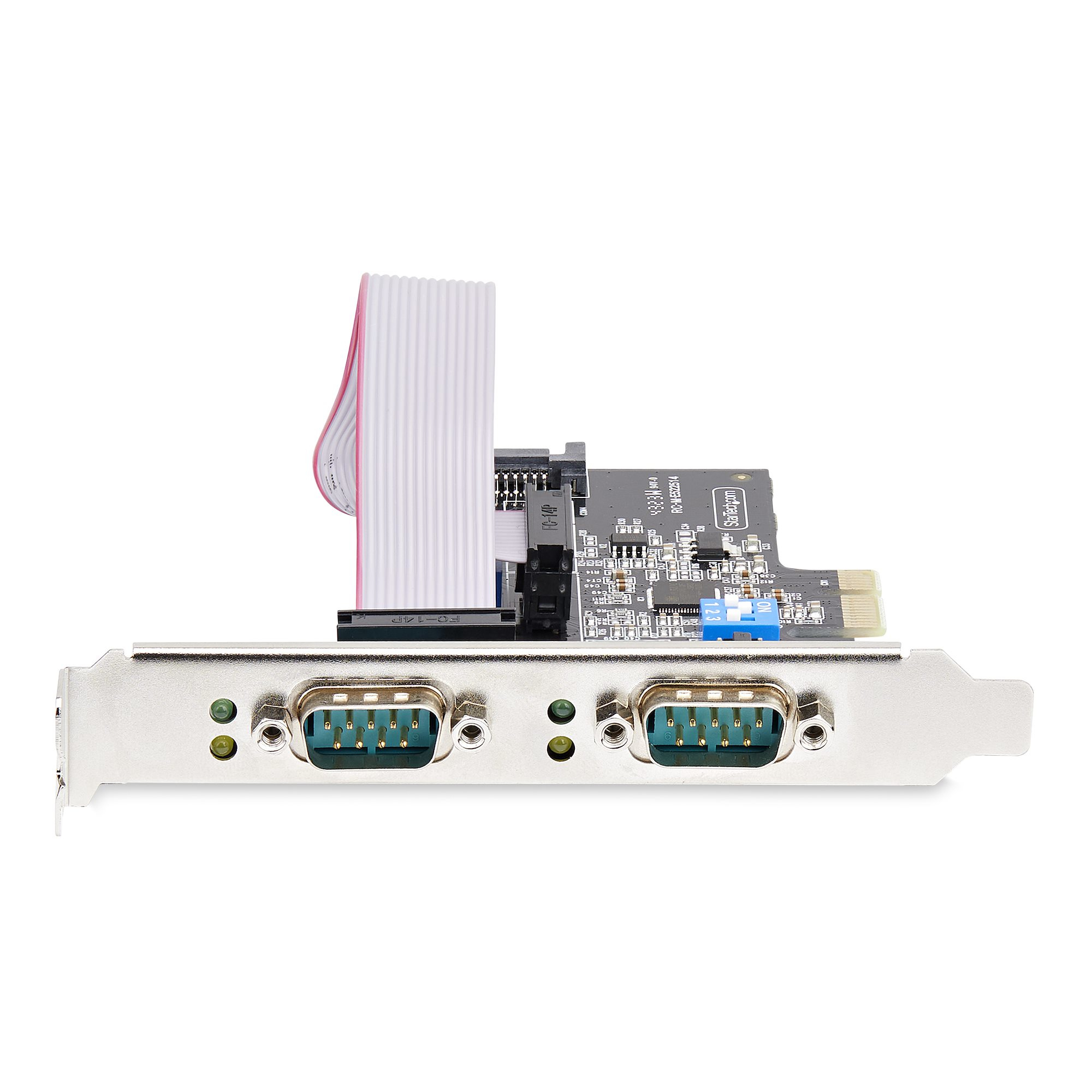

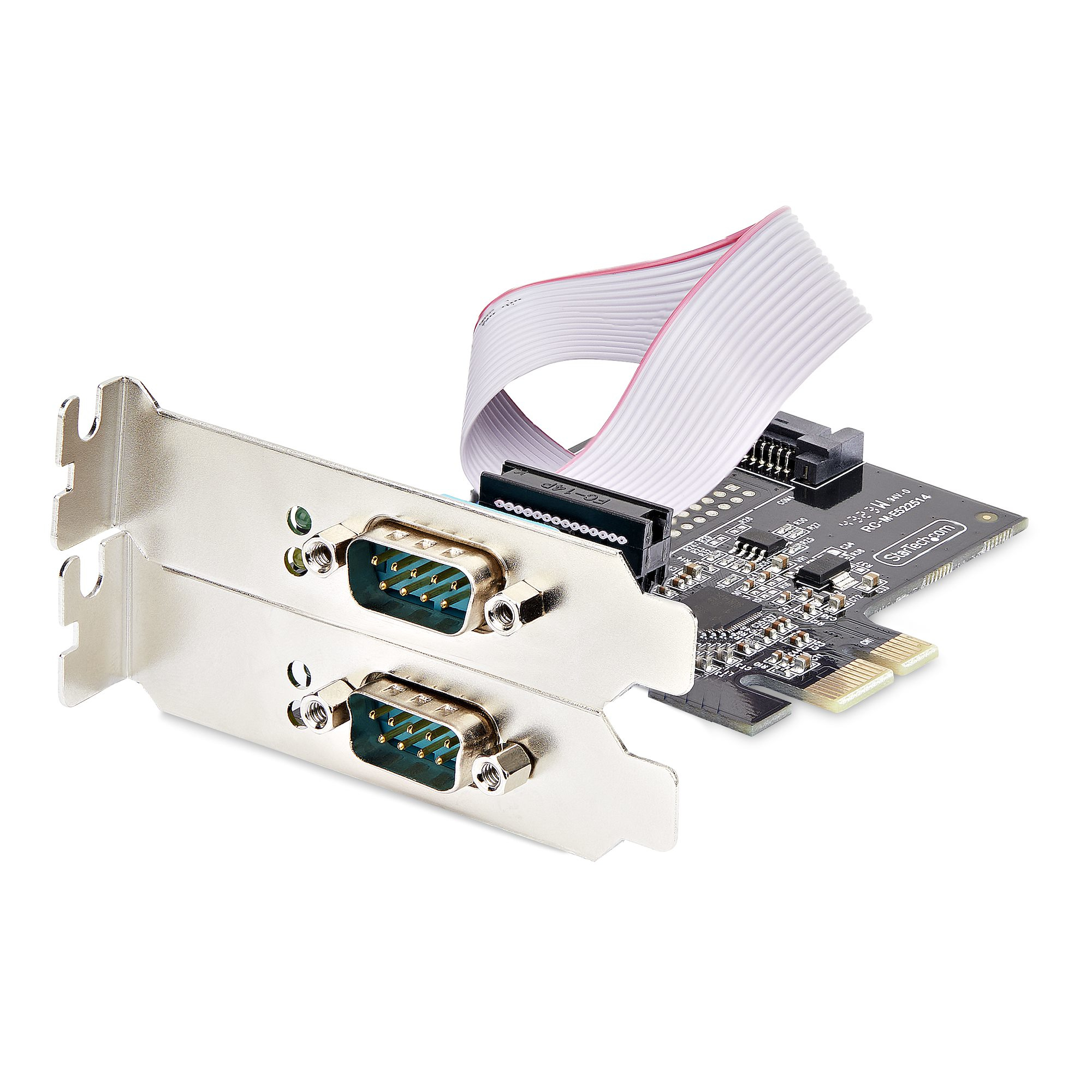

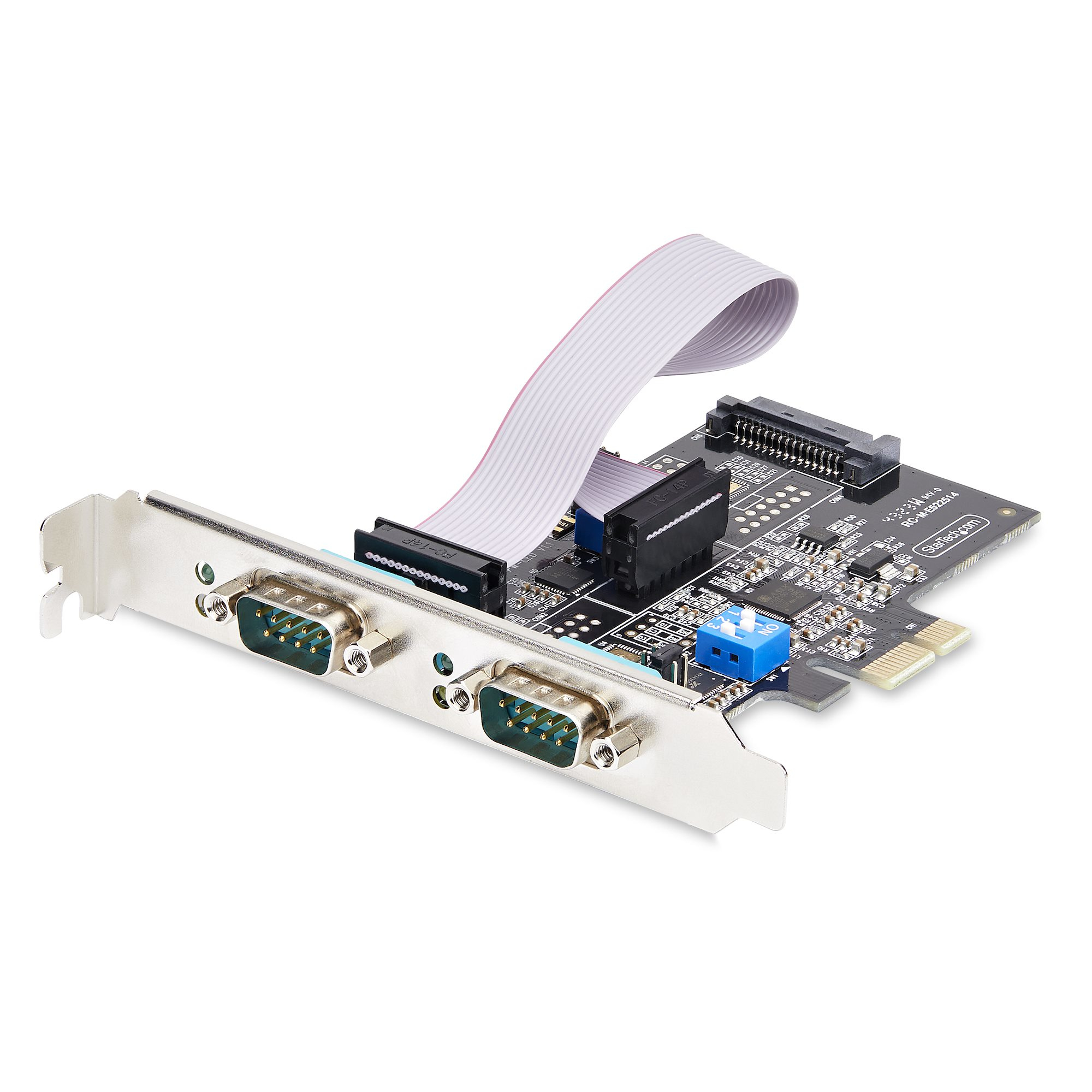

2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA
Model 2S232422485-PC-CARDEAN 065030900270
38 specifications
- Weight57 g
- ColourBlack
- Host interfacePCIe
- InternalYes
- ChipsetASIX - AX99100
- Operating temperature (T-T)0 - 70 °C
Overview
- Weight
- 57 g
- Colour
- Black
- Host interface
- PCIe
- Internal
- Yes
- Chipset
- ASIX - AX99100
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- 2S232422485-PC-CARD
- Part number
- 2S232422485-PC-CARD
- EAN / UPC
- 065030900270
- Also known as
- StarTech.com 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, Windows/Linux, TAA
Specifications
38 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 2.0 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232/422/485 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black |
Features
| Specification | Value |
|---|---|
| Chipset | ASIX - AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterpri |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 102 mm |
| Depth | 105 mm |
| Height | 16 mm |
| Weight | 57 g |
Packaging data
| Specification | Value |
|---|---|
| Cables included | Ribbon cable |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 32 mm |
| Package weight | 147.6 g |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 355 mm |
| Master (outer) case height | 310 mm |
Other features
| Specification | Value |
|---|---|
| Electrostatic Discharge (ESD) protection | 15 kV |
