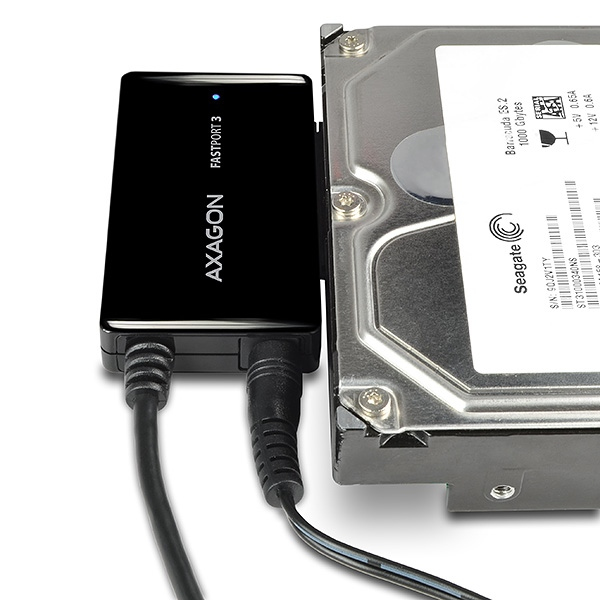

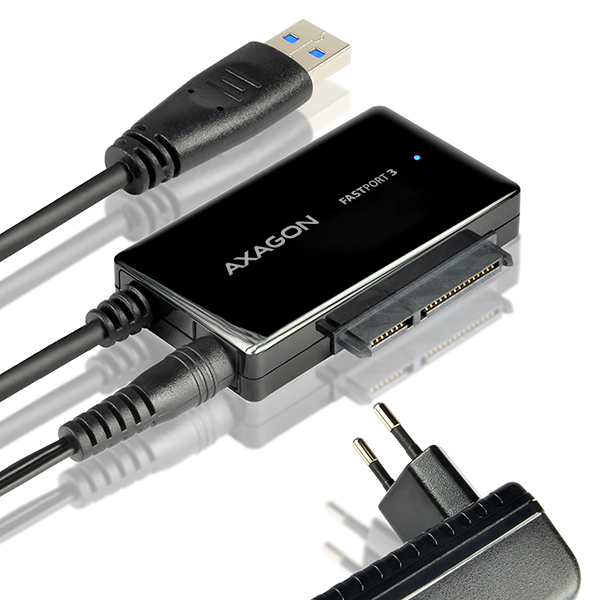

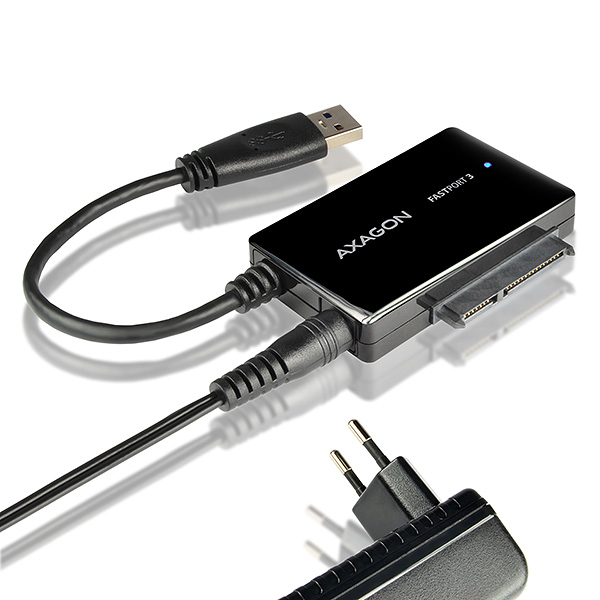

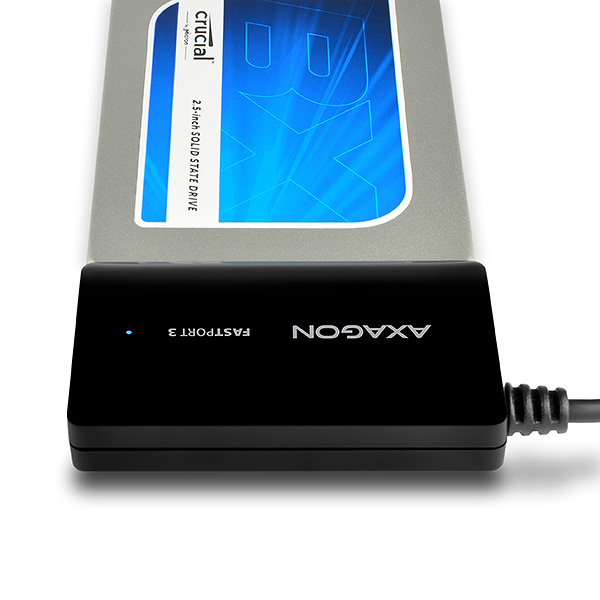

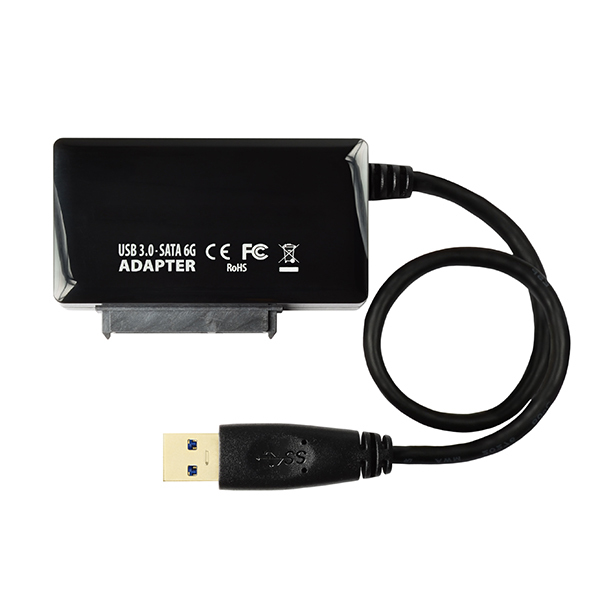

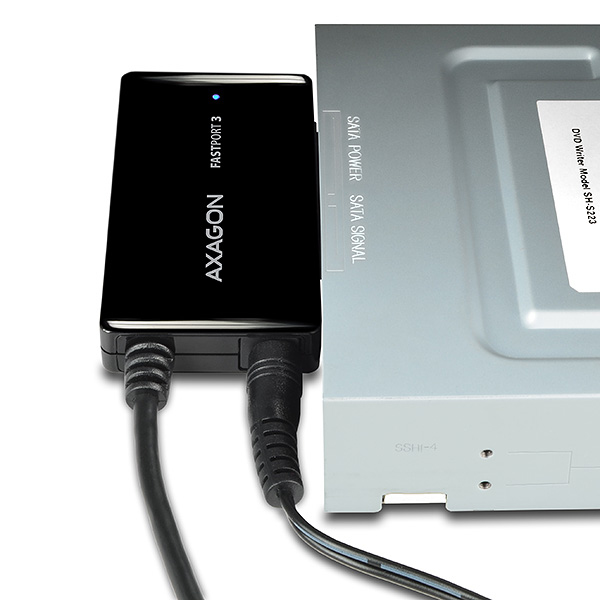

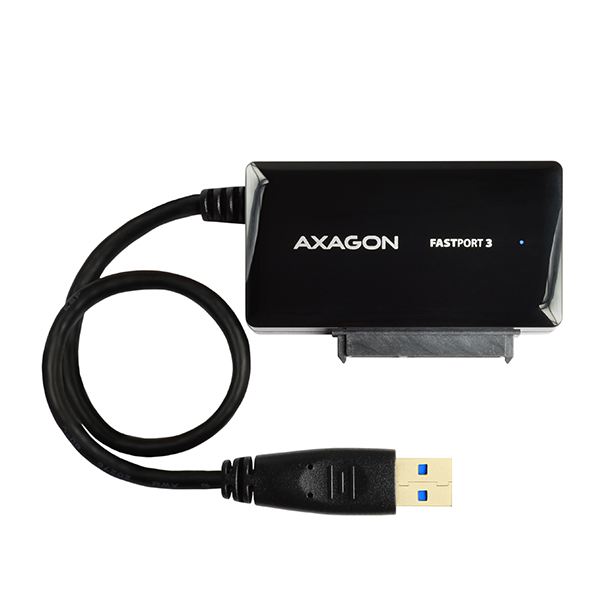

ADSA-FP3 USB 3.0 - SATA
6G adapter for connecting all SATA disks and drives.
Model ADSA-FP3EAN 8595247903440
41 specifications
- Weight39 g
- ColourBlack
- Host interfaceUSB Type-A
- InternalNo
- Data transfer rate (max)5 Gbit/s
- Output voltage12 V
Overview
- Weight
- 39 g
- Colour
- Black
- Host interface
- USB Type-A
- Internal
- No
- Data transfer rate (max)
- 5 Gbit/s
- Output voltage
- 12 V
- Brand
- Axagon
- Category
- Interface Cards/Adapters
- Model
- ADSA-FP3
- Part number
- ADSA-FP3
- EAN / UPC
- 8595247903440
- Also known as
- Axagon ADSA-FP3 USB 3.0 - SATA 6G adapter for connecting all SATA disks and drives.
Specifications
41 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | USB Type-A |
| Output interface | SATA |
| Host interface gender | Male |
| NVMe | No |
| Internal SATA ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black |
| Purpose | PC / Notebook / Tablet |
| LED indicators | Yes |
| Hot-Plug support | Yes |
| Easy to install | Yes |
| Country of origin | China |
| Certification | CE, RoHS |
Features
| Specification | Value |
|---|---|
| Data transfer rate (max) | 5 Gbit/s |
| S.M.A.R.T. support | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 12 V |

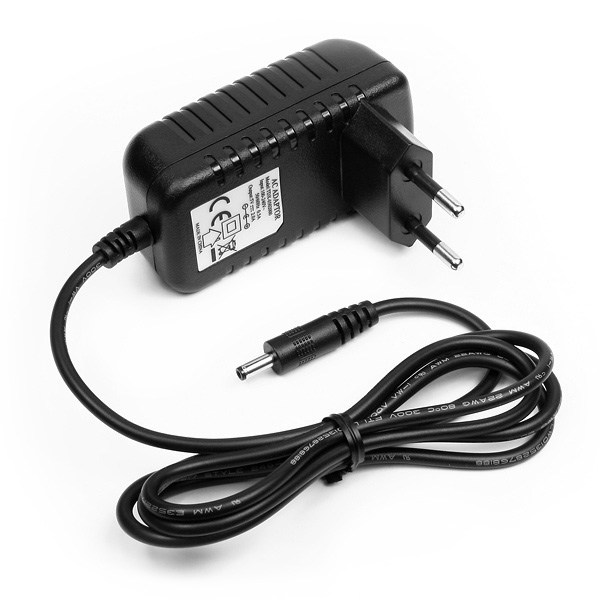

| External power adapter | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
| Other operating systems supported | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 71 mm |
| Depth | 46 mm |
| Height | 14.3 mm |
| Weight | 39 g |

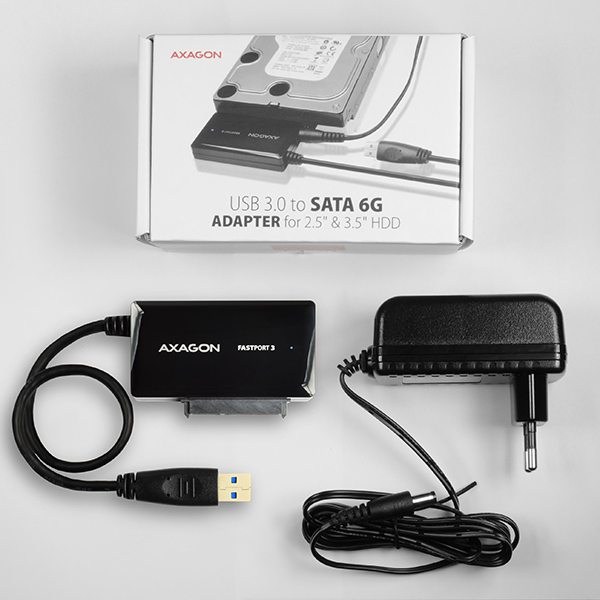

Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Power supply included | Yes |
| Manual | Yes |
| Package width | 80 mm |
| Package depth | 130 mm |
| Package height | 62 mm |
| Package weight | 212 g |
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 5 Gbit/s |
| Cable length | 0.22 m |
| Compatible operating systems | MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above |
