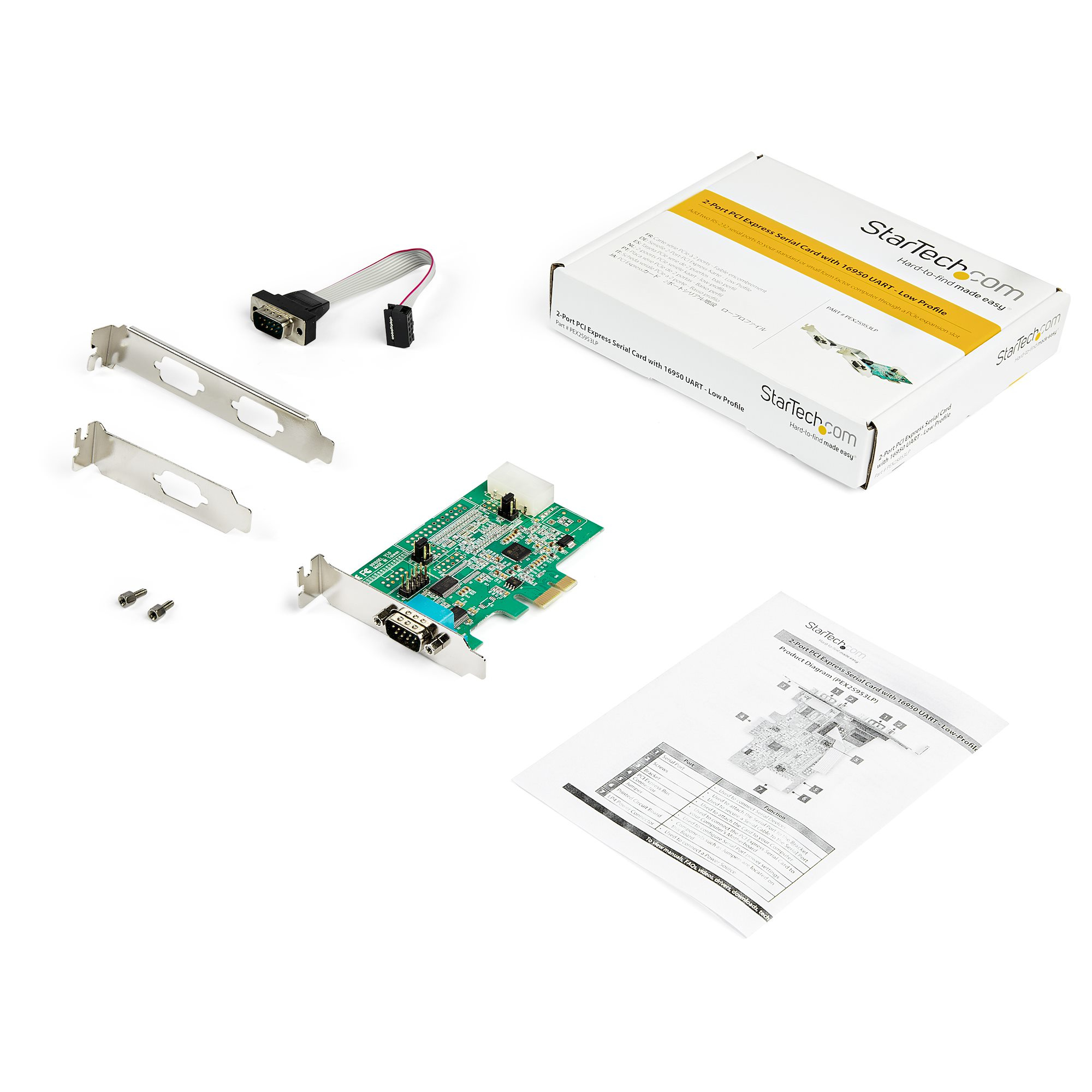

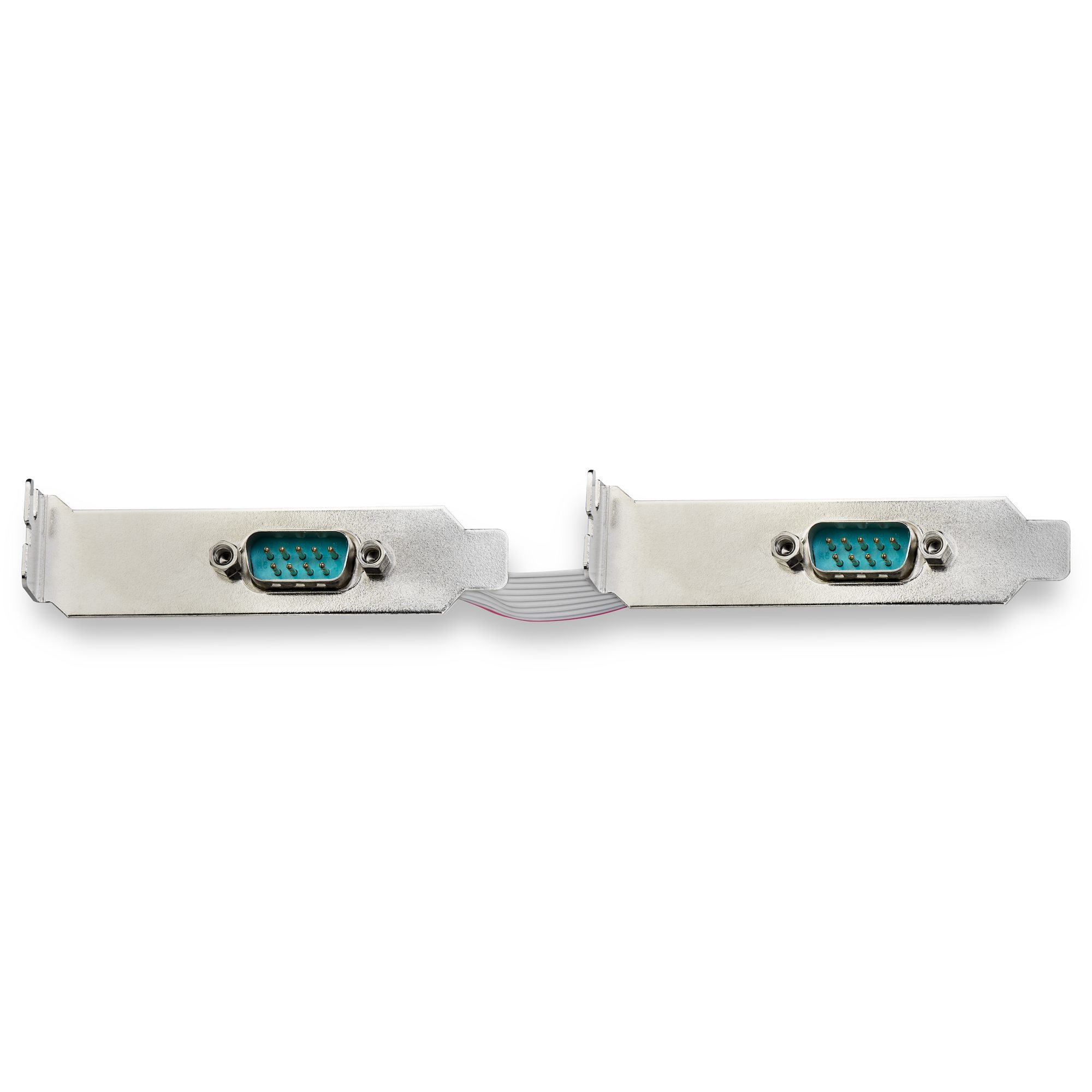

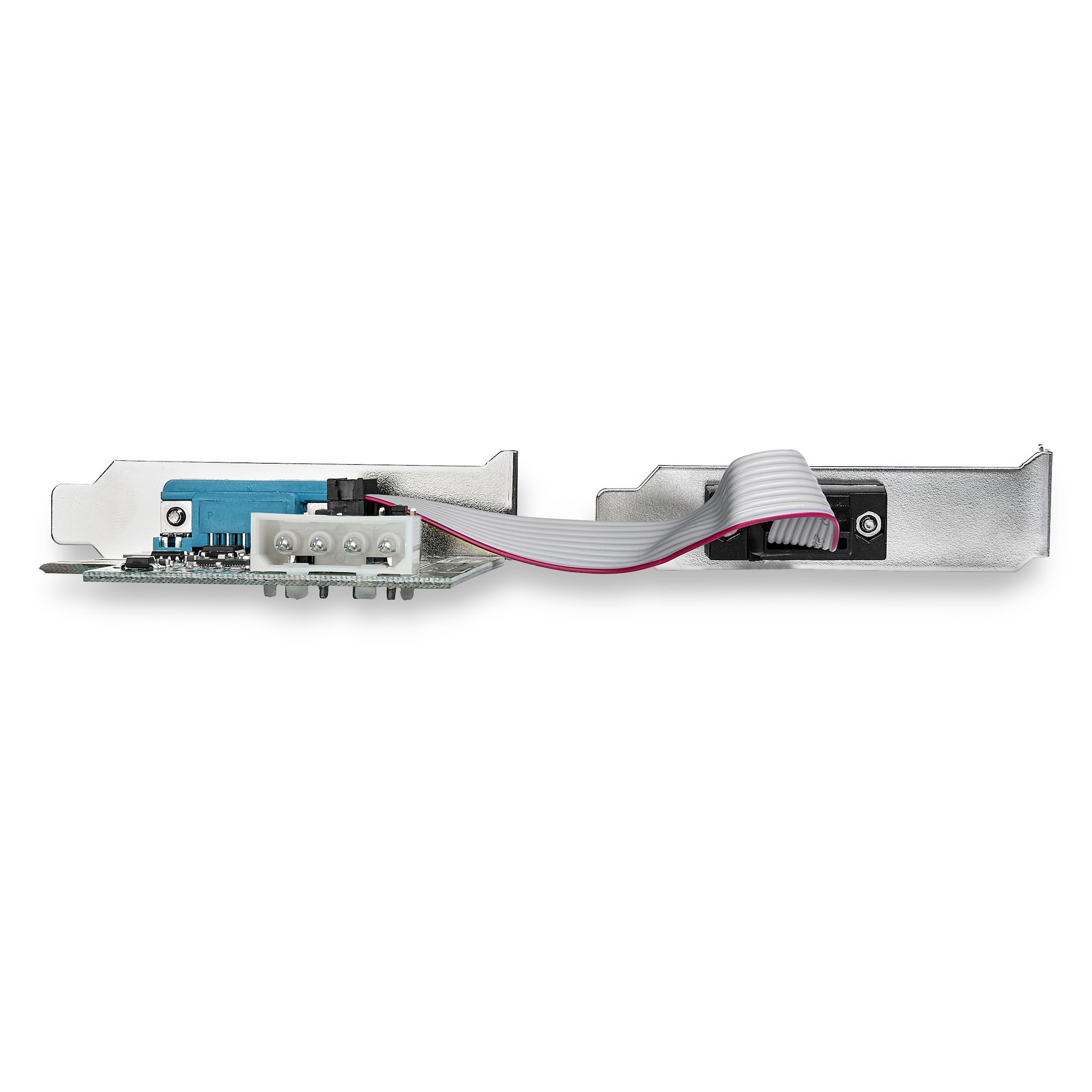

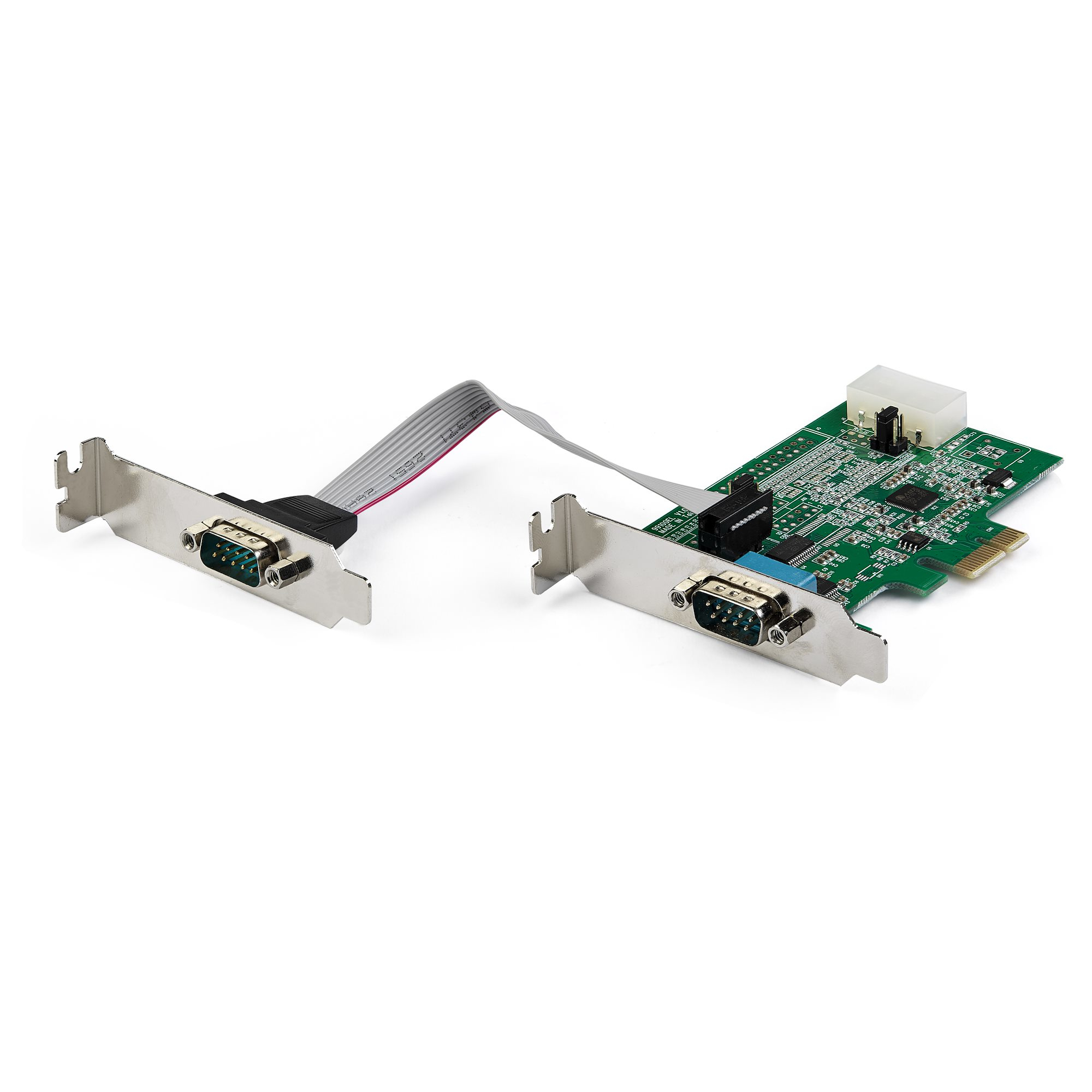

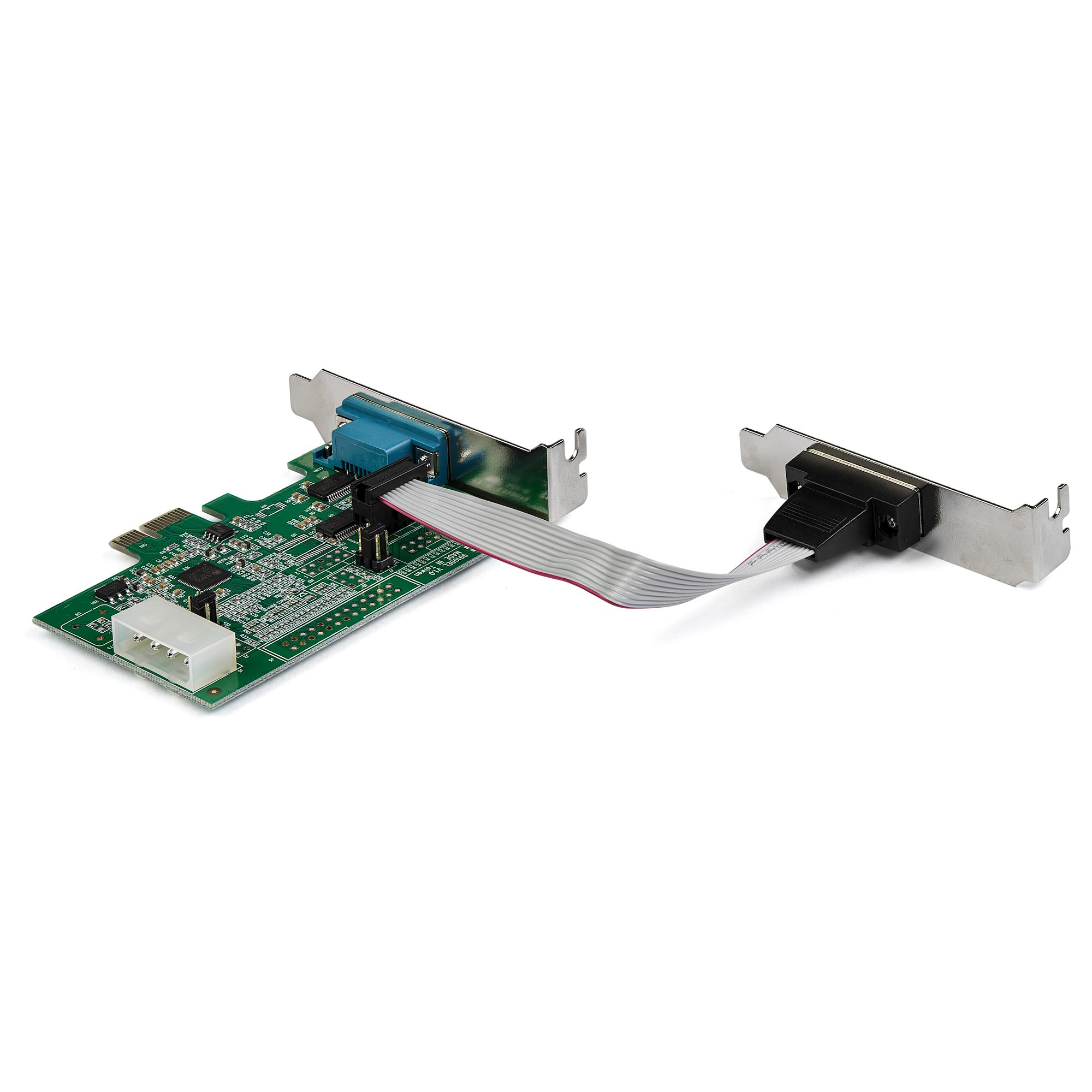

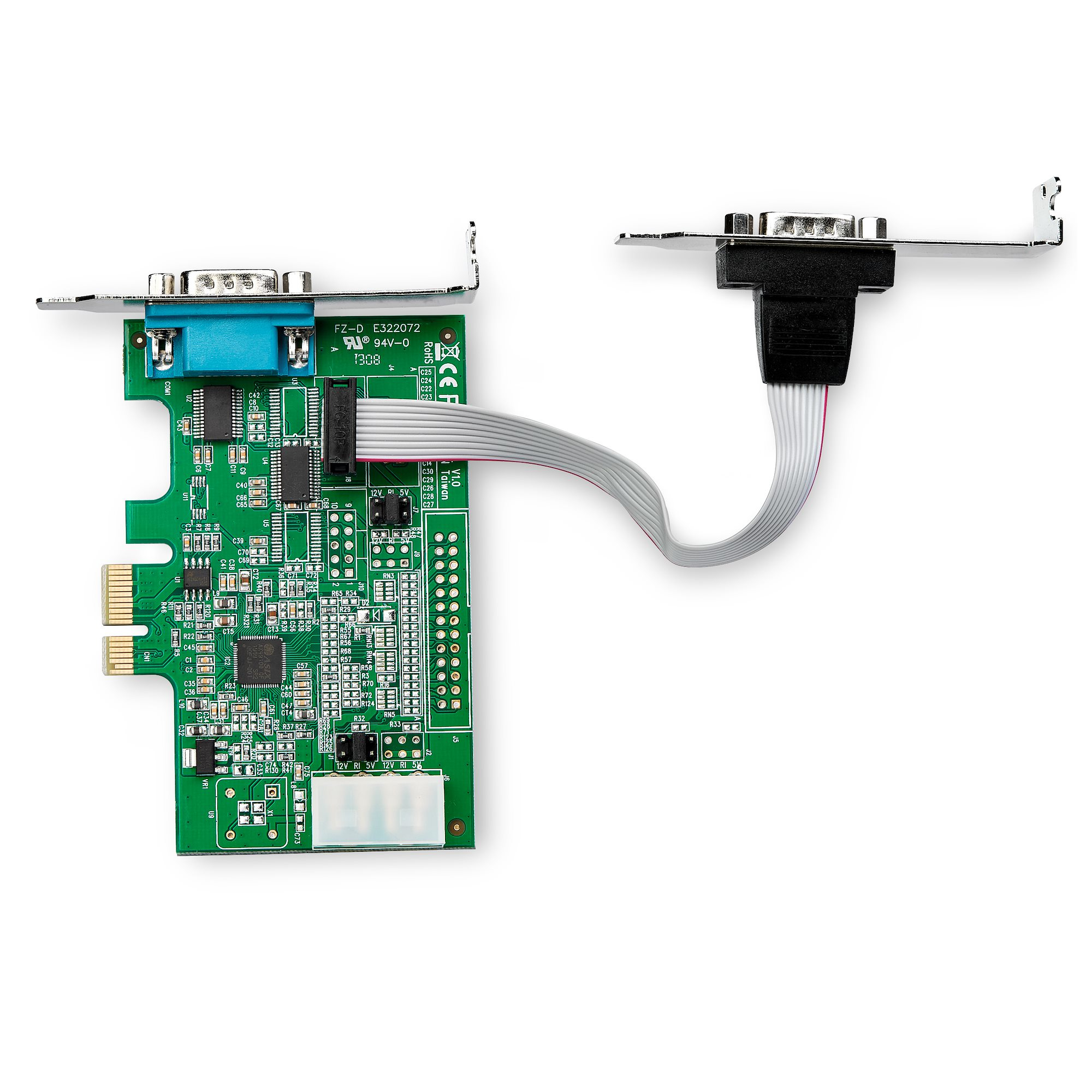

2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Car
Model PEX2S953LPEAN 065030881166
39 specifications
- Weight55.6 g
- Host interfaceMini PCI Express
- InternalYes
- ChipsetAsix AX99100
- Operating temperature (T-T)-10 - 80 °C
- Compliance certificatesRoHS
Overview
- Weight
- 55.6 g
- Host interface
- Mini PCI Express
- Internal
- Yes
- Chipset
- Asix AX99100
- Operating temperature (T-T)
- -10 - 80 °C
- Compliance certificates
- RoHS
- Brand
- StarTech.com
- Category
- Interface Cards/Adapters
- Model
- PEX2S953LP
- Part number
- PEX2S953LP
- EAN / UPC
- 065030881166
- Also known as
- StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Car
Specifications
39 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Host interface | Mini PCI Express |
| Output interface | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Mean time between failures (MTBF) | 222366 h |
| Certification | CE, FCC |
Features
| Specification | Value |
|---|---|
| Chipset | Asix AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 67 mm |
| Depth | 98 mm |
| Height | 18 mm |
| Weight | 55.6 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity | 1 |
| Mounting brackets included | Yes |
| Manual | Yes |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 33 mm |
| Package weight | 146.4 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 693 mm |
| Master (outer) case length | 360 mm |
| Master (outer) case height | 338 mm |
