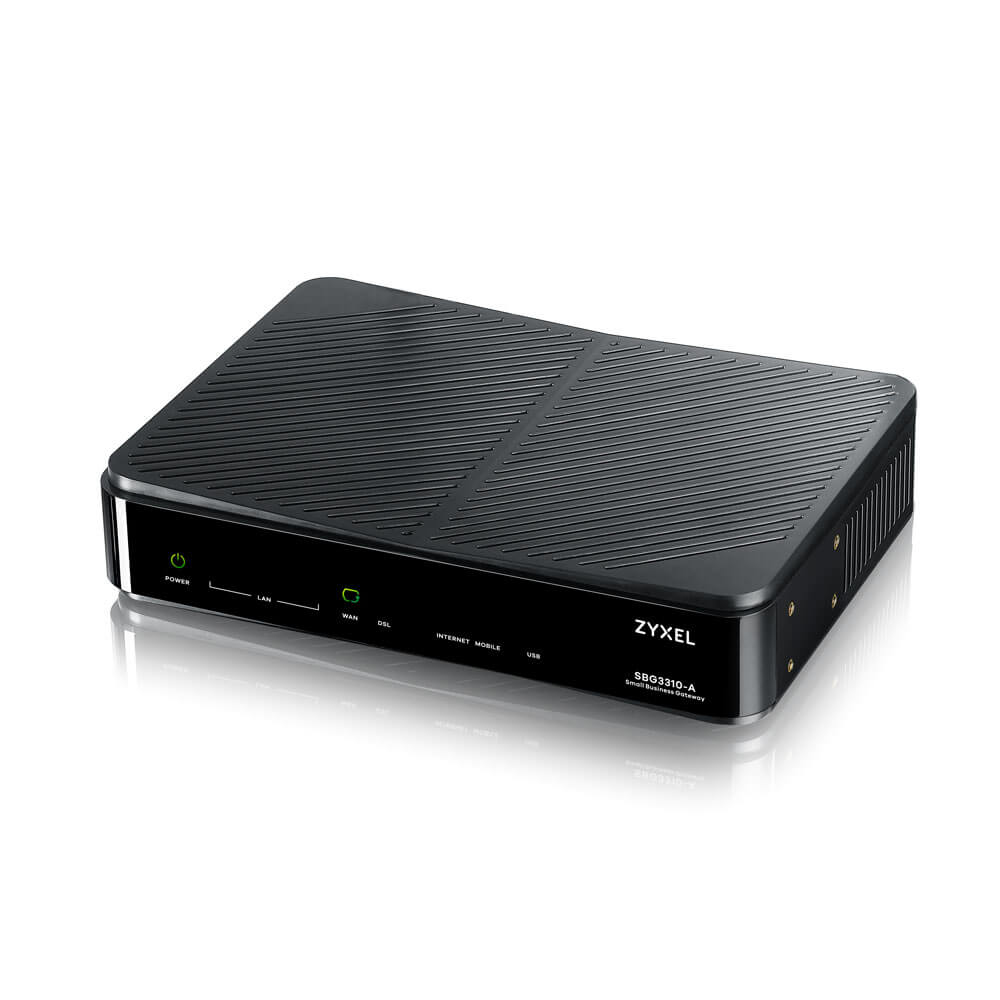

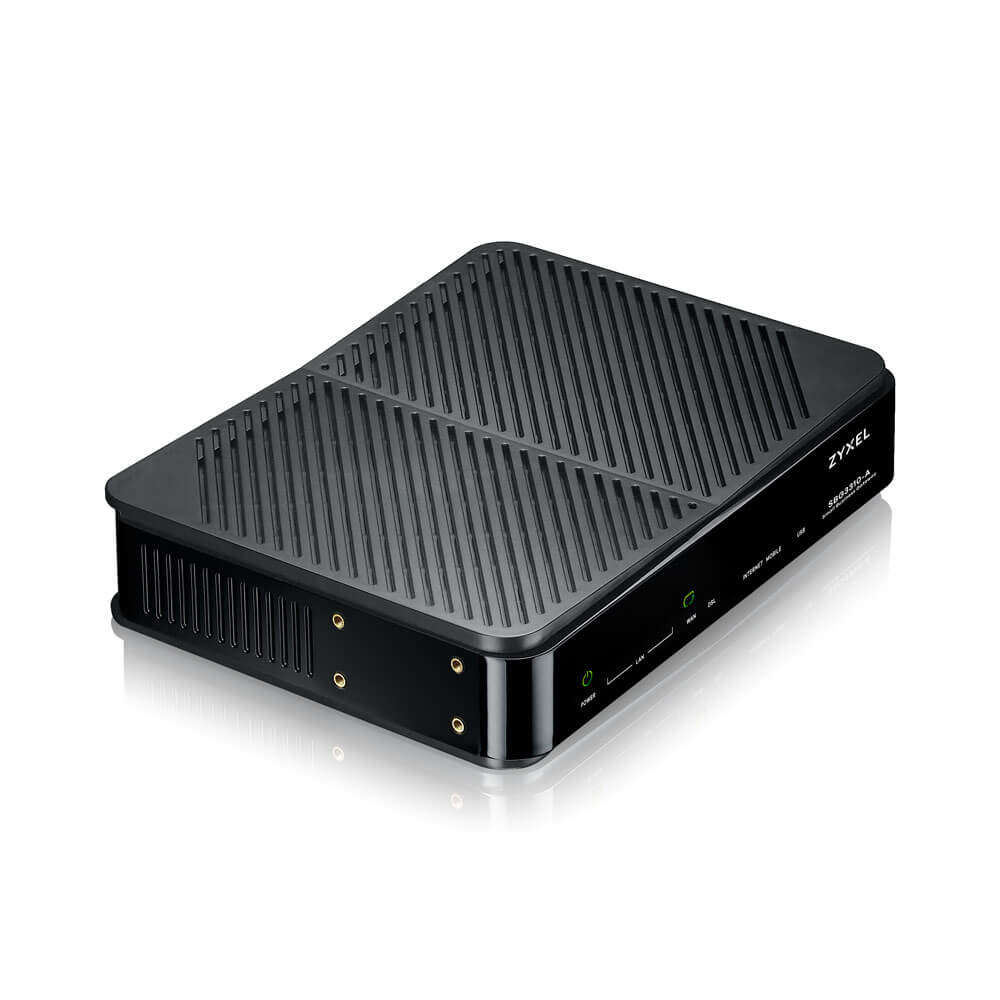

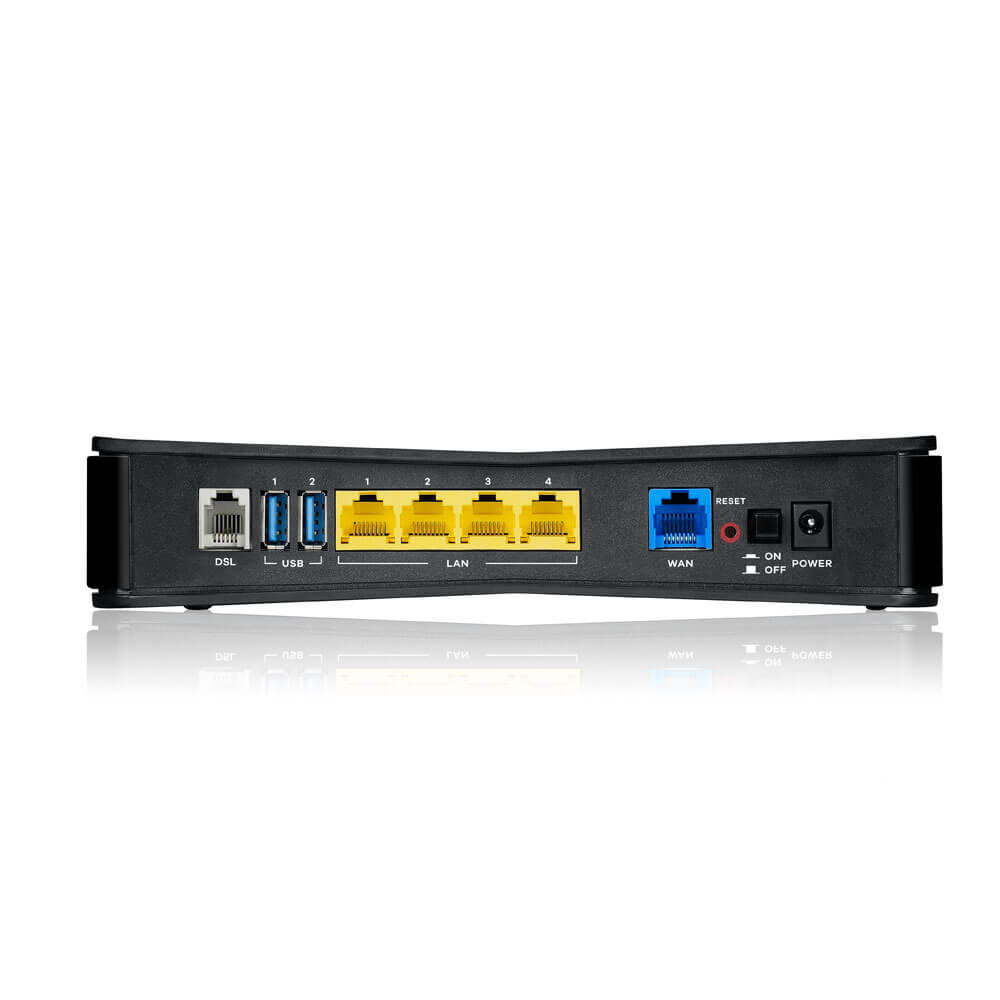

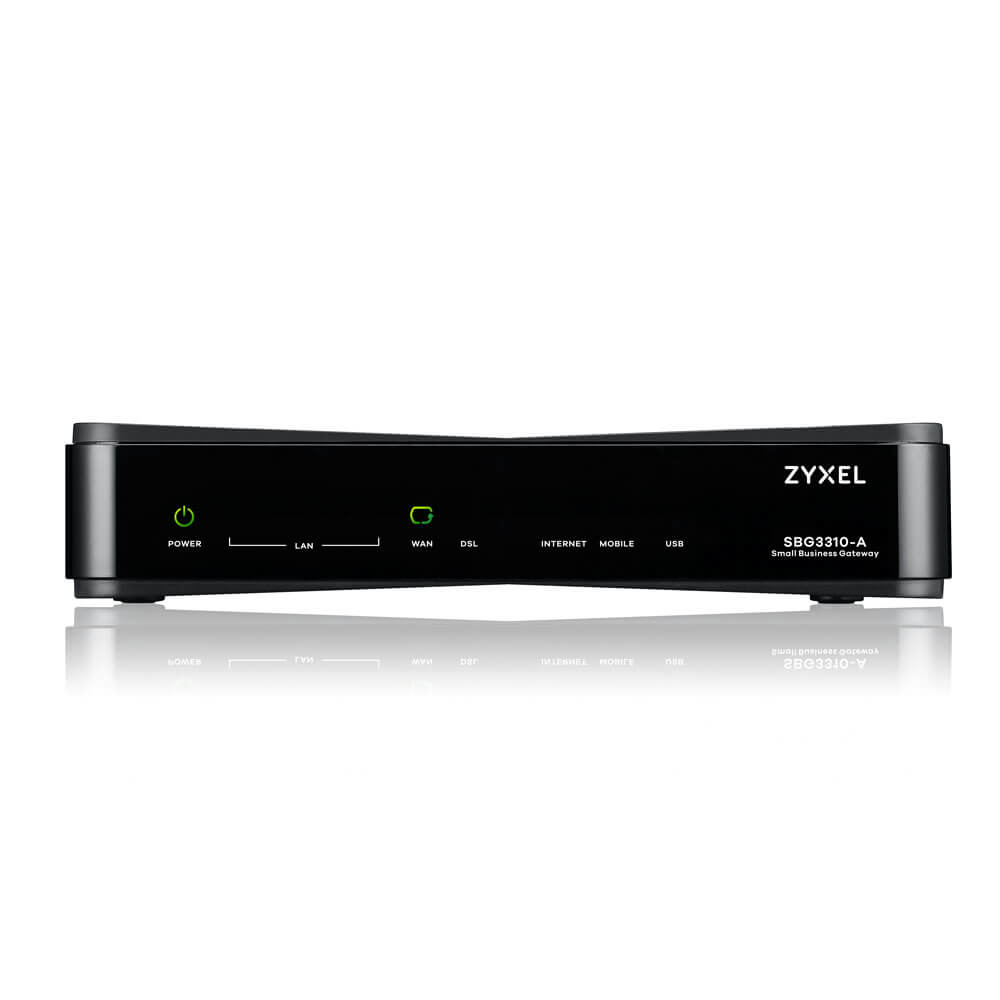

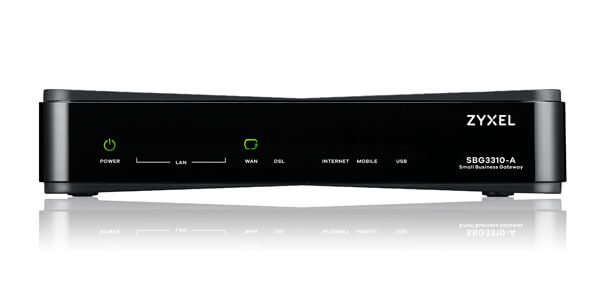

SBG3310-A gateway/controller
Model SBG3310-APart no. SBG3310-A-ZZ0101FEAN 4718937601257
26 specifications
- Weight495 g
- ColourBlack
- Firewall securityYes
- USB 2.0 ports quantity2
- Input voltage110 - 240 V
- Depth115 mm
Overview
- Weight
- 495 g
- Colour
- Black
- Firewall security
- Yes
- USB 2.0 ports quantity
- 2
- Input voltage
- 110 - 240 V
- Depth
- 115 mm
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- SBG3310-A
- Part number
- SBG3310-A-ZZ0101F
- EAN / UPC
- 4718937601257
- Also known as
- Zyxel SBG3310-A gateway/controller
Specifications
26 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Network
| Specification | Value |
|---|---|
| VPN support | IPSec, L2TP over IPSec, PPTP, L2TP |
Security
| Specification | Value |
|---|---|
| Firewall security | Yes |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 110 - 240 V |
| Input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 115 mm |
| Height | 33 mm |
| Width | 210 mm |
| Weight | 495 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 189 mm |
| Package height | 83 mm |
| Package width | 288 mm |
| Package weight | 1.13 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 20 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15B (Class B) FCC Part 68 CE EMC (Class B) |
| Safety | CE LVD |
