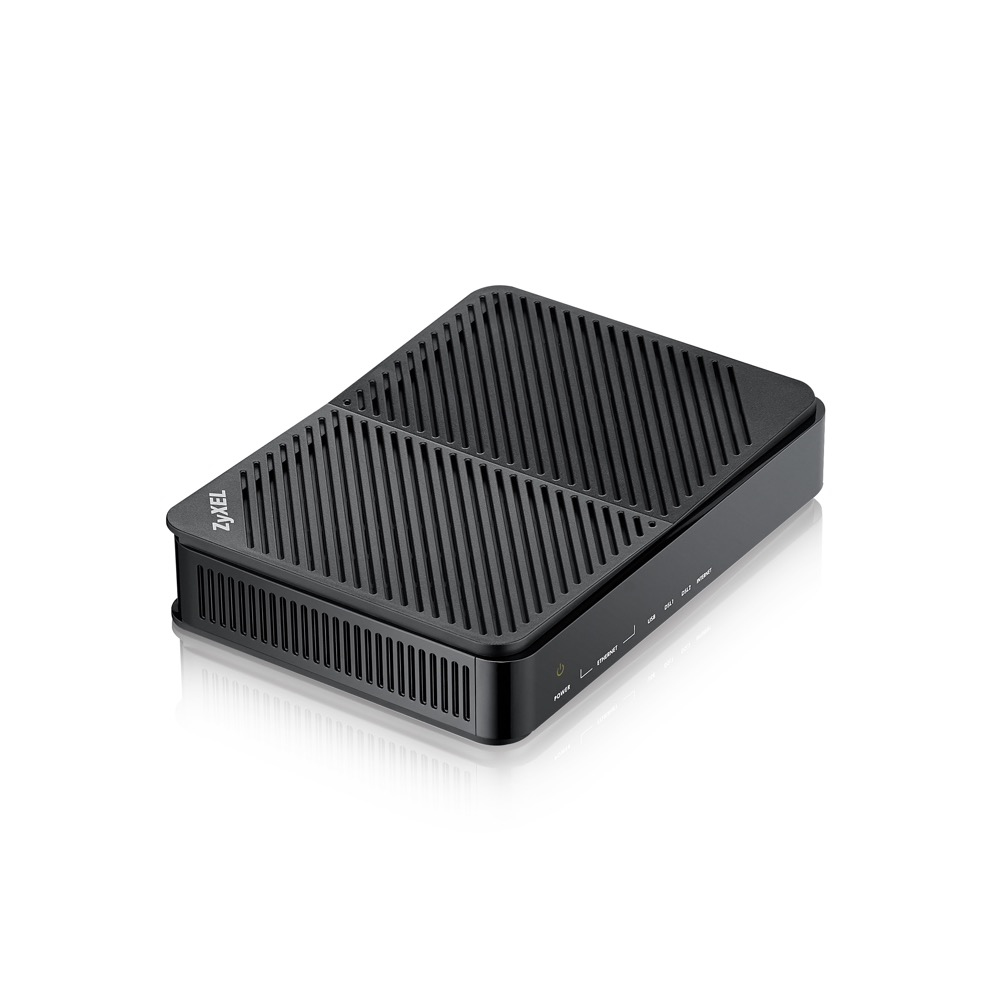

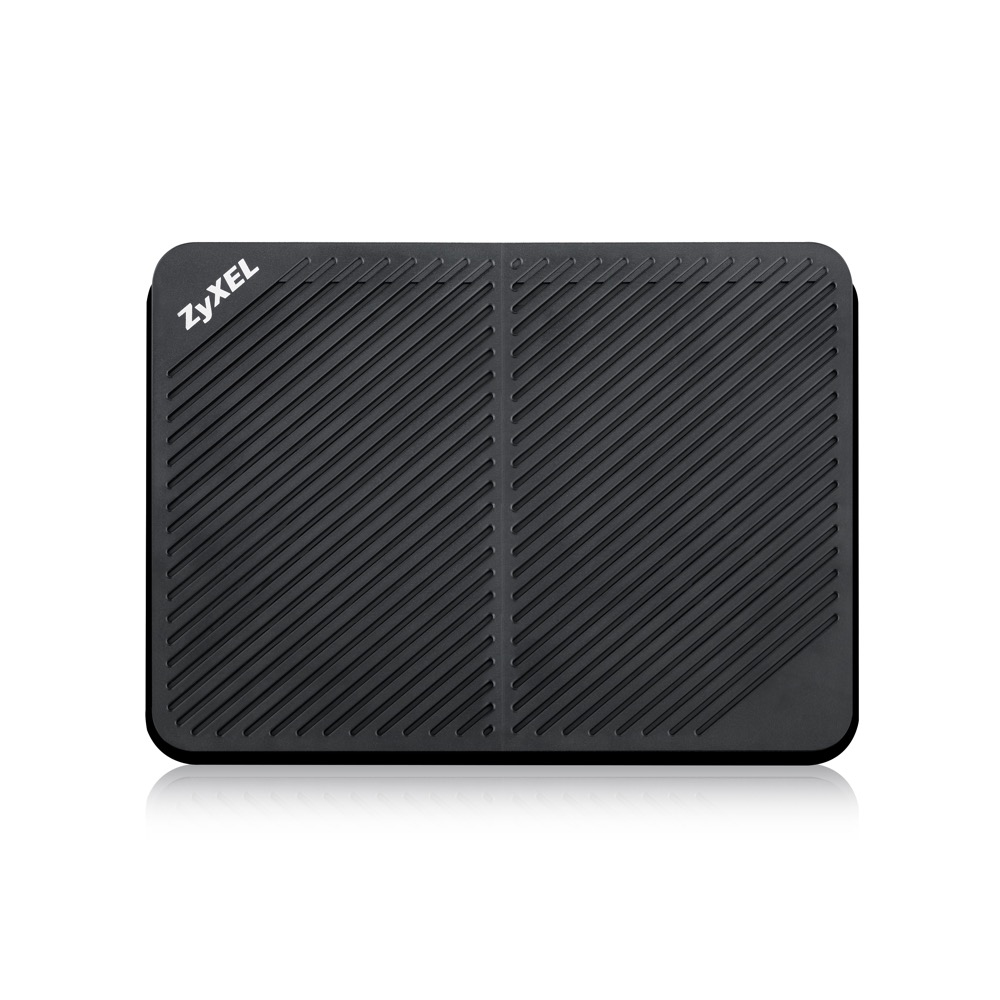

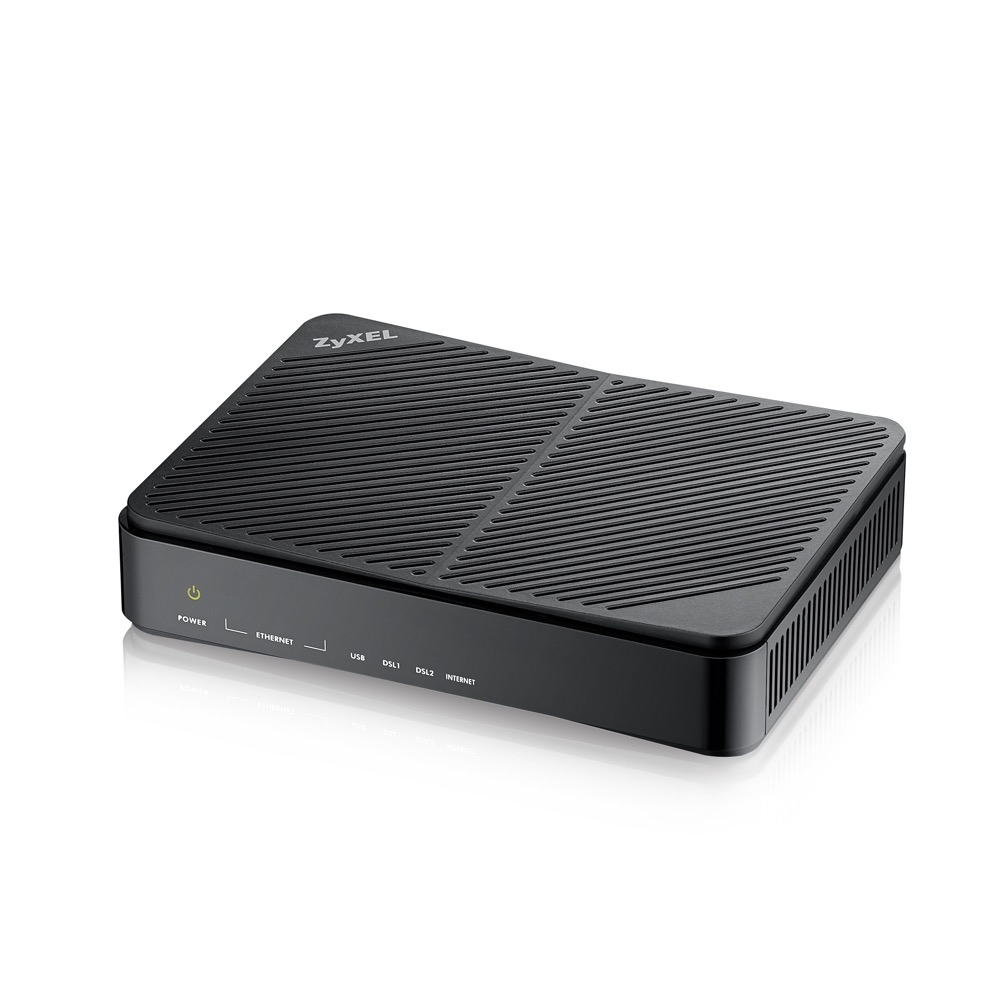

P-793H v3
Model P-793H v3Part no. P-793HV3-ZZ01V1FEAN 4718937590308
35 specifications
- Weight450 g
- ColourBlack
- DHCP clientYes
- Ethernet LAN data rates10,100 Mbit/s
- Console portUSB
- Power consumption (typical)10 W
Overview
- Weight
- 450 g
- Colour
- Black
- DHCP client
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Console port
- USB
- Power consumption (typical)
- 10 W
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- P-793H v3
- Part number
- P-793HV3-ZZ01V1F
- EAN / UPC
- 4718937590308
- Also known as
- Zyxel P-793H v3 gateway/controller 10, 100 Mbit/s
Specifications
35 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP, UDP, ICMP, IGMP v1 and v2, ARP, RIP v1, RIP v2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, AES, DES, IPSec, MD5, SHA-1 |
| ICMP attack prevention | Yes |
| Authentication method | MD5/SHA1 |
| DoS attack prevention | Yes |
| Firewall security | Yes |
| VLAN support | Yes |

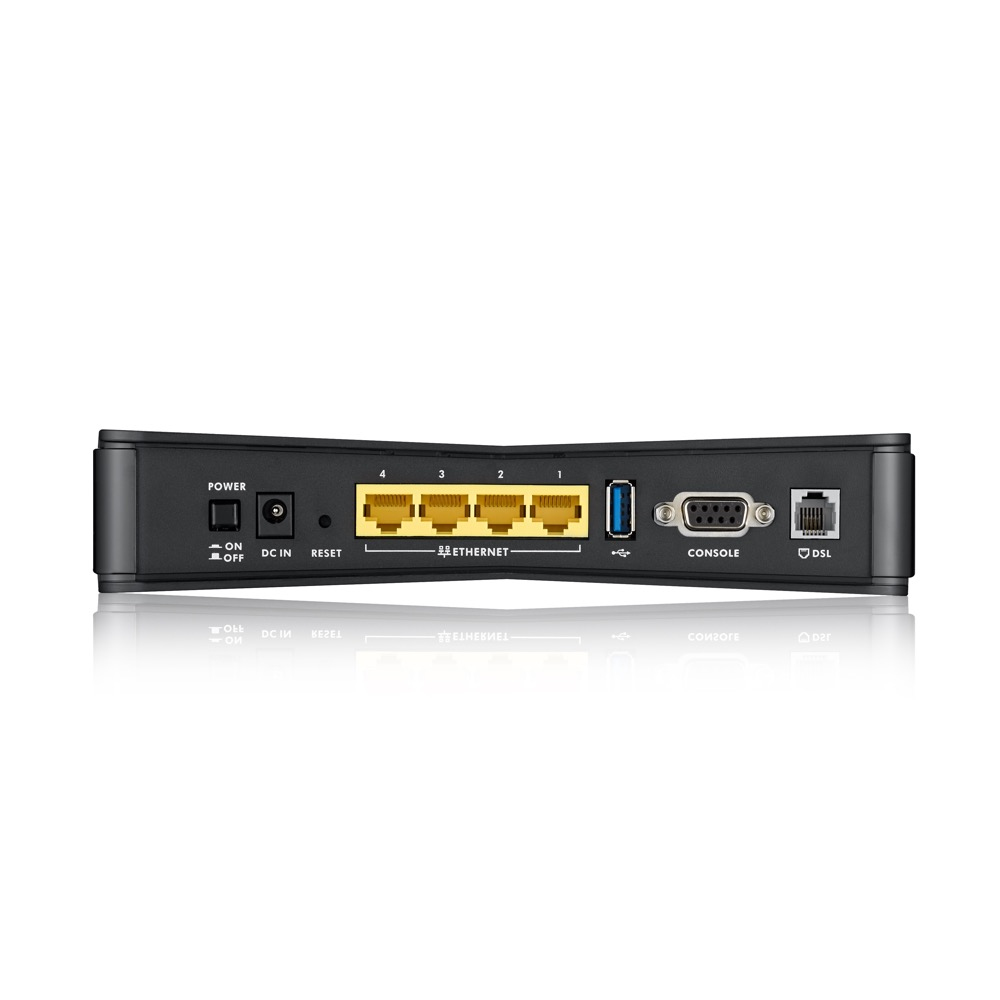

Ports & interfaces
| Specification | Value |
|---|---|
| Console port | USB |
| Number of console ports | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| RJ-11 ports quantity | 1 |
| WAN connection | ADSL (RJ-11) |
Management features
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 10 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 154 mm |
| Height | 40 mm |
| Width | 211 mm |
| Weight | 450 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 165 mm |
| Package height | 57 mm |
| Package width | 363 mm |
| Package weight | 880 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
