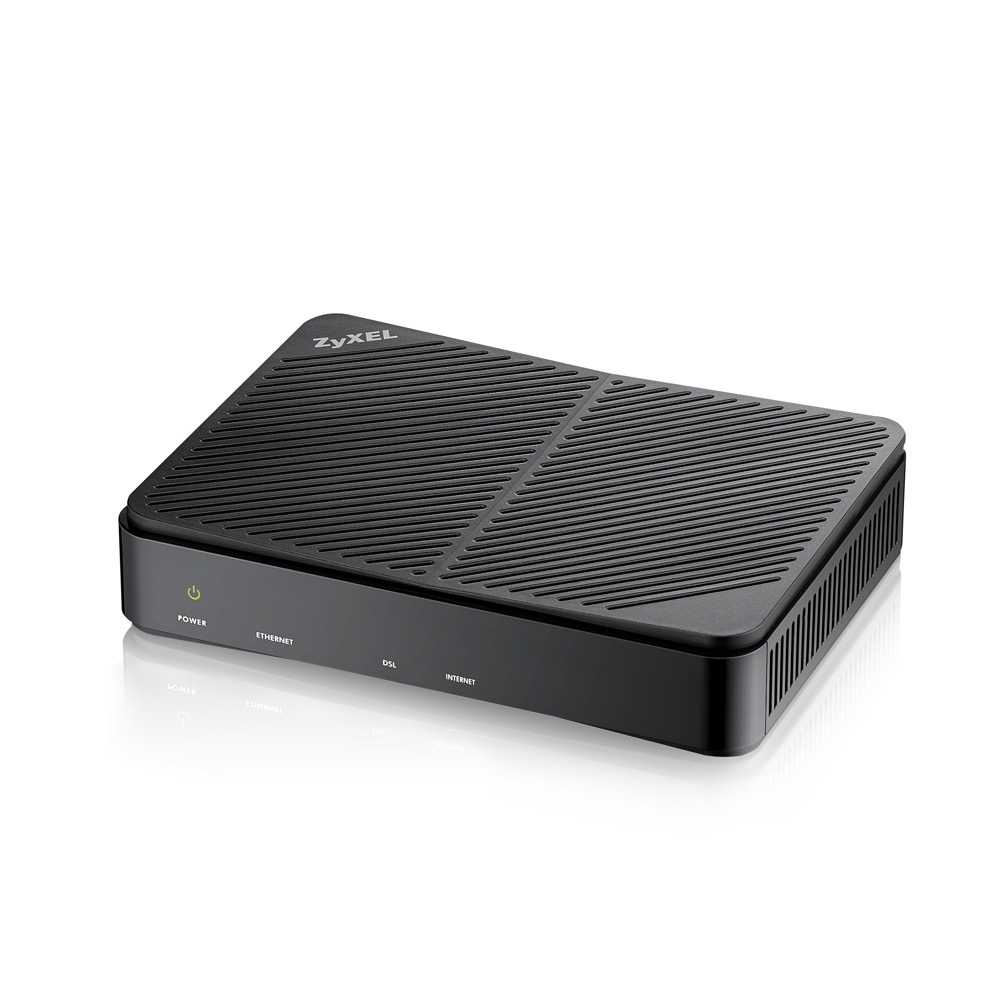

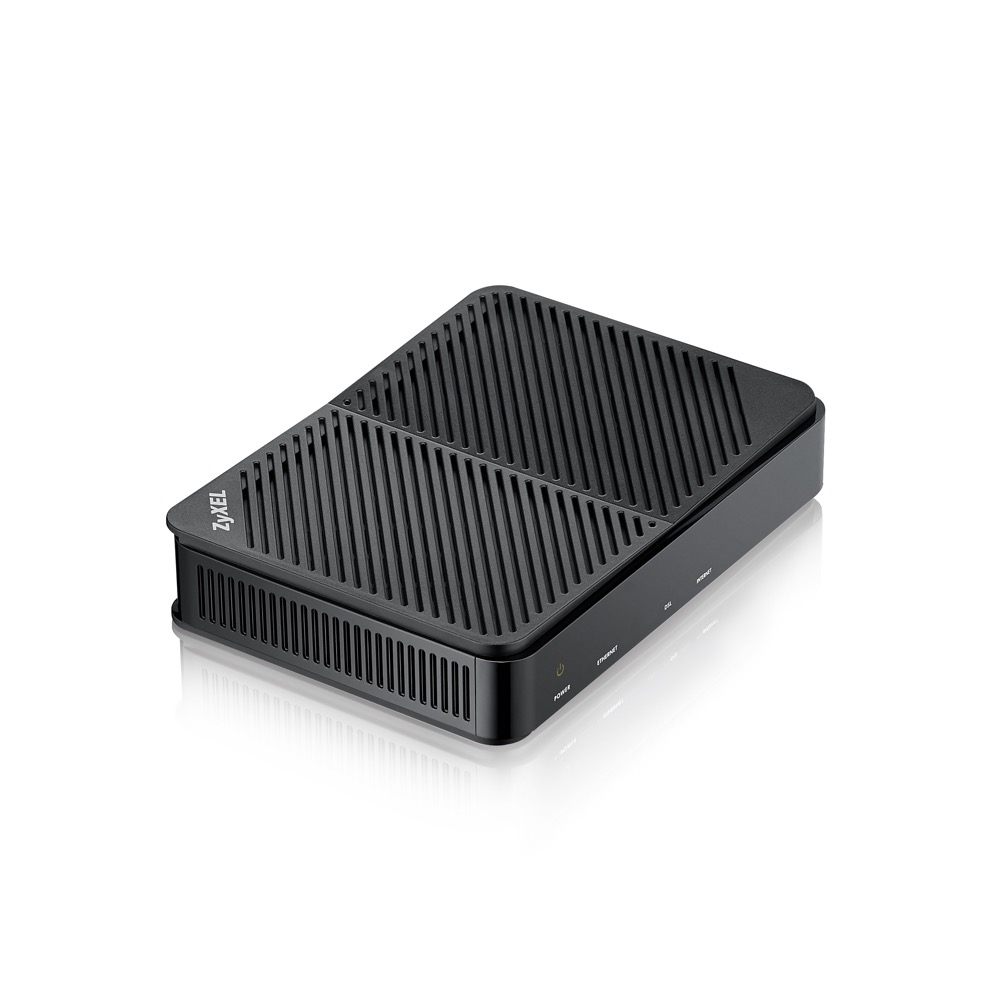

P-791R v3
Model P-791R v3Part no. P-791RV3-ZZ01V1FEAN 4718937590247
26 specifications
- Weight420 g
- ColourBlack
- DHCP clientYes
- Ethernet LAN data rates10,100 Mbit/s
- USB 2.0 ports quantity1
- Power consumption (typical)3.5 W
Overview
- Weight
- 420 g
- Colour
- Black
- DHCP client
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- USB 2.0 ports quantity
- 1
- Power consumption (typical)
- 3.5 W
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- P-791R v3
- Part number
- P-791RV3-ZZ01V1F
- EAN / UPC
- 4718937590247
- Also known as
- Zyxel P-791R v3 gateway/controller 10, 100 Mbit/s
Specifications
26 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols | TCP, UDP, ICMP, IGMP v1 and v2, ARP, RIP v1, RIP v2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
Security
| Specification | Value |
|---|---|
| VLAN support | Yes |

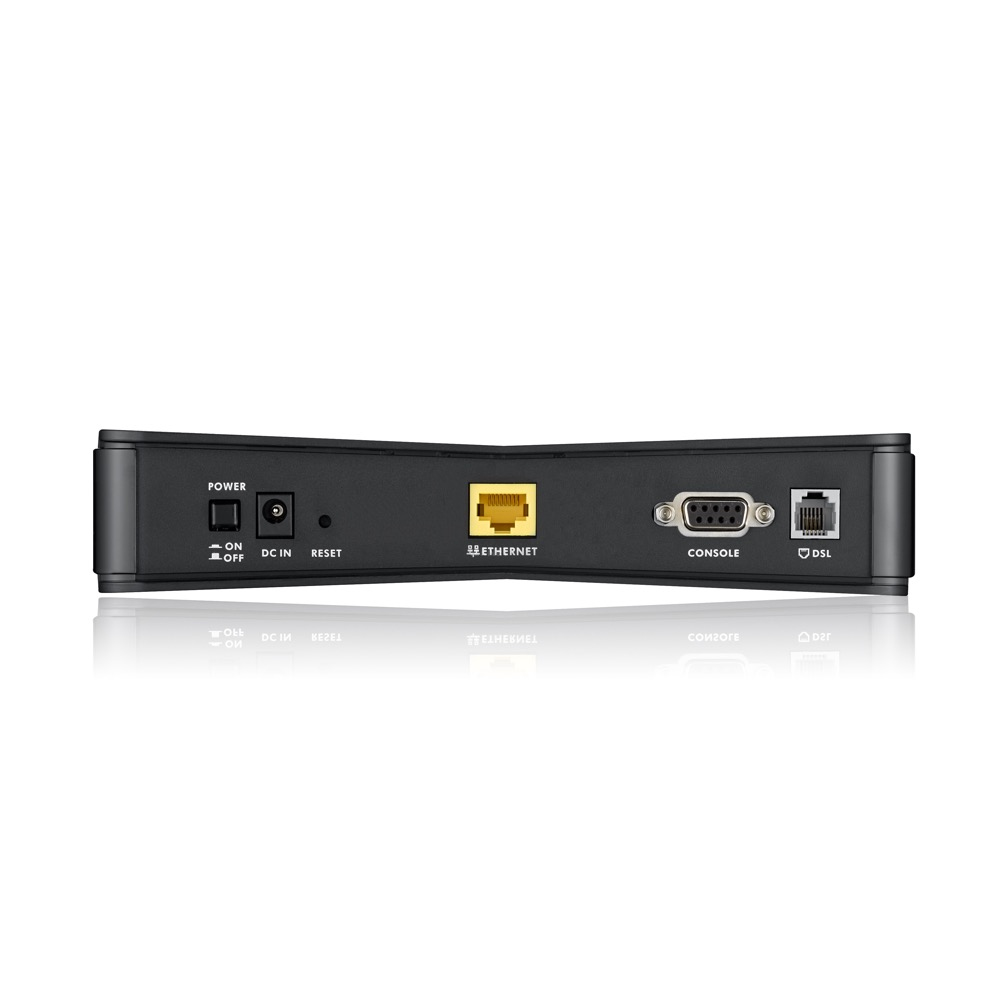

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RS-232 |
| Number of console ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RJ-11 ports quantity | 1 |
| WAN connection | ADSL (RJ-11) |
Management features
| Specification | Value |
|---|---|
| IGMP snooping | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 154 mm |
| Height | 40 mm |
| Width | 211 mm |
| Weight | 420 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
