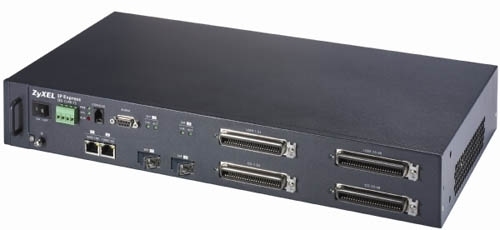

IES1248-73 Hardened ADSL 2+ Mini IP DSLAM
Model IES1248-73 Hardened ADSL 2+ Mini IP DSLAMPart no. 140101.1248.73
11 specifications
- Weight7.2 kg
- Plug and PlayNo
- Power consumption (typical)90 W
Overview
- Weight
- 7.2 kg
- Plug and Play
- No
- Power consumption (typical)
- 90 W
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- IES1248-73 Hardened ADSL 2+ Mini IP DSLAM
- Part number
- 140101.1248.73
- Also known as
- Zyxel IES1248-73 Hardened ADSL 2+ Mini IP DSLAM gateway/controller
Specifications
11 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| Plug and Play | No |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1w |
| DSL specification | G.992.3 & G. 992.5 ATM-TC, G.992.3 & G.992.5 Spectral Mask, EOC, Overhead Channel Access, Latency Path Function, Loop Diagnostic Function, Power Management Capability, SRA |
| ATM features | Point-to-Point Virtual Circuit Connection (VCC), Peak Cell Rate (PCR) & Sustainable Cell Rate (SCR), Downstream Traffic Shaping Function, Fault Management (FM), 64k PVC |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 2 x TELCO-50 (ADSL/ADSL2/ADSL2+) 2 x TELCO-50 (Splitter Card) 1 x mini-RJ11 2 x 100Base-TX/1000Base-T/mini GBIC 1 x DB9 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 90 W |
| Power over Ethernet (PoE) | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.2 kg |
| Dimensions (WxDxH) | 442.7 x 250 x 66 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC part 15 Class A EN 55022, EN 55024 Class A ETS 300 386 |
| Safety | ITU-T K.20, Appendix C, CSA 60950, EN 60950, IEC 60950, UL 60950 |
