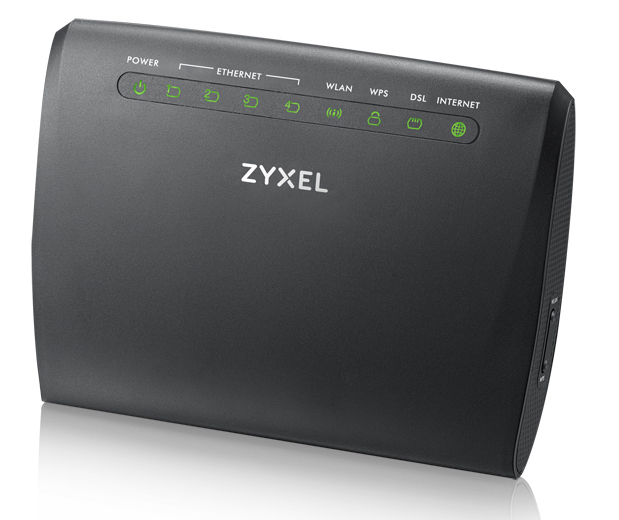

AMG1302-T11C-EU03V1F gateway/controller 10, 100 Mbit/s
Model AMG1302-T11C-EU03V1FEAN 4718937601028
32 specifications
- Weight186 g
- LED indicatorsDSL, LAN, Power, WLAN, WPS
- DHCP clientYes
- Ethernet LAN data rates10,100 Mbit/s
- Ethernet LAN (RJ-45) ports4
- Power consumption (typical)4.9 W
Overview
- Weight
- 186 g
- LED indicators
- DSL, LAN, Power, WLAN, WPS
- DHCP client
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Power consumption (typical)
- 4.9 W
- Brand
- Zyxel
- Category
- Gateways/Controllers
- Model
- AMG1302-T11C-EU03V1F
- Part number
- AMG1302-T11C-EU03V1F
- EAN / UPC
- 4718937601028
- Also known as
- Zyxel AMG1302-T11C-EU03V1F gateway/controller 10, 100 Mbit/s
Specifications
32 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| LED indicators | DSL, LAN, Power, WLAN, WPS |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p |
| Frequency band | 2.4 GHz |
| Dynamic DNS (DDNS) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, IPSEC, SNMP, WPA, WPA2, WPS, WPS-PIN |
| DoS attack prevention | Yes |
| Firewall security | Yes |

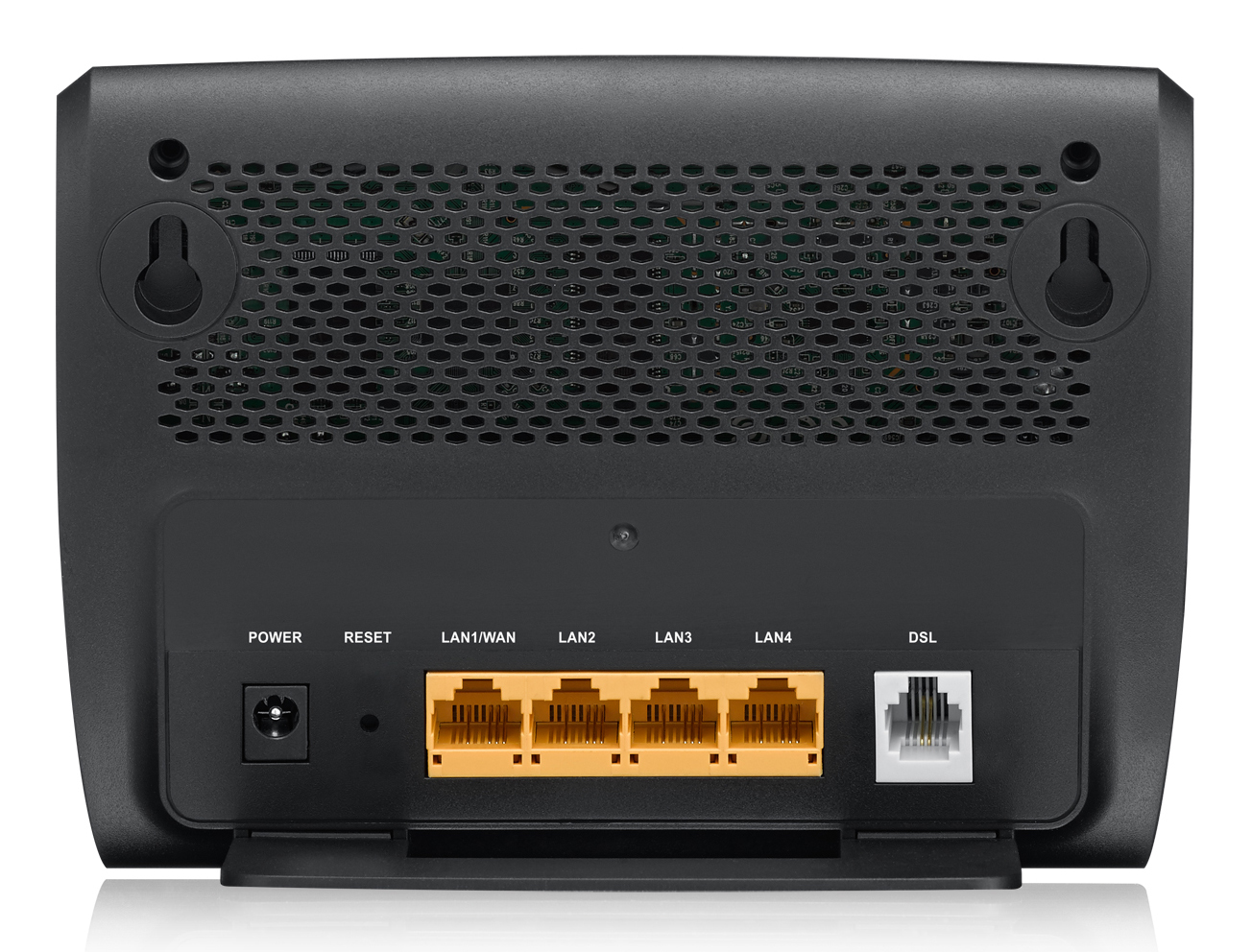

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | ADSL (RJ-11) |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Syslog | Yes |
| Traffic statistics | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4.9 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 186 g |
| Dimensions (WxDxH) | 158 x 114.5 x 22 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 324 g |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | Phone (RJ-11) |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Technical details
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 298 x 150 x 40 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
| Safety | EN 60950-1 |
