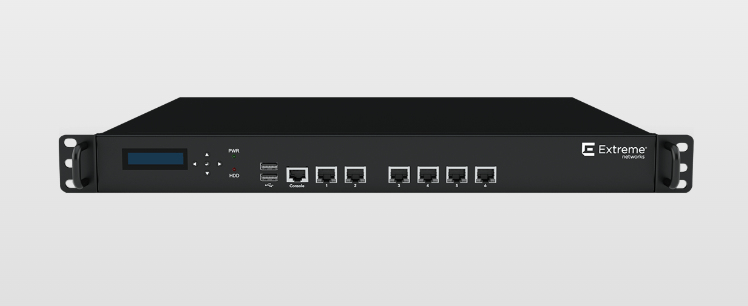

NX-5500-100R0-WR gateway/controller 10, 100, 1000 Mbit/s
Model NX-5500-100R0-WREAN 644728012589
29 specifications
- Memory4000 MB
- Storage32 GB
- Weight4.5 kg
- ColourBlack
- Plug and PlayYes
- Ethernet LAN data rates10,100,1000 Mbit/s
Overview
- Memory
- 4000 MB
- Storage
- 32 GB
- Weight
- 4.5 kg
- Colour
- Black
- Plug and Play
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Brand
- Zebra
- Category
- Gateways/Controllers
- Model
- NX-5500-100R0-WR
- Part number
- NX-5500-100R0-WR
- EAN / UPC
- 644728012589
- Also known as
- Zebra NX-5500-100R0-WR gateway/controller 10, 100, 1000 Mbit/s
Specifications
29 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack capacity | 1U |
| Mounting type | Rack mounting |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
Performance
| Specification | Value |
|---|---|
| Control display unit | Yes |
| Display type | LCD |
| Internal memory | 4000 MB |
| SSD capacity | 32 GB |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 3DES/AES throughput | 2 Gbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 6 Gbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 6 |
| Serial interface type | RS-232 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 30 W |
| Input voltage | 100-240 V |
| Power supply | 100 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 320.7 mm |
| Height | 44.2 mm |
| Width | 430 mm |
| Weight | 4.5 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
