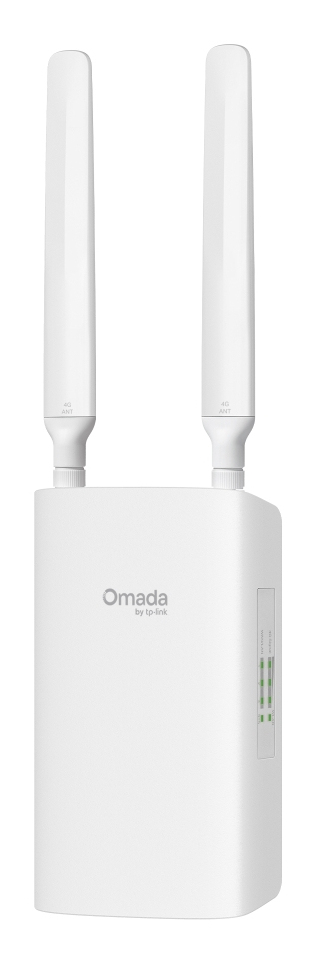

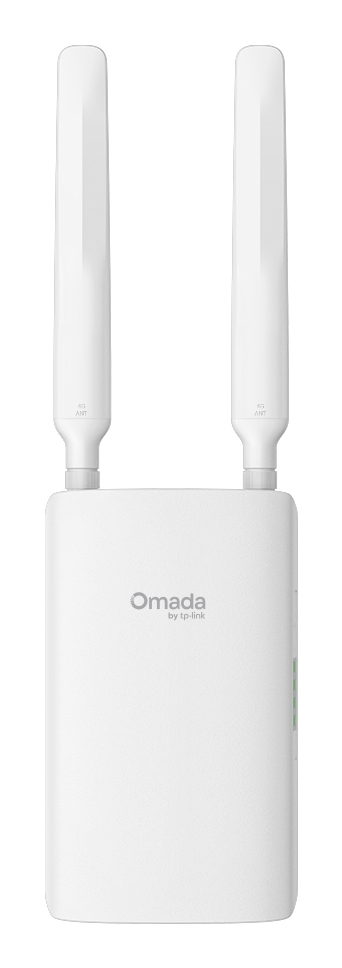

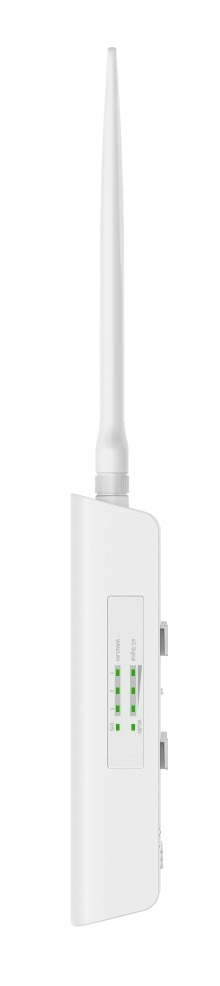

Omada Gateway gateway/controller 10, 100, 1000 Mbit/s

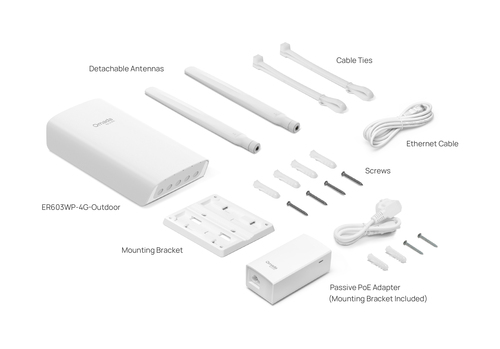

Model GatewayPart no. ER603WP-4G-OUTDOOREAN 840460607438
34 specifications
- Memory256 MB
- ColourWhite
- Antenna typeExternal
- Control display unitNo
- DHCP serverYes
- Ethernet LAN data rates10,100,1000 Mbit/s
Overview
- Memory
- 256 MB
- Colour
- White
- Antenna type
- External
- Control display unit
- No
- DHCP server
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Brand
- TP-Link
- Category
- Gateways/Controllers
- Model
- Gateway
- Part number
- ER603WP-4G-OUTDOOR
- EAN / UPC
- 840460607438, 1210002620147, 1210002620154
- Also known as
- TP-Link Omada Gateway gateway/controller 10, 100, 1000 Mbit/s
Specifications
34 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |

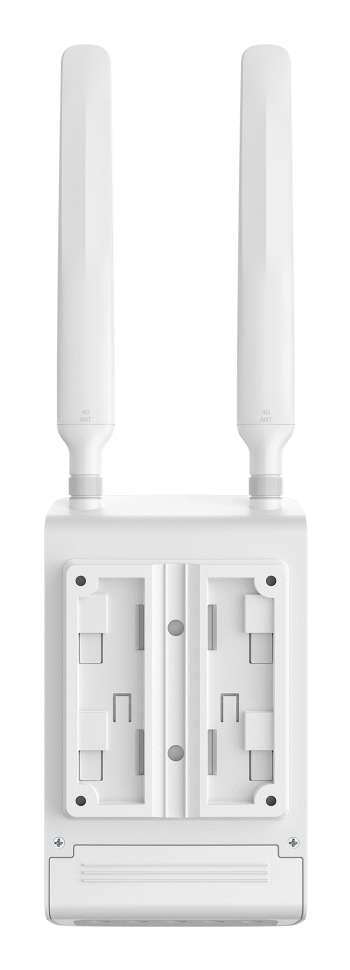

| Mounting type | Wall mounting |
| LED indicators | Status |
Features
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 2 |
| Short Message Service (SMS) | Yes |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 128 MB |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 1419519 Mpps |
| Networking standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af |
| Wi-Fi | Yes |
| Mobile network generation | 4G |
| Data network | LTE |
| Downlink/uplink speed | 150/50 Mbit/s |
| Frequency band | 2.4 GHz |
Ports & interfaces
| Specification | Value |
|---|---|

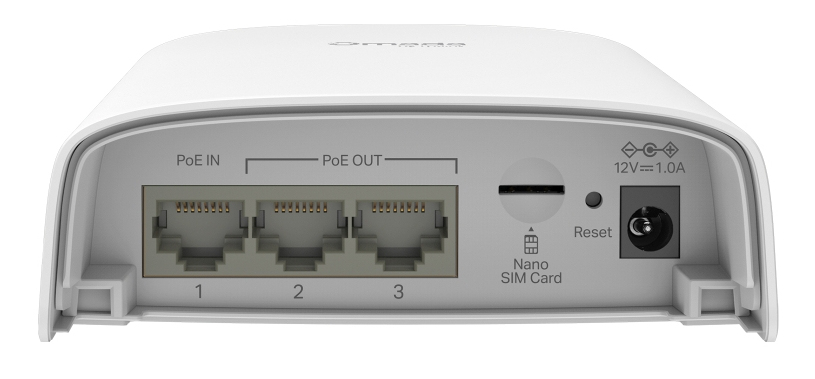

| SIM card slot | Yes |
| SIM card type | NanoSIM |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 38.7 mm |
| Height | 174.8 mm |
| Width | 100.4 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Similar products
All gateways/controllers

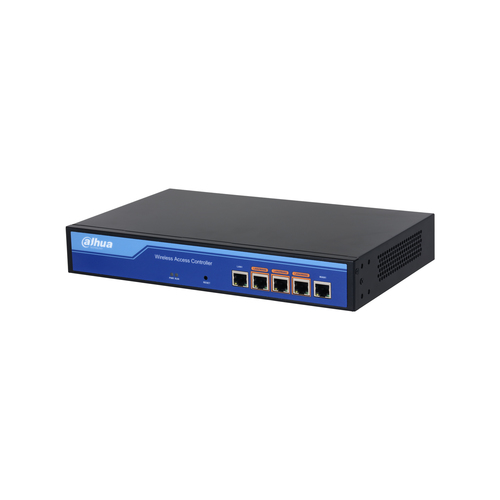

Dahua Technology
EAC64 Wireless Access Controller
Model EAC64
- Memory
- 256 MB
- Weight
- 1.42 kg
- Colour
- Black, Blue

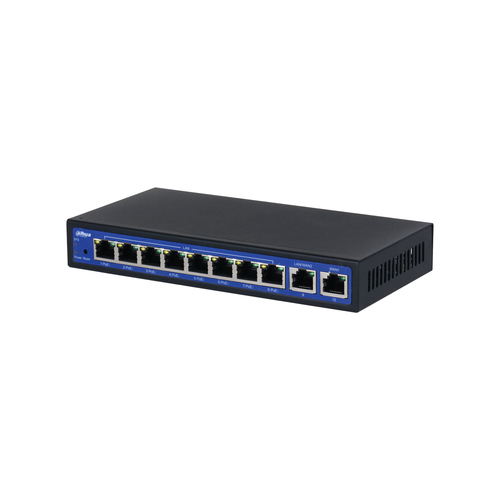

Dahua Technology
EAC10-P Wireless Access Controller
Model EAC10-P
- Memory
- 256 MB
- Weight
- 460 g
- Colour
- Black, Blue
Zyxel
VMG3312-T20A gateway/controller 10, 100 Mbit/s
Model VMG3312-T20A
- Weight
- 220 g
- Colour
- Black
- Antenna type
- Internal
TP-Link
Omada OC300(UN) gateway/controller 10, 100, 1000 Mbit/s
Model OC300(UN)
- Processor
- ARM Cortex
- Memory
- 2000 MB
- Colour
- Black
TP-Link
Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s
Model ER703WP-4G-Outdoor
- Memory
- 512 MB
- Colour
- White
- Antenna type
- External
TP-Link
Omada ER703WP-4G-OUTDOOR(EU) gateway/controller 10, 100, 1000 Mbit/s
Model ER703WP-4G-OUTDOOR(EU)
- Memory
- 512 MB
- Colour
- White
- Antenna type
- External

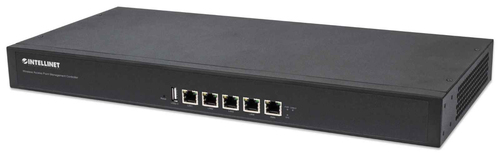

Intellinet
525749 gateway/controller 10, 100, 1000 Mbit/s
Model 525749
- Memory
- 256 MB
- Weight
- 1.7 kg
- Colour
- Black

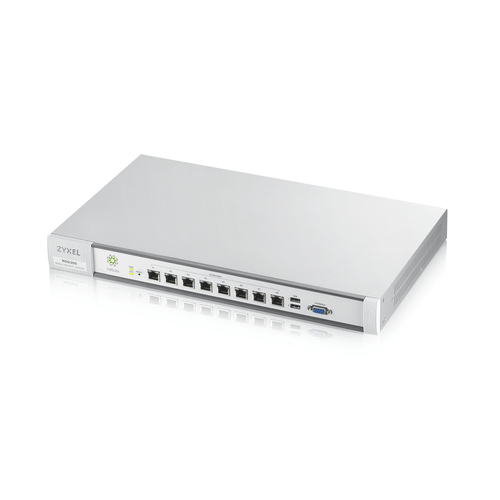

Zyxel
