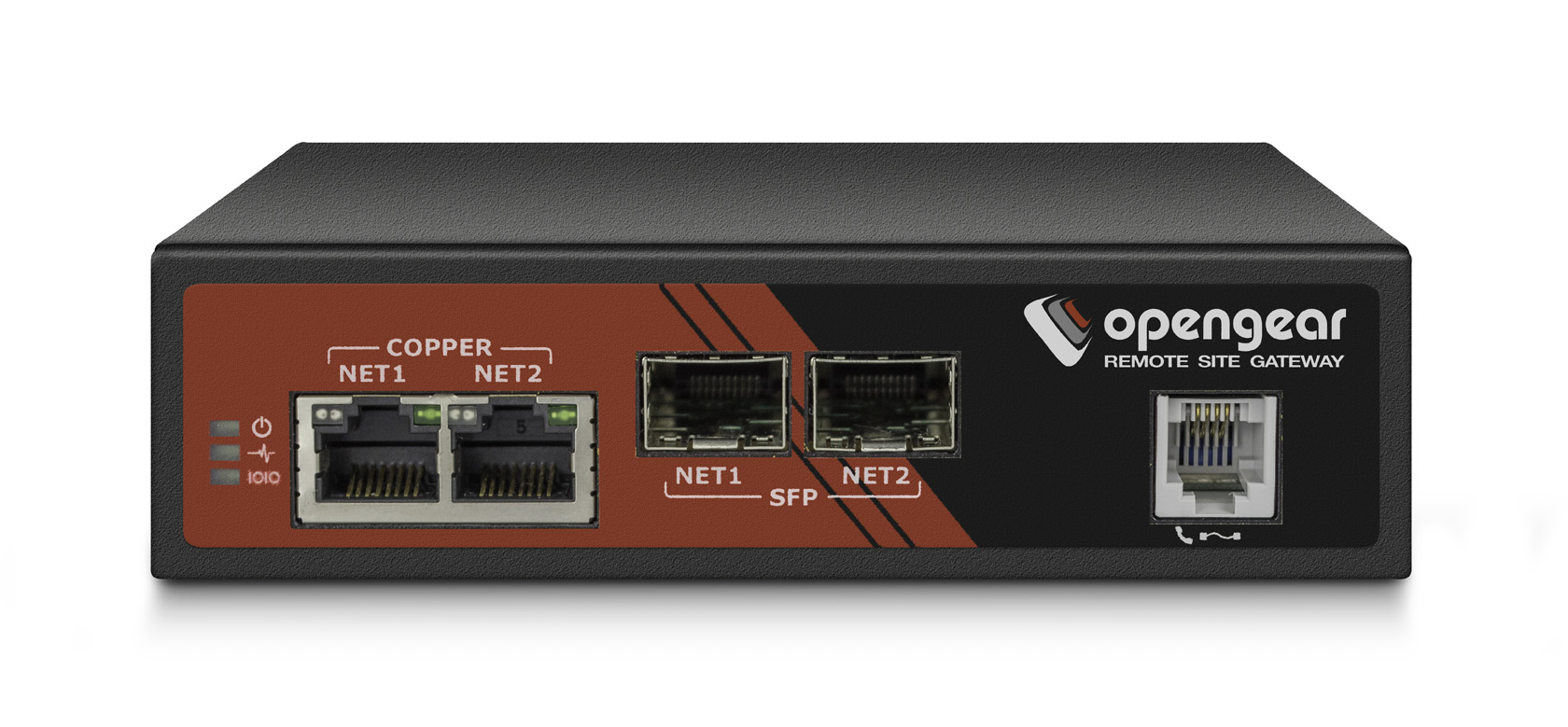

ACM7004-5 gateway/controller 10, 100, 1000 Mbit/s
Model ACM7004-5
34 specifications
- Memory256 MB
- Weight600 g
- Mounting typeRack mounting
- Built-in processorYes
- Ethernet LAN data rates10,100,1000 Mbit/s
- Authentication methodRADIUS, LDAP, PAP/CHAP
Overview
- Memory
- 256 MB
- Weight
- 600 g
- Mounting type
- Rack mounting
- Built-in processor
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Authentication method
- RADIUS, LDAP, PAP/CHAP
- Brand
- Opengear
- Category
- Gateways/Controllers
- Model
- ACM7004-5
- Part number
- ACM7004-5
- Also known as
- Opengear ACM7004-5 gateway/controller 10, 100, 1000 Mbit/s
Specifications
34 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Mounting type | Rack mounting |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Number of processors installed | 1 |
| Internal memory | 256 MB |
| Internal memory type | DDR |
| Flash memory | 4032 MB |
Protocols
| Specification | Value |
|---|---|
| Management protocols | HTTPS, SSH, Nagios NSCA, NRPE, SNMP, TFTP & FTP |
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1000 Gbit/s |
| Dynamic DNS (DDNS) | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, FIPS 140-2, HTTPS, IPSEC, SNMP, SSH, SSH-2 |
| Authentication method | RADIUS, LDAP, PAP/CHAP |
| Firewall security | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | 4x RS-232 (RJ45), 4x USB, 2x DIO, 2x HVDO |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 5 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 11.5 W |
| Input voltage | 110 - 240 V |
| Output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 600 g |
| Dimensions (WxDxH) | 130 x 120 x 35 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC |
| Quick installation guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Technical details
| Specification | Value |
|---|---|
| Electromagnetic compatibility | EN 55022:2010, CISPR 22:2008, FCC Part 15 Subpart B:2015, ICES-003 Issue 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008, EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, UL 1950, TUV, C-Tick, RoHS |
