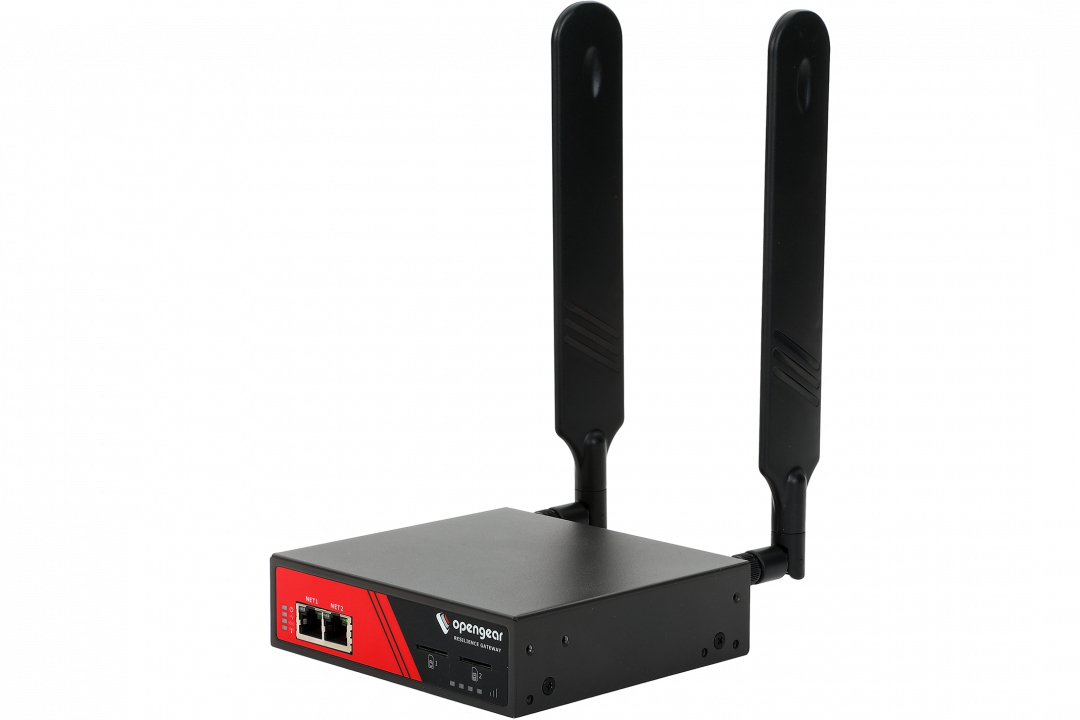

ACM7004-2-LMP gateway/controller
Model ACM7004-2-LMPEAN 843295102406
32 specifications
- Memory256 MB
- OSLinux
- Weight600 g
- Antenna connector typeSMA
- Control display unitNo
- DHCP serverYes
Overview
- Memory
- 256 MB
- OS
- Linux
- Weight
- 600 g
- Antenna connector type
- SMA
- Control display unit
- No
- DHCP server
- Yes
- Brand
- Opengear
- Category
- Gateways/Controllers
- Model
- ACM7004-2-LMP
- Part number
- ACM7004-2-LMP
- EAN / UPC
- 843295102406
- Also known as
- Opengear ACM7004-2-LMP gateway/controller
Specifications
32 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| Antenna connector type | SMA |
| Antennas quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Number of processors installed | 1 |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 4032 MB |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Mobile network generation | 3G, 4G |
| 2G standards | GSM |
| 3G standards | HSPA+, TD-SCDMA |
| 4G standard | LTE |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSH-2, SSL/TLS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 4 |
| SIM card slot | Yes |
| Number of simultaneous SIM cards | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Input voltage | 110 - 240 V |
| DC input voltage | 12 V |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 120 mm |
| Height | 35 mm |
| Width | 130 mm |
| Weight | 600 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:20 |
