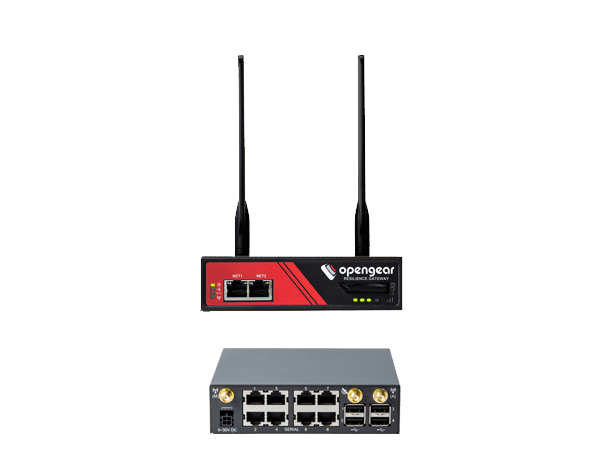

ACM7000 gateway/controller
Model ACM7000Part no. ACM7008-2-LMPEAN 843295102420
27 specifications
- Memory256 MB
- Weight6 kg
- ColourBlack, Red
- Antenna connector typeSMA
- Control display unitNo
- DHCP serverYes
Overview
- Memory
- 256 MB
- Weight
- 6 kg
- Colour
- Black, Red
- Antenna connector type
- SMA
- Control display unit
- No
- DHCP server
- Yes
- Brand
- Opengear
- Category
- Gateways/Controllers
- Model
- ACM7000
- Part numbers
- ACM7008-2-LMP, ACM7008-2-L
- EAN / UPC
- 843295102420, 843295102918
- Also known as
- Opengear ACM7000 gateway/controller
Specifications
27 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Mounting type | Rack mounting |
Features
| Specification | Value |
|---|---|
| Antenna connector type | SMA |
| Antennas quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Internal memory | 256 MB |
| Internal memory type | DDR3 |
| Flash memory | 32 MB |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSH-2, SSL/TLS |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| RS-232 ports | 8 |
| SIM card slot | Yes |
| Number of simultaneous SIM cards | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Specification | Value |
|---|---|
| Input voltage | 110 - 240 V |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 120 mm |
| Height | 35 mm |
| Width | 130 mm |
| Weight | 6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -25 - 60 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | EN 55022:2010, CISPR 22:2008, FCC Part 15 B:2015, ICES-003 5 (2014), AS/NZS CISPR 22:2009+A1:2010, EN 61000-3-2:2006/A2:2009, EN 61000-3-3:2008 EN 55024:2010, CISPR 24:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-8:20 |
