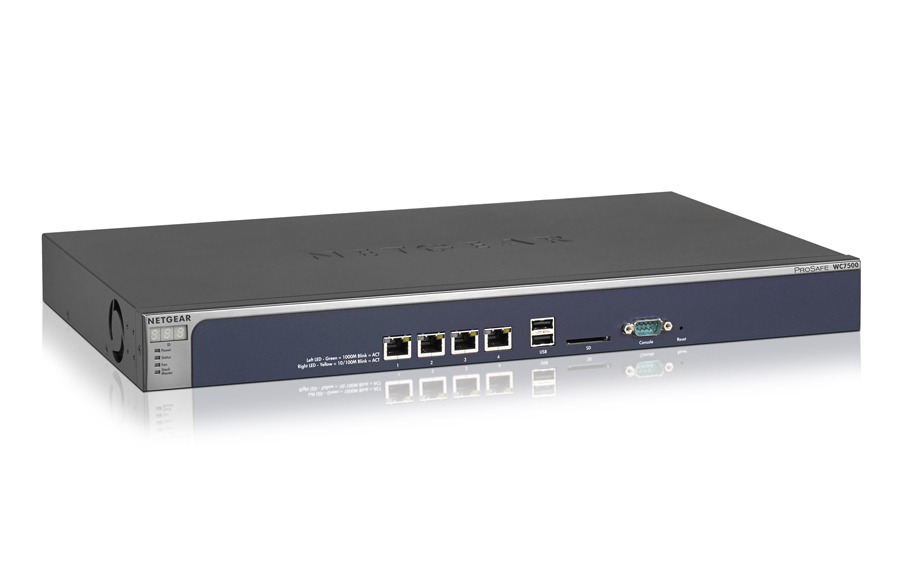

ProSAFE WC7500
Model ProSAFE WC7500Part no. WC7500-10000SEAN 606449113693
23 specifications
- Memory1024 MB
- Weight3.6 kg
- Mounting typeRack mounting
- Ethernet LAN data rates10,100,1000 Mbit/s
- USB 2.0 ports quantity1
- Input voltage100 - 240 V
Overview
- Memory
- 1024 MB
- Weight
- 3.6 kg
- Mounting type
- Rack mounting
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- USB 2.0 ports quantity
- 1
- Input voltage
- 100 - 240 V
- Brand
- NETGEAR
- Category
- Gateways/Controllers
- Model
- ProSAFE WC7500
- Part number
- WC7500-10000S
- EAN / UPC
- 606449113693
- Also known as
- NETGEAR ProSAFE WC7500 gateway/controller 10, 100, 1000 Mbit/s
Specifications
23 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Mounting type | Rack mounting |
| LED indicators | Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Internal memory type | DDR2 |
| Flash memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Wi-Fi | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 8 A |
| Power supply | 13 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.6 kg |
| Dimensions (WxDxH) | 262 x 440 x 43 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
