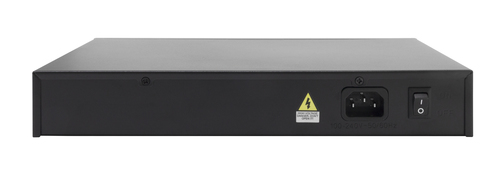

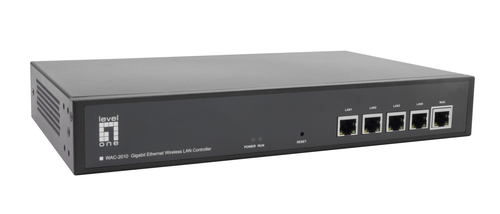

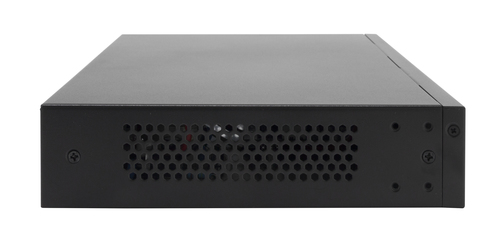

Gigabit Ethernet Wireless LAN Controller, Manage up to 128 APs
Model WAC-2010EAN 4015867231647
32 specifications
- Memory256 MB
- Weight1.4 kg
- ColourBlack
- Control display unitNo
- Ethernet LAN data rates10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports4
Overview
- Memory
- 256 MB
- Weight
- 1.4 kg
- Colour
- Black
- Control display unit
- No
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- LevelOne
- Category
- Gateways/Controllers
- Model
- WAC-2010
- Part number
- WAC-2010
- EAN / UPC
- 4015867231647
- Also known as
- LevelOne Gigabit Ethernet Wireless LAN Controller, Manage up to 128 APs
Specifications
32 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Enclosure material | Metal |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Internal memory | 256 MB |
| Flash memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 189 mm |
| Height | 44 mm |
| Width | 294 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 241 mm |
| Package height | 81 mm |
| Package width | 325 mm |
| Package type | Box |
| Package weight | 2.08 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
