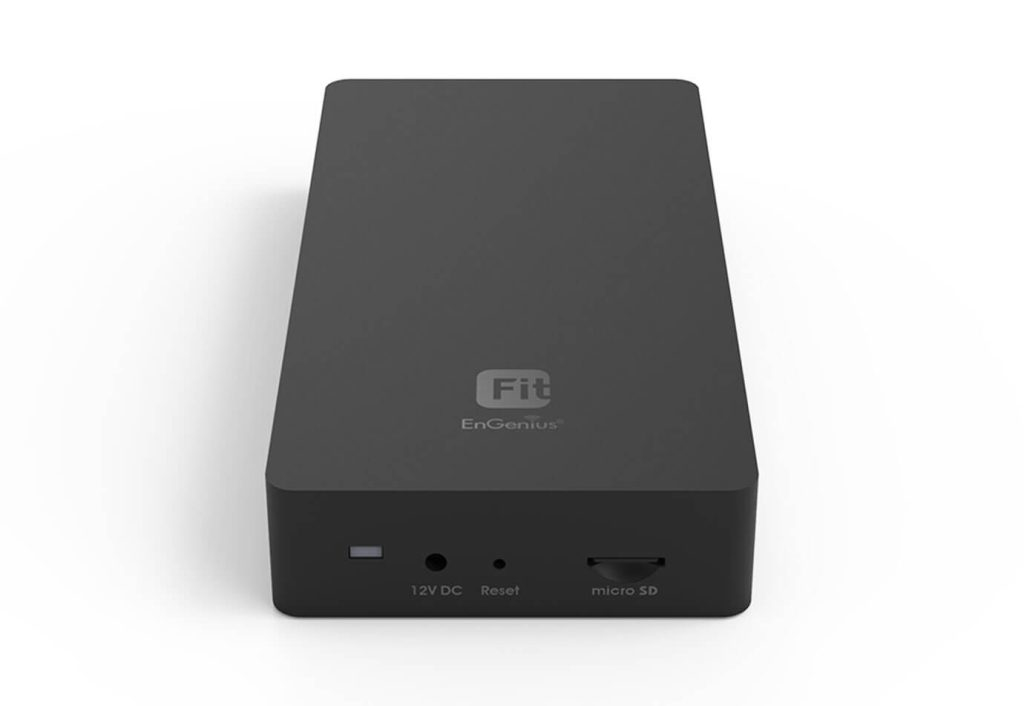

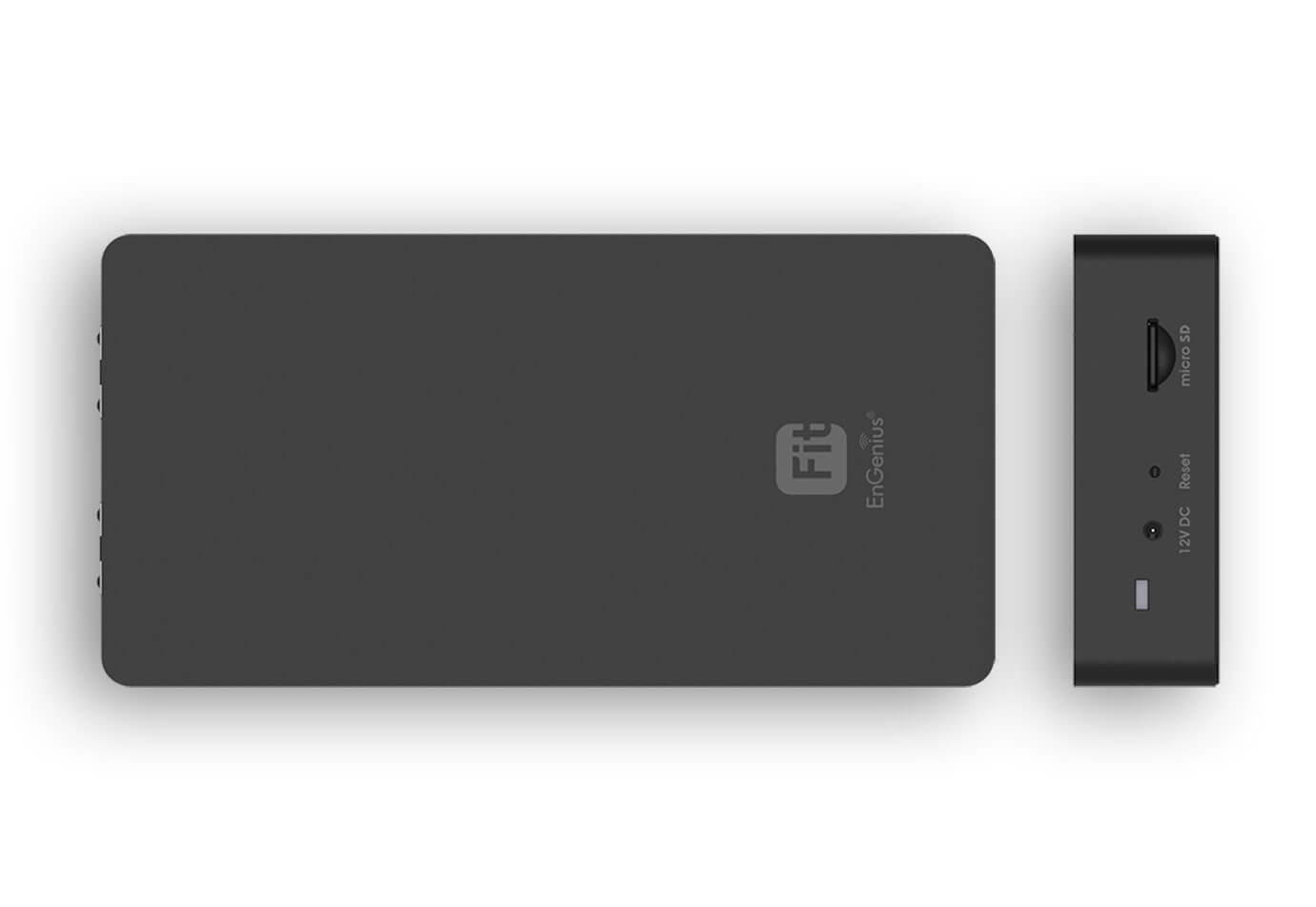

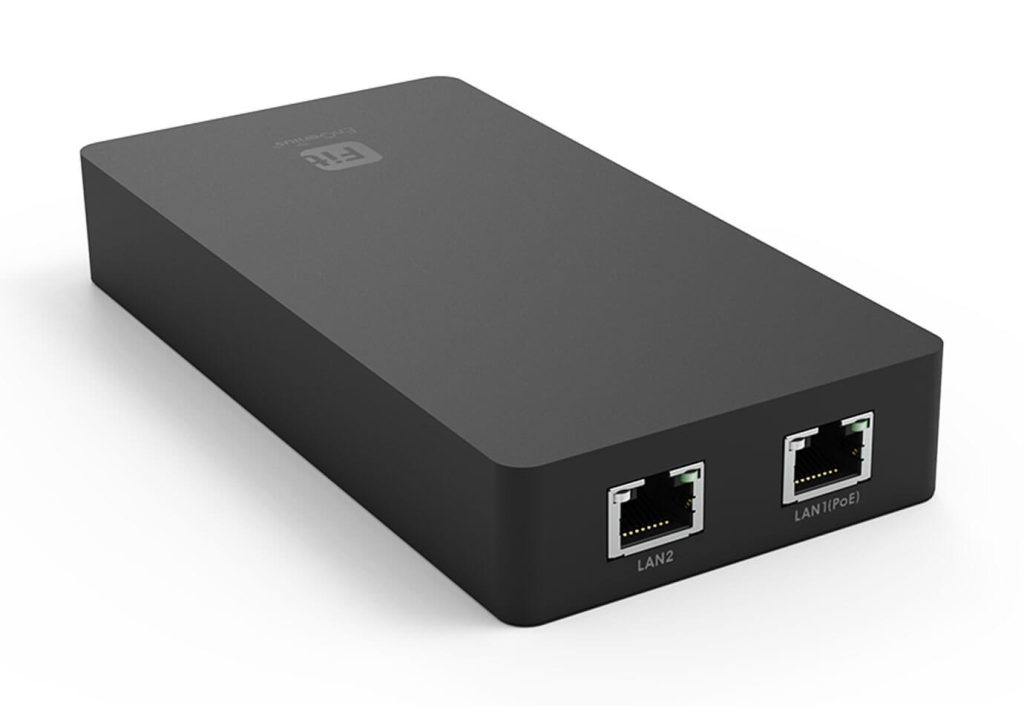

Hardware controller for all FIT switches and APs
Model FitCon100Part no. FITCON100EAN 655216010994
36 specifications
- Memory2 MB
- Weight165 g
- ColourBlack
- Control display unitNo
- Ethernet LAN data rates10,100,1000 Mbit/s
- DC-in jackYes
Overview
- Memory
- 2 MB
- Weight
- 165 g
- Colour
- Black
- Control display unit
- No
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- DC-in jack
- Yes
- Brand
- EnGenius
- Category
- Gateways/Controllers
- Model
- FitCon100
- Part number
- FITCON100
- EAN / UPC
- 655216010994, 4713361936395
- Also known as
- EnGenius Hardware controller for all FIT switches and APs
Specifications
36 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor frequency | 1800 MHz |
| Number of processors installed | 1 |
| Internal memory | 2 MB |
| Internal memory type | DDR4 |
| Flash memory | 8000 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3af |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100-240 V |
| Output voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 174.2 mm |
| Height | 43 mm |
| Width | 77.4 mm |
| Weight | 165 g |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 109 mm |
| Package height | 47 mm |
| Package width | 185 mm |
| Package weight | 295 g |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 5.9 kg |
| Master (outer) case width | 236 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case height | 222 mm |
| Master (outer) case gross weight | 6.55 kg |
| Products per master (outer) case | 20 pc(s) |
