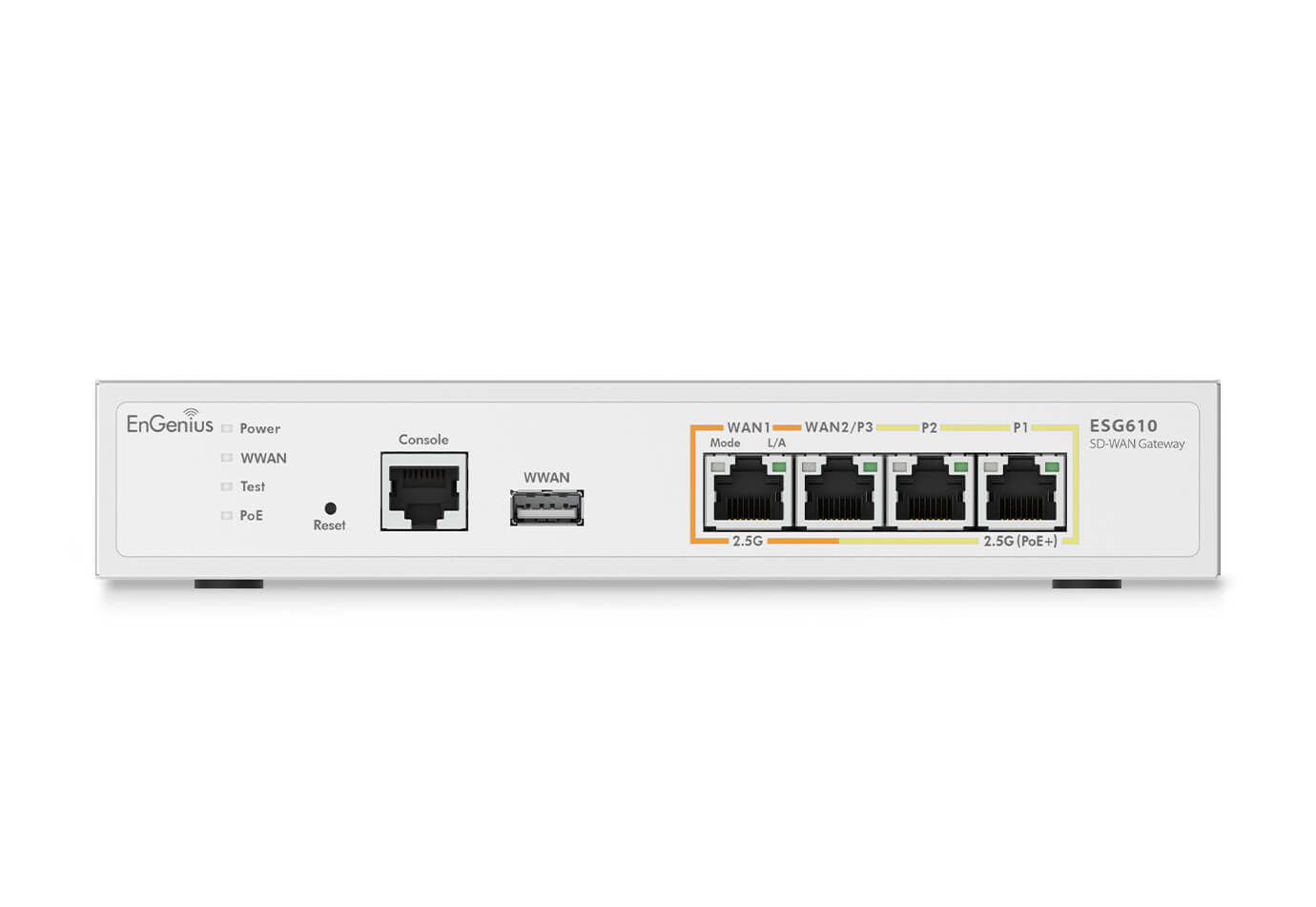

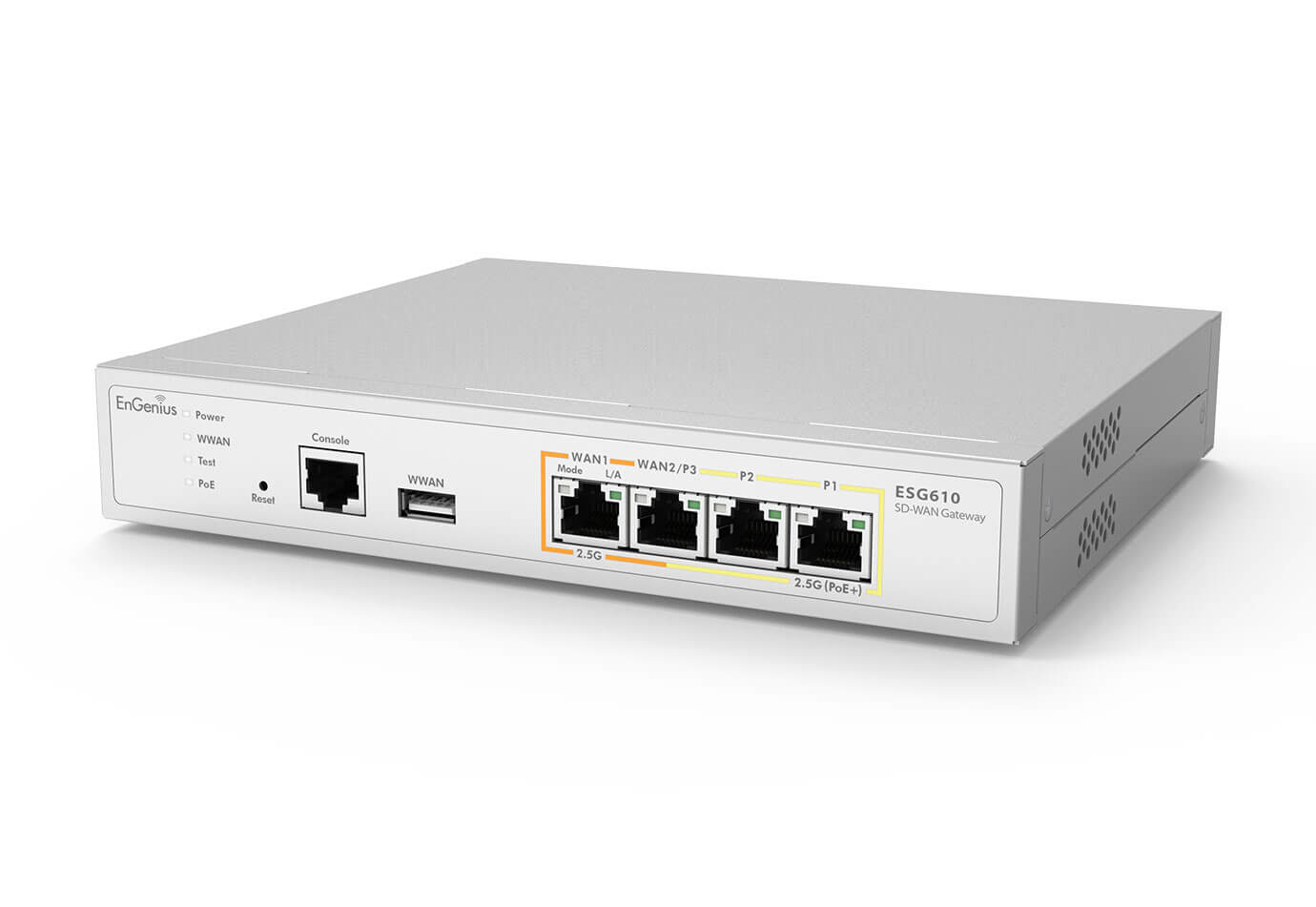

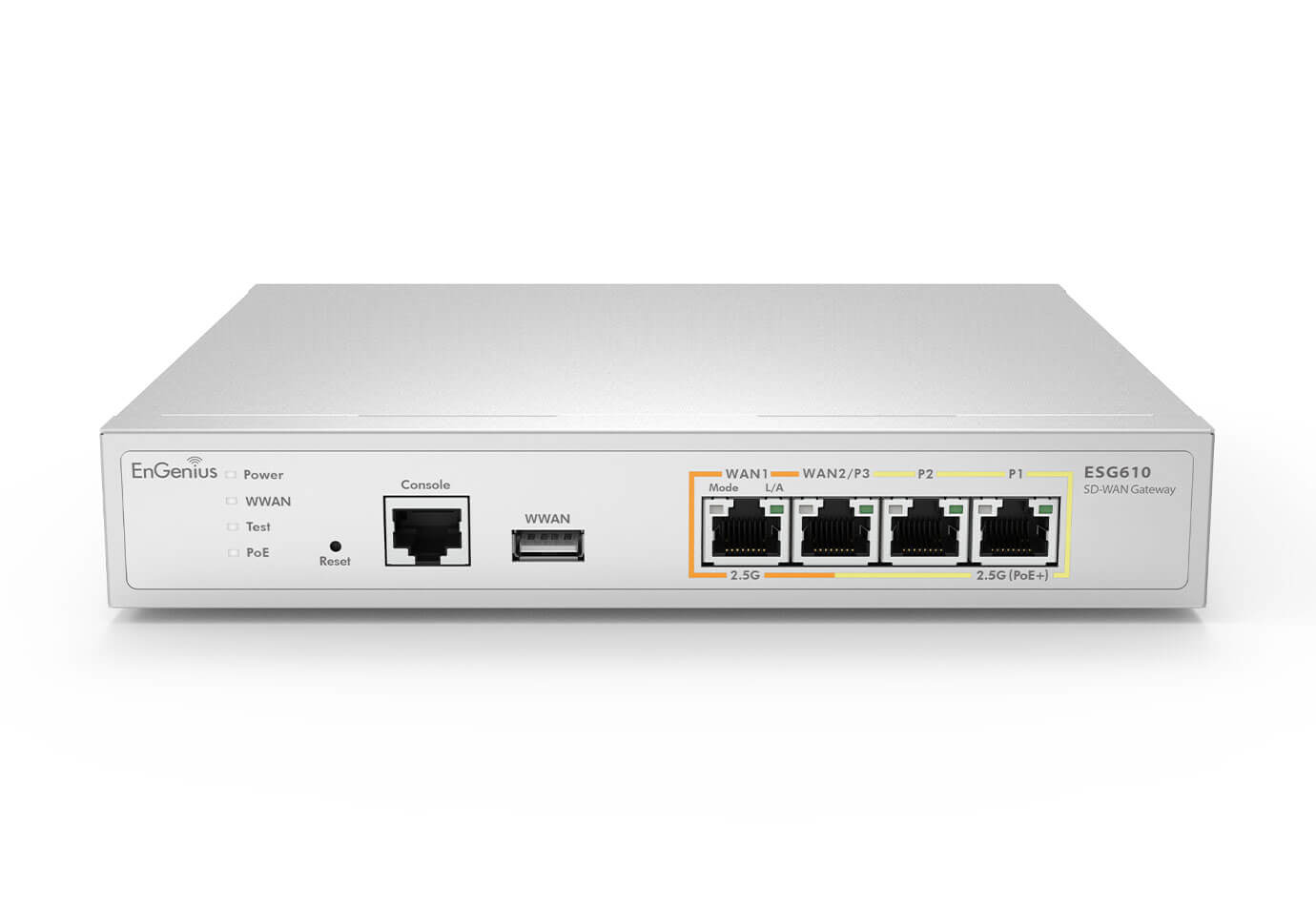

Cloud Managed Security Gateway
2 x 2.5 GbE LAN & 2 x 2.5 GbE WAN
Model ESG610EAN 655216011144
35 specifications
- Memory8192 MB
- ColourWhite
- Control display unitNo
- Ethernet LAN data rates2500 Mbit/s
- Authentication methodMD5, SHA1, SHA2 (256-bit)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Overview
- Memory
- 8192 MB
- Colour
- White
- Control display unit
- No
- Ethernet LAN data rates
- 2500 Mbit/s
- Authentication method
- MD5, SHA1, SHA2 (256-bit)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Brand
- EnGenius
- Category
- Gateways/Controllers
- Model
- ESG610
- Part number
- ESG610
- EAN / UPC
- 655216011144, 4713361936012
- Also known as
- EnGenius Cloud Managed Security Gateway 2 x 2.5 GbE LAN & 2 x 2.5 GbE WAN
Specifications
35 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Product colour | White |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
| Built-in processor | Yes |
| Processor frequency | 2200 MHz |
| Internal memory | 8192 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s |
| Number of concurrent sessions (max) | 1250000 |
| Firewall throughput | 6800 Mbit/s |
| SSL VPN throughput | 1.5 Gbit/s |
| VPN support | Site-to-Site VPN Client VPN(IPsec/SecuPoint SSL) Policy-based VPN IPSec NAT traversal (NAT-T) Dead Peer Detection (DPD) Auto-VPN Connection Auto NAT traversal |
Security
| Specification | Value |
|---|---|
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication method | MD5, SHA1, SHA2 (256-bit) |
| Firewall security | Yes |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Console port | RJ-45 |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 179.5 mm |
| Height | 35 mm |
| Width | 210 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 104 mm |
| Package height | 297 mm |
| Package width | 279 mm |
| Package weight | 1.93 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | AC, LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Master (outer) case net weight | 7.7 kg |
| Master (outer) case width | 290 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 315 mm |
| Master (outer) case gross weight | 7.7 kg |
| Products per master (outer) case | 4 pc(s) |
