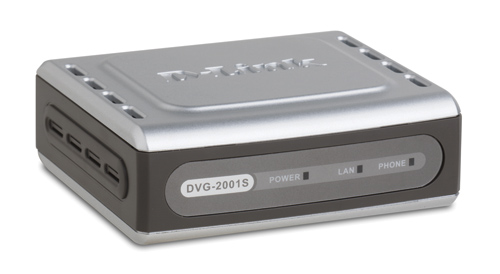

DVG-2001S VoIP Phone Adapter
Model DVG-2001S VoIP Phone AdapterPart no. DVG-2001S/EEAN 790069284175
11 specifications
- Management protocolsSIP, PPPoE
- Cabling technology10/100Base-T(X)
- Power requirements12V AC, 1.2A
- Dimensions (WxDxH)90 x 82.46 x 31 mm
- Operating temperature (T-T)0 - 40 °C
Overview
- Management protocols
- SIP, PPPoE
- Cabling technology
- 10/100Base-T(X)
- Power requirements
- 12V AC, 1.2A
- Dimensions (WxDxH)
- 90 x 82.46 x 31 mm
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- Gateways/Controllers
- Model
- DVG-2001S VoIP Phone Adapter
- Part numbers
- DVG-2001S/E, DVG-2001S/B, DVG-2001S
- EAN / UPC
- 790069284175, 790069284182, 790069283734
- Also known as
- D-Link DVG-2001S VoIP Phone Adapter gateway/controller
Specifications
11 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Compatible products | G.711, G.723.1, G.726, G.729A, G.168, G.711, RFC2833 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SIP, PPPoE |
| Supported protocols | IP TCP UDP ARP HTTP |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100Base-T(X) |
| Security features | SIP Authentication, Password Encryption HTTP Digest Authentication Configuration Download HTTPS, SSL/TLS Clients Certification Encryption & Authentication Configuration File Encryption VoIP NAT Traversal (SIP/STUN) |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | RJ-11, FXS Port RJ-45 Ethernet Port |
Power
| Specification | Value |
|---|---|
| Power requirements | 12V AC, 1.2A |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 90 x 82.46 x 31 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 55 °C |
Technical details
| Specification | Value |
|---|---|
| Manageability features | TFTP Client HTTP Web Interface DHCP TELNET TFTP Client |
