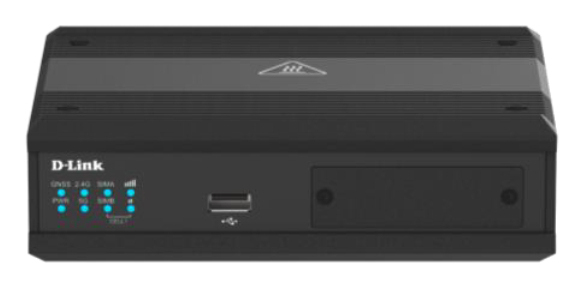

DTM-550-TSO gateway/controller 10, 100, 1000 Mbit/s
Model DTM-550-TSO
31 specifications
- ColourBlack
- Antenna typeExternal
- DHCP clientYes
- Ethernet LAN data rates10,100,1000 Mbit/s
- USB 2.0 ports quantity1
- Depth125 mm
Overview
- Colour
- Black
- Antenna type
- External
- DHCP client
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- USB 2.0 ports quantity
- 1
- Depth
- 125 mm
- Brand
- D-Link
- Category
- Gateways/Controllers
- Model
- DTM-550-TSO
- Part number
- DTM-550-TSO
- Also known as
- D-Link DTM-550-TSO gateway/controller 10, 100, 1000 Mbit/s
Specifications
31 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Mounting type | Wall mounting |
Features
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 4 |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 300,866 Mbit/s |
| Mobile network generation | 4G |
| Frequency band | 2.4/5 GHz |
| Dynamic DNS (DDNS) | Yes |
| VPN support | Sec, OpenVPN, PPTP,L2TP,GRE |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-AES, WPA2-PSK |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| SIM card slot | Yes |
| Number of simultaneous SIM cards | 2 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Serial interface type | RS-232 |
| WAN connection | Ethernet (RJ-45) |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 125 mm |
| Height | 47 mm |
| Width | 160 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE ,UKCA, RCM |
