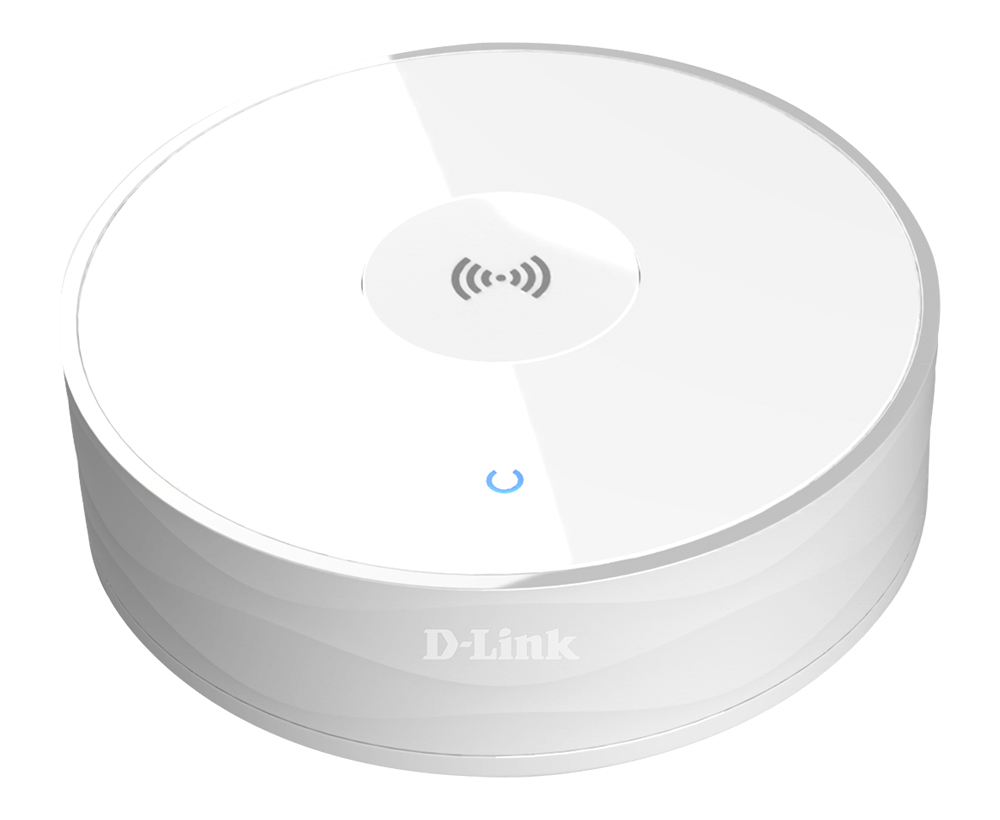

D-Link DSH-G300 gateway/controller 10, 100 Mbit/s: Full Specifications

Overview

Memory: 128 MB
Weight: 80 g
Colour: White
Antenna type: Internal
Control display unit: No
Ethernet LAN data rates: 10,100 Mbit/s

Brand: D-Link
Category: Gateways/Controllers
Model: DSH-G300
Part number: DSH-G300
EAN / UPC: 790069442445
Also known as: D-Link DSH-G300 gateway/controller 10, 100 Mbit/s

Specifications

23 specifications in 9 groups

Design

Specification	Value
Product colour	White
WPS push button	Yes
LED indicators	Yes

Features

Specification	Value
Antenna type	Internal

Performance

Specification	Value
Control display unit	No
Internal memory	128 MB
Flash memory	64 MB

Network

Specification	Value
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency band	2.4 - 2.4835 GHz

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Input voltage	100 - 240 V
Input frequency	50/60 Hz

Weight & dimensions

Specification	Value
Depth	89 mm
Height	27 mm
Width	89 mm
Weight	80 g

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	5 - 95%
