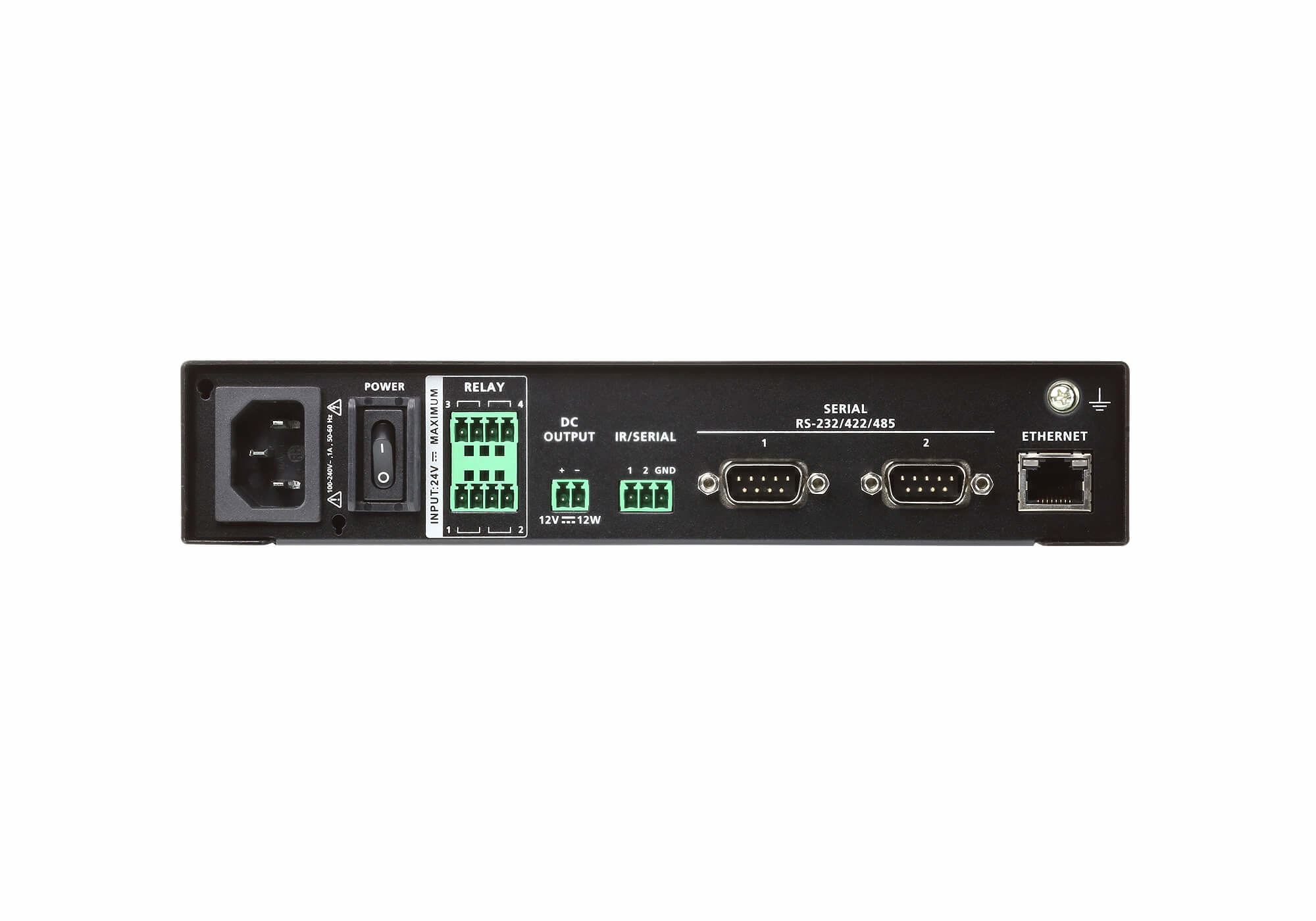

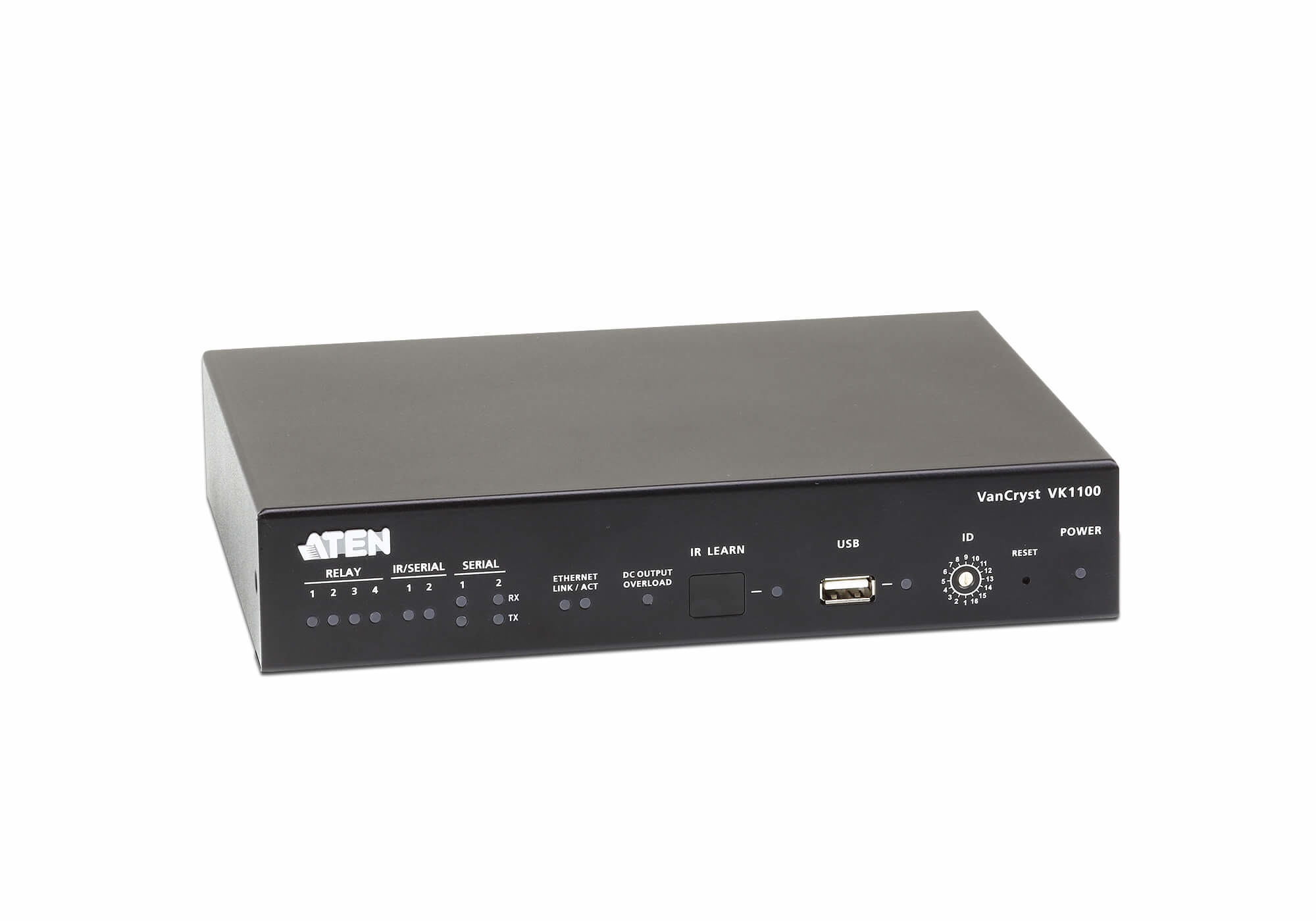

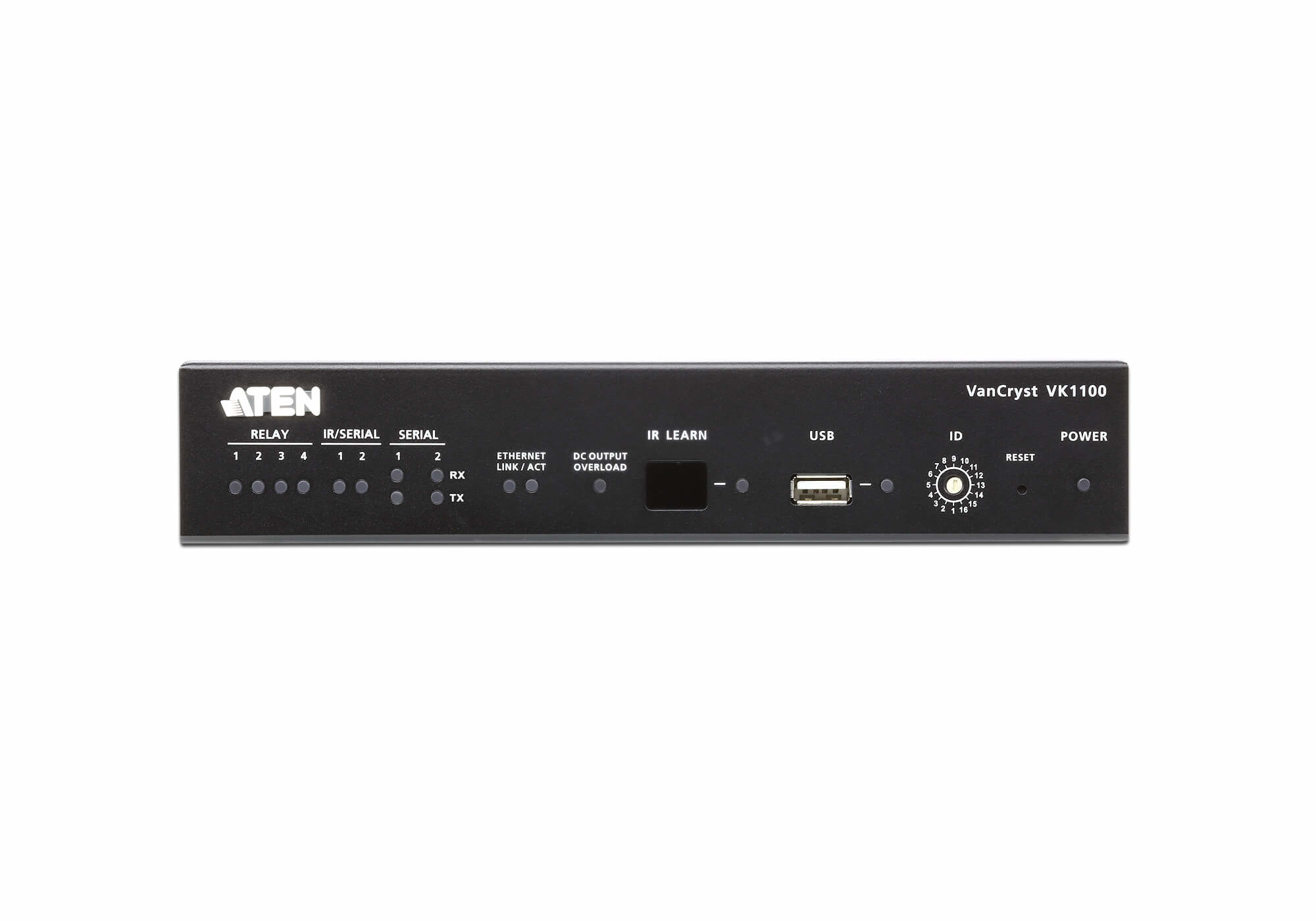

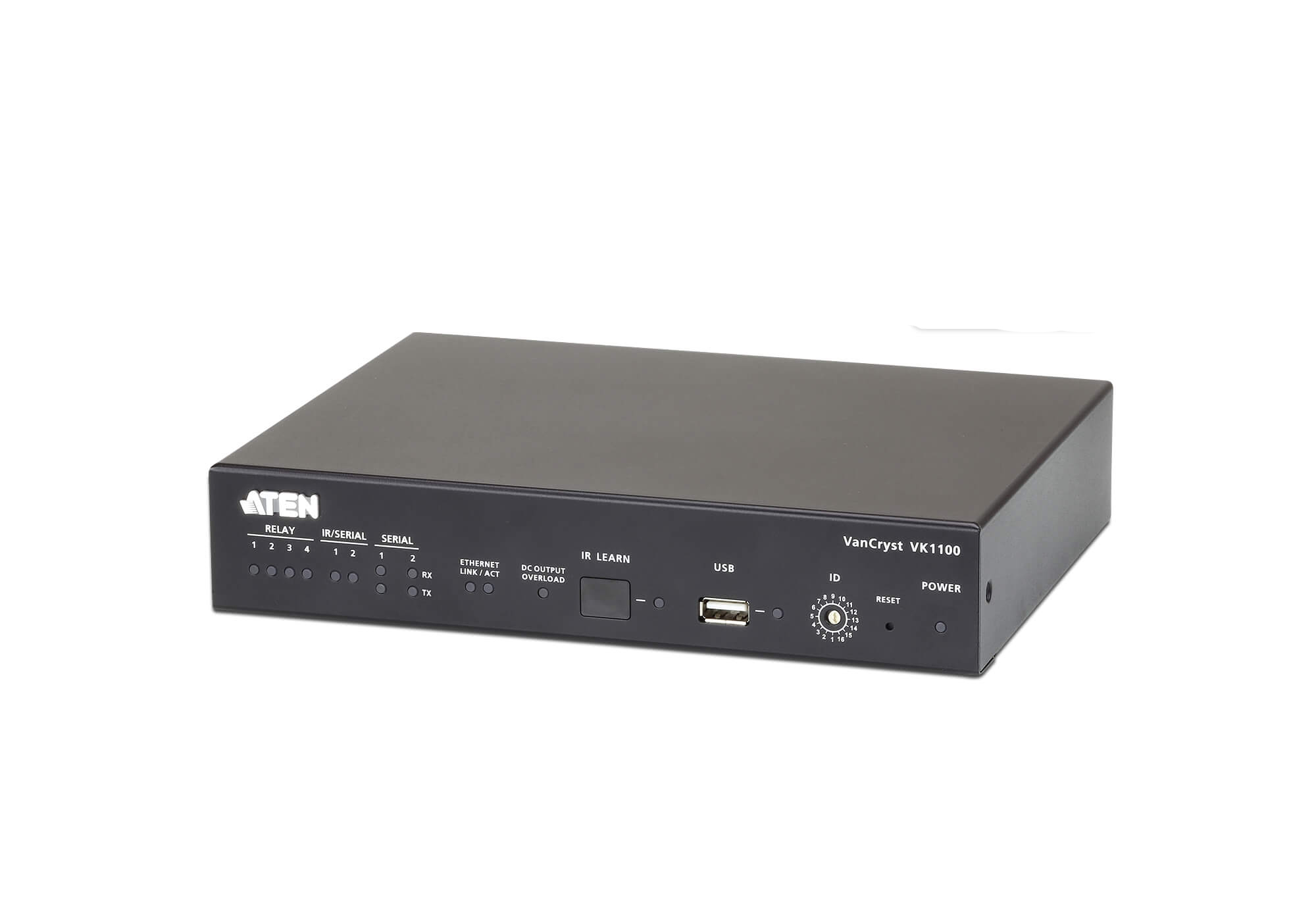

VK1100K2-AT-E gateway/controller 10, 100 Mbit/s
Model VK1100K2-AT-E
31 specifications
- Weight1.72 kg
- ColourBlack
- Control display unitNo
- Ethernet LAN data rates10,100 Mbit/s
- Security algorithmsSSH
- USB 2.0 ports quantity1
Overview
- Weight
- 1.72 kg
- Colour
- Black
- Control display unit
- No
- Ethernet LAN data rates
- 10,100 Mbit/s
- Security algorithms
- SSH
- USB 2.0 ports quantity
- 1
- Brand
- ATEN
- Category
- Gateways/Controllers
- Model
- VK1100K2-AT-E
- Part number
- VK1100K2-AT-E
- Also known as
- ATEN VK1100K2-AT-E gateway/controller 10, 100 Mbit/s
Specifications
31 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Enclosure material | Metal |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Control display unit | No |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial interface type | RS-232/422/485 |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.4 W |
| Input voltage | 100-240 V |
| Input frequency | 50-60 Hz |
| DC input voltage | 12 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 162.3 mm |
| Height | 41.8 mm |
| Width | 215 mm |
| Weight | 1.72 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 414 mm |
| Package height | 117 mm |
| Package width | 207 mm |
| Package weight | 1.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
