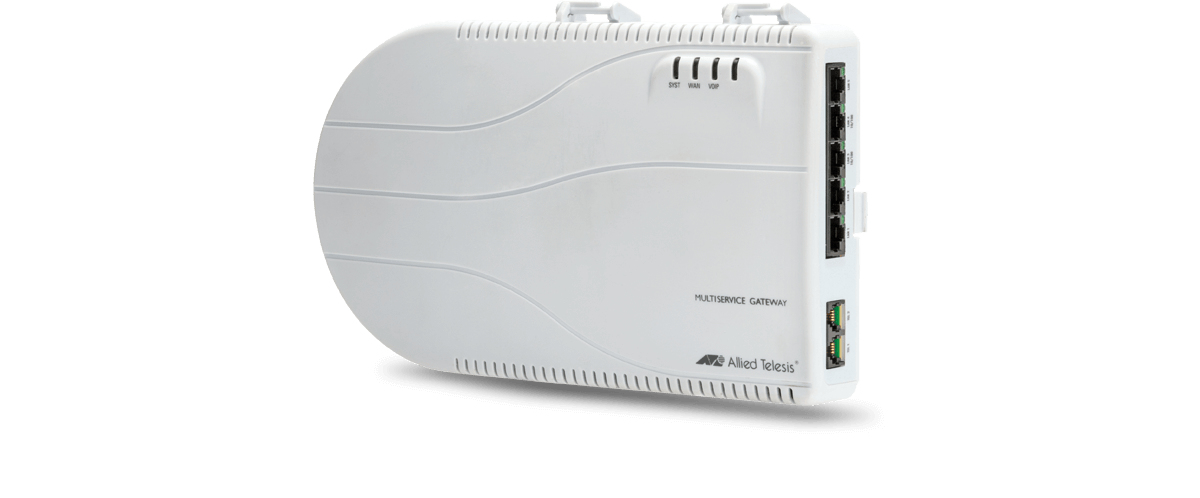

iMG1405 gateway/controller 10, 100, 1000 Mbit/s
Model iMG1405Part no. AT-IMG1405-B01-50EAN 767035199276
34 specifications
- Weight450 g
- LED indicatorsYes
- Management protocolsSNMP v1/v2, Telnet
- Ethernet LAN data rates10,100,1000 Mbit/s
- Authentication methodPAP/CHAP
- USB 2.0 ports quantity2
Overview
- Weight
- 450 g
- LED indicators
- Yes
- Management protocols
- SNMP v1/v2, Telnet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Authentication method
- PAP/CHAP
- USB 2.0 ports quantity
- 2
- Brand
- Allied Telesis
- Category
- Gateways/Controllers
- Model
- iMG1405
- Part number
- AT-IMG1405-B01-50
- EAN / UPC
- 767035199276
- Also known as
- Allied Telesis iMG1405 gateway/controller 10, 100, 1000 Mbit/s
Specifications
34 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
Features
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Voice codecs | G.168, G.711, G.726, G.729 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMP v1/v2, Telnet |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| VoIP protocols | SIP 2.0, MGCP/NCS 1.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u |
| Wi-Fi | No |
| Security features | SIF, NAT |
| VPN support | IPSec |
Security
| Specification | Value |
|---|---|
| Authentication method | PAP/CHAP |
| Firewall security | Yes |
| VLAN support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 5 |
| Foreign eXchange Station (FXS) ports quantity | 2 |
| WAN connection | SFP |
| I/O ports | 1 x Coax TV-out 1 x SFP |
Management features
| Specification | Value |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Output voltage | 12 V |
| Output current | 1.5 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 450 g |
| Dimensions (WxDxH) | 260 x 150 x 45 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | IEC/EN60950-1 UL 60950-1 EN60825-1 CAN/CSA-C22.2 GR1089 FCC EN 55022 EN 55024 |
