D4-320 disk array Desktop Black
Model D4-320EAN 6939236143783
40 specifications
- Noise21 dB
- Weight1.9 kg
- ColourBlack
- Storage drives installedNo
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
- Device classHome & Home Office
Overview
- Noise
- 21 dB
- Weight
- 1.9 kg
- Colour
- Black
- Storage drives installed
- No
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- Device class
- Home & Home Office
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- D4-320
- Part number
- D4-320
- EAN / UPC
- 6939236143783, 6939236143806
- Also known as
- TerraMaster D4-320 disk array Desktop Black
Specifications
40 specifications in 11 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Maximum supported storage capacity | 88 TB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| Data transfer rate | 10 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Chassis type | Desktop |
| Product colour | Black |
| Noise level | 21 dB |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 72 W |
| Power consumption (typical) | 40.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 154 mm |
| Height | 222 mm |
| Weight | 1.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 275 mm |
| Package depth | 186 mm |
| Package height | 300 mm |
| Package weight | 3.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Number of adapters included | 1 pc(s) |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Similar products
All disk arrays
TerraMaster

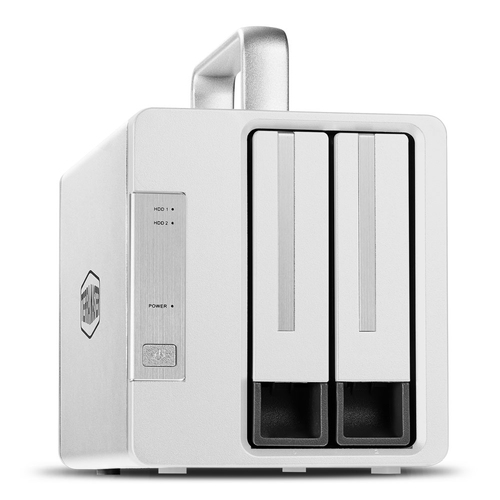

D2-310 8TB 2x4TB Seagate IronWolf 2 Bay NAS Desktop
