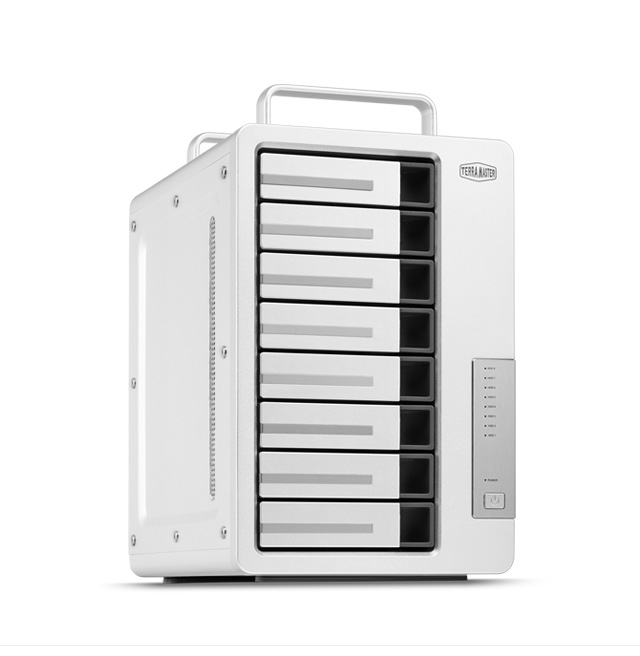

D8 Thunderbolt 3
Model D8 Thunderbolt 3Part no. D8-THUNDERBOLT3/32TB-EXOSEAN 6939236139151
43 specifications
- Noise24 dB
- Weight5.3 kg
- ColourAluminium
- Storage drives installedYes
- USB connectivityNo
- Chassis typeDesktop
Overview
- Noise
- 24 dB
- Weight
- 5.3 kg
- Colour
- Aluminium
- Storage drives installed
- Yes
- USB connectivity
- No
- Chassis type
- Desktop
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- D8 Thunderbolt 3
- Part numbers
- D8-THUNDERBOLT3/32TB-EXOS, D8-THUNDERBOLT3/64TB-IWP, D8-THUNDERBOLT3/80TB-IWP, D8-THUNDERBOLT3/24TB-IW, D8-THUNDERBOLT3/80TB-IW, D8-THUNDERBOLT3/112TB-IW +19 more
- EAN / UPC
- 6939236139151
- Also known as
- TerraMaster D8 Thunderbolt 3 disk array 32 TB Desktop Aluminium
Specifications
43 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Number of storage drives installed | 8 |
| Total installed storage capacity | 32 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |
| Maximum supported storage capacity | 128 TB |
| Storage drive capacity | 4 TB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 2 |
| Thunderbolt version | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Aluminium |
| LED indicators | HDD, Power, SSD |
| Cooling | Yes |
| Noise level | 24 dB |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Certification | CE, FCC, CCC, KC |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 300 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 184 mm |
| Depth | 315 mm |
| Height | 266 mm |
| Weight | 5.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 320 mm |
| Package depth | 397 mm |
| Package height | 381 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Thunderbolt |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
