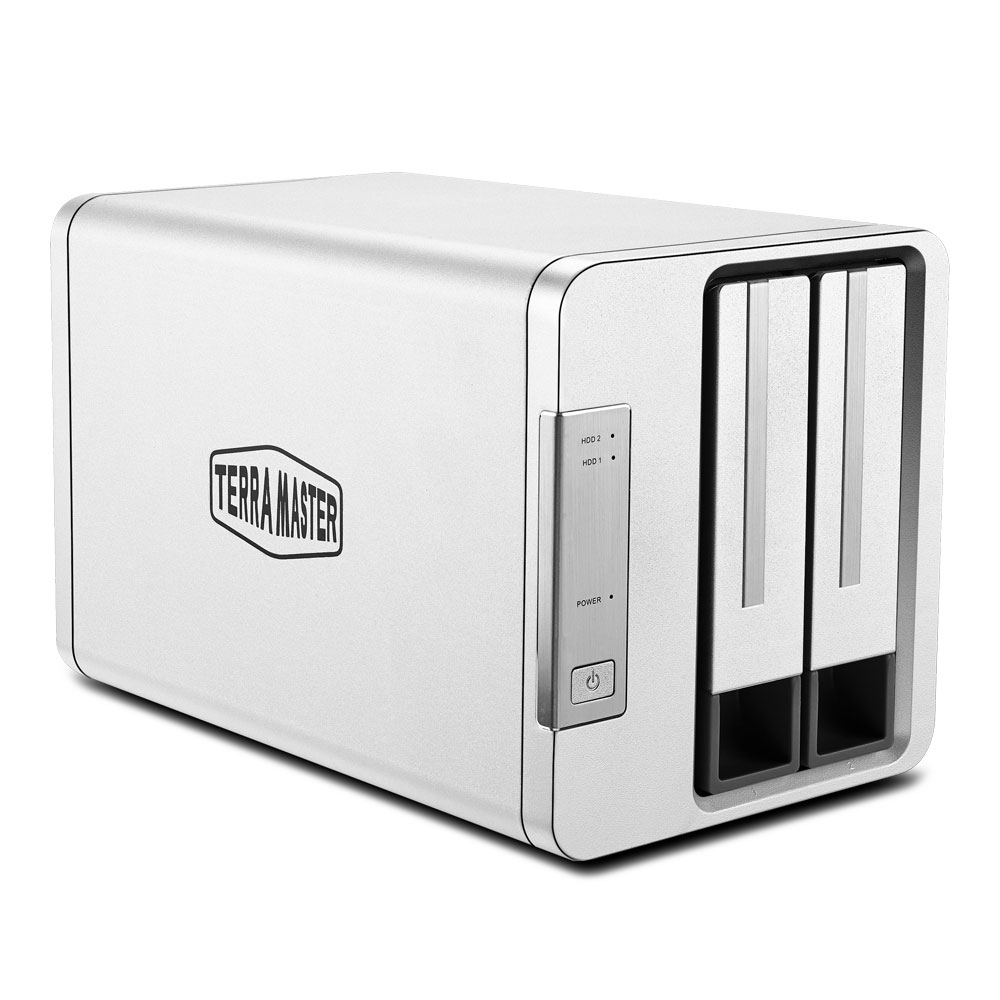

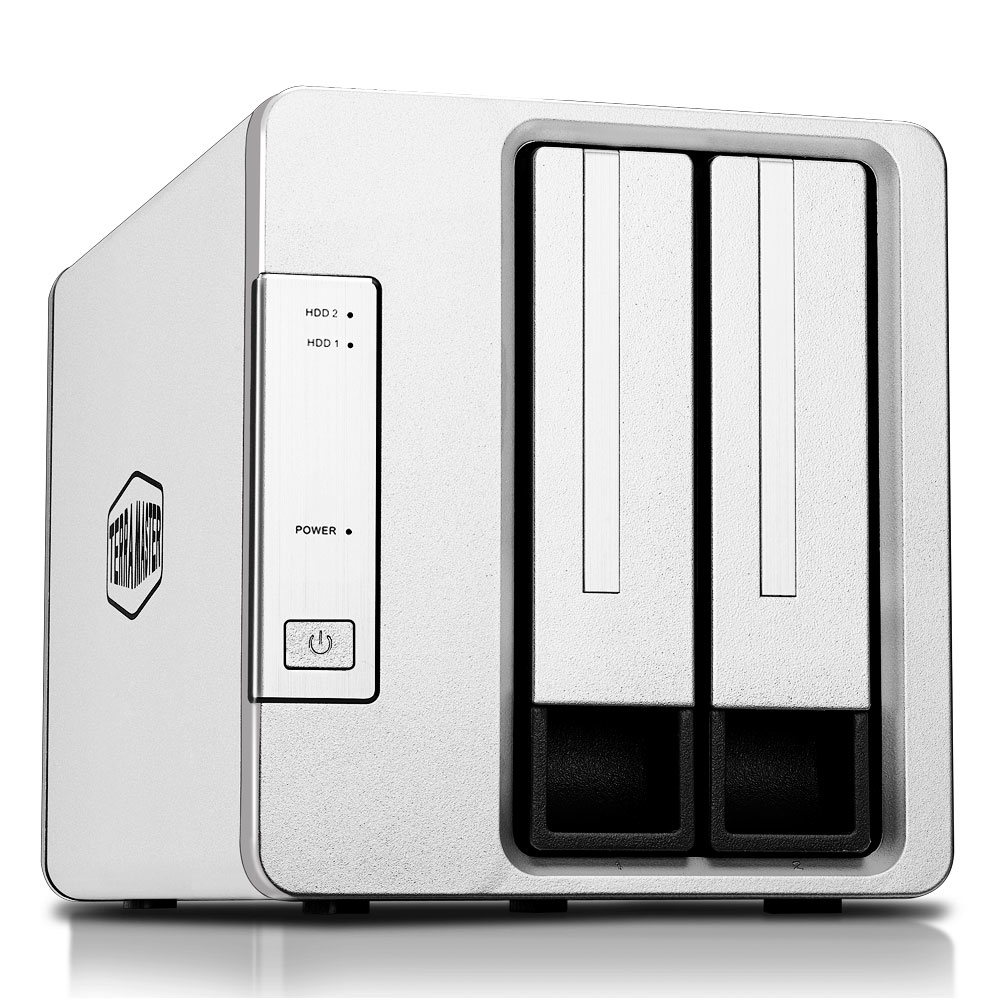

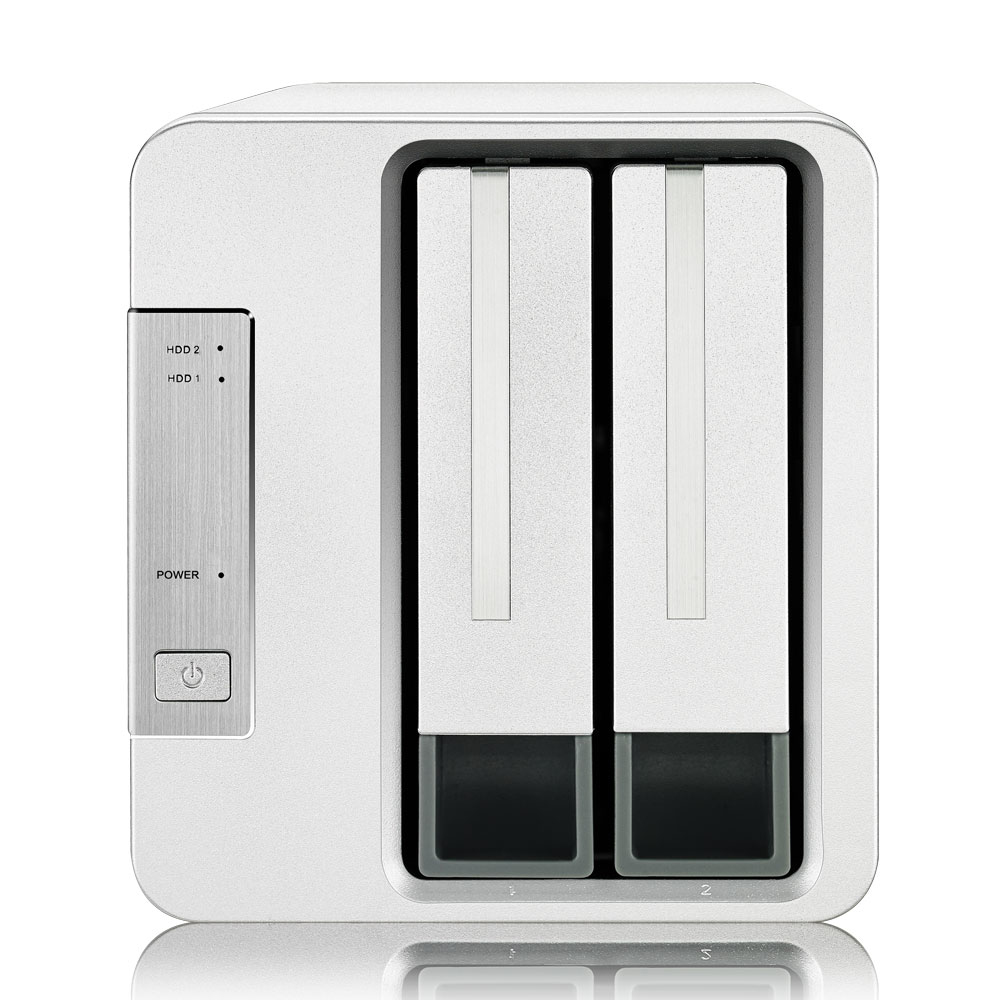

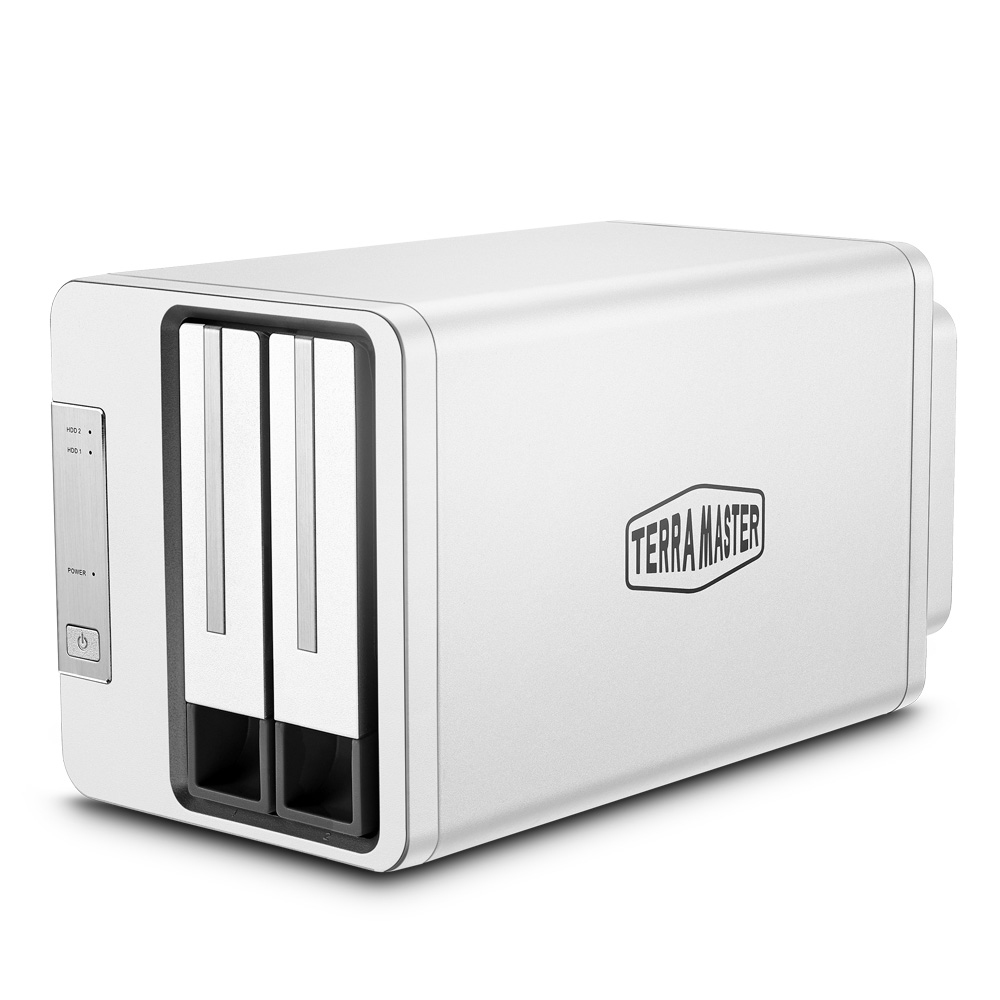

D2-310 disk array
0 TB Desktop Silver
Model D2-310EAN 6939236138543
47 specifications
- Noise18.6 dB
- Weight1.3 kg
- ColourSilver
- Storage drives installedNo
- USB connectivityYes
- Device classHome & Home Office
Overview
- Noise
- 18.6 dB
- Weight
- 1.3 kg
- Colour
- Silver
- Storage drives installed
- No
- USB connectivity
- Yes
- Device class
- Home & Home Office
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- D2-310
- Part number
- D2-310
- EAN / UPC
- 6939236138543, 6939236139113
- Also known as
- TerraMaster D2-310 disk array 0 TB Desktop Silver
Specifications
47 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Maximum supported storage capacity | 32 TB |
| Storage drive interface | Serial ATA |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, JBOD |
| Data transfer rate | 5 Gbit/s |

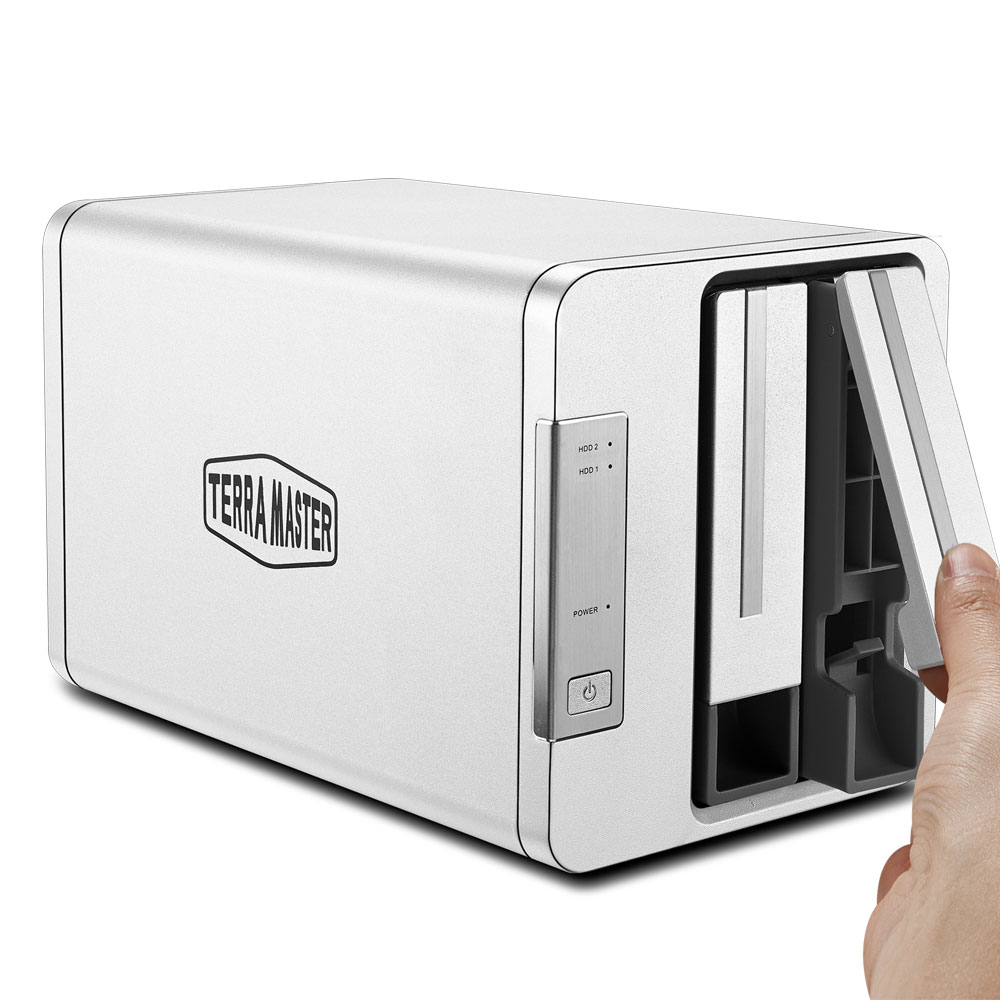

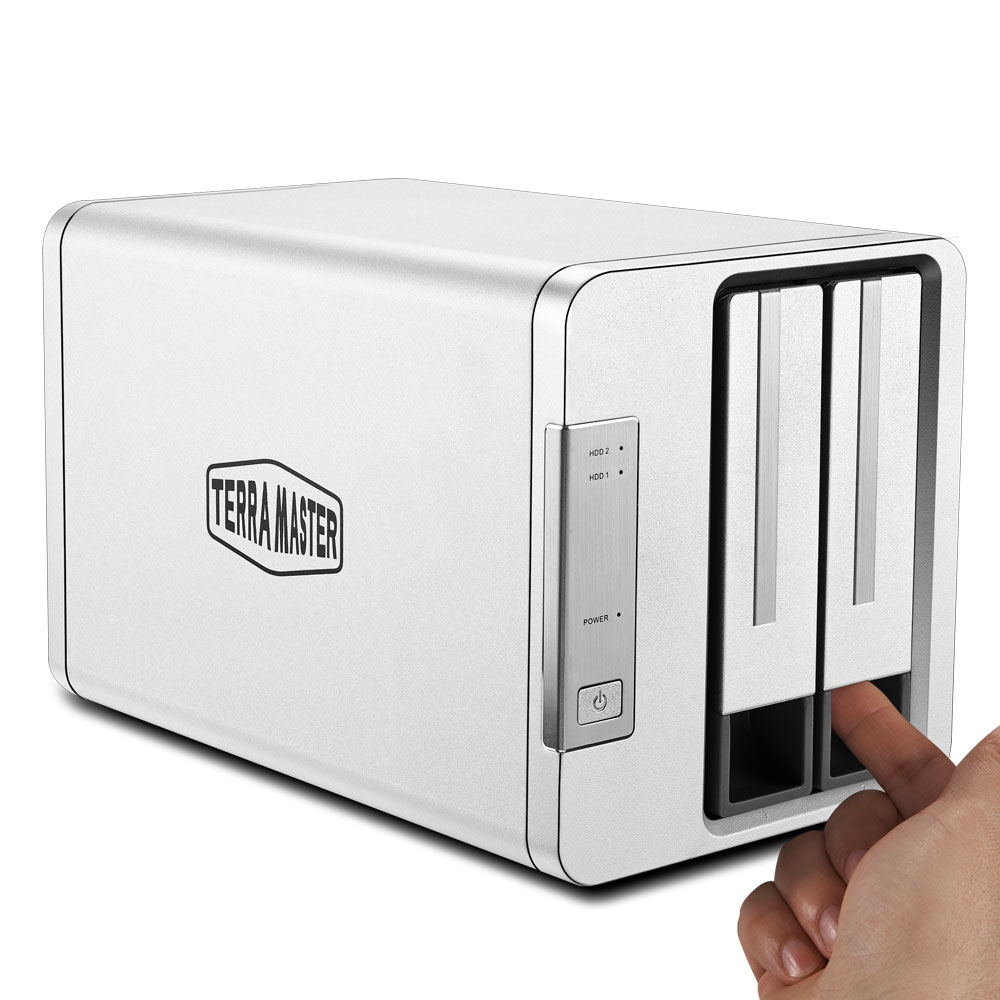

| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Chassis type | Desktop |
| Product colour | Silver |
| LED indicators | HDD, Power |

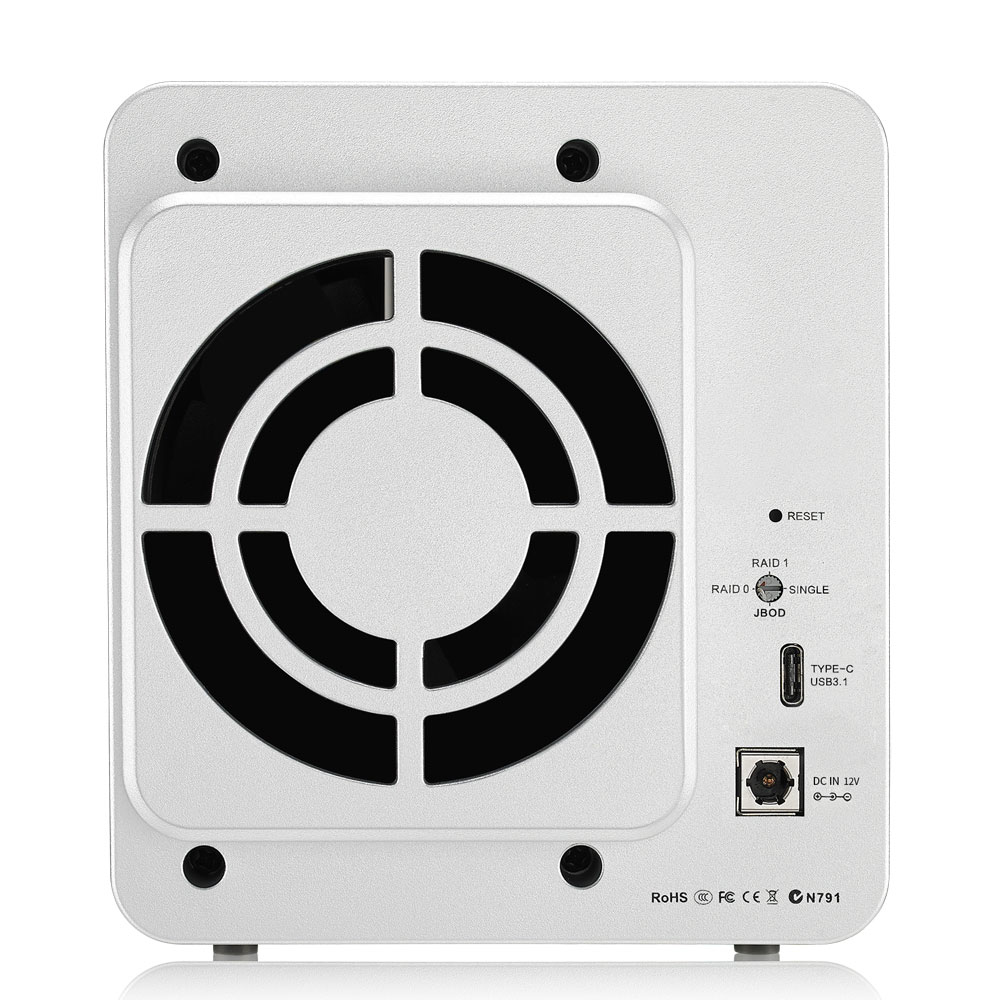

| Cooling | Yes |
| Noise level | 18.6 dB |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Certification | CE, FCC, CCC, KC, WEEE |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 40 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 25.6 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Mac operating systems supported | macOS |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 133 mm |
| Height | 227 mm |
| Weight | 1.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 170 mm |
| Package height | 258 mm |
| Package weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB Type-A to USB Type-C |
| Number of adapters included | 1 pc(s) |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
