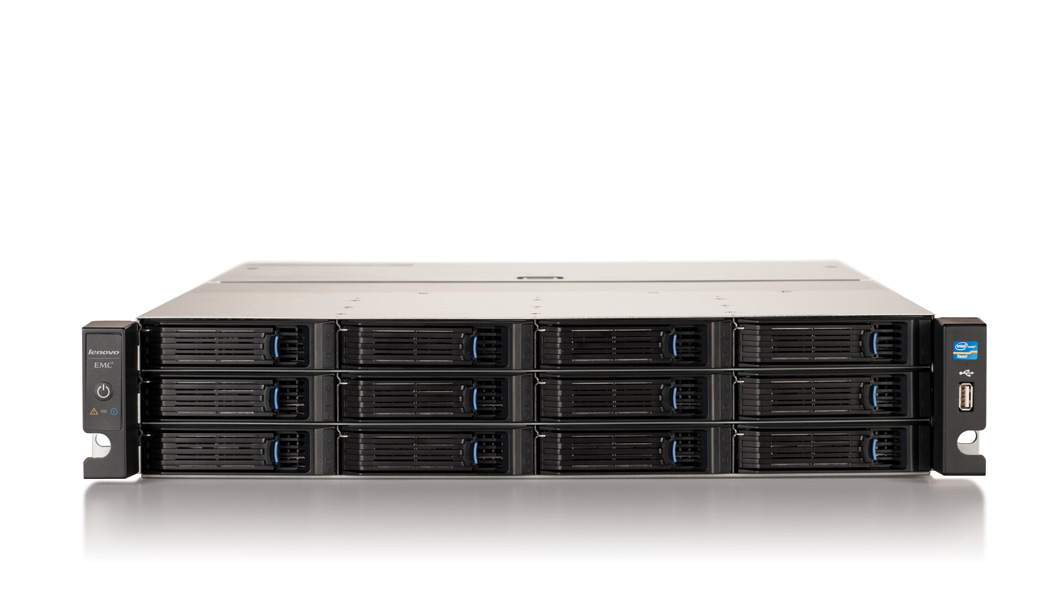

px12-450r disk array
8 TB Rack (2U) Black, Metallic
Model px12-450rPart no. 70BR9004WWEAN 8877709649678
42 specifications
- Noise48.5 dB
- Weight16.6 kg
- ColourBlack, Metallic
- Storage drives installedYes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
- Device classLarge Enterprise Business
Overview
- Noise
- 48.5 dB
- Weight
- 16.6 kg
- Colour
- Black, Metallic
- Storage drives installed
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- Device class
- Large Enterprise Business
- Brand
- Lenovo
- Category
- Disk Array
- Model
- px12-450r
- Part numbers
- 70BR9004WW, 70BR9001WW, 70BR9002WW, 70BR9003WW, 70BR9005WW, 70BR9006WW +1 more
- EAN / UPC
- 8877709649678, 012303194652, 803983038264, 887770964905 +13 more
- Also known as
- Lenovo px12-450r disk array 8 TB Rack (2U) Black, Metallic
Specifications
42 specifications in 9 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Total installed storage capacity | 8 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Maximum supported storage capacity | 48 TB |
| Storage drive capacity | 2 GB |
| Storage drive interface | Serial ATA |
| Storage drive size | 3.5" |
| RAID levels | 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| HDD speed | 7200 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 2.0 ports quantity | 3 |
| Host ports | 4 |
| RJ-45 ports quantity | 1 |
| Serial interface type | SATA |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Internal | Yes |
| Product colour | Black, Metallic |
| Noise level | 48.5 dB |
| Networking standards | IEEE 802.3, IEEE 802.3u |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 542.9 mm |
| Depth | 482.6 mm |
| Height | 88.9 mm |
| Weight | 16.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 825.5 mm |
| Package depth | 600.1 mm |
| Package height | 228.6 mm |
| Package weight | 23.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
