TD2 Thunderbolt 3
Model TD2 Thunderbolt 3Part no. TD2-THUNDERBOLT3
48 specifications
- Noise18.6 dB
- Weight1.4 kg
- ColourGrey
- Storage drives installedNo
- Chassis typeDesktop
- Power supply unit (PSU) capacity90 W
Overview
- Noise
- 18.6 dB
- Weight
- 1.4 kg
- Colour
- Grey
- Storage drives installed
- No
- Chassis type
- Desktop
- Power supply unit (PSU) capacity
- 90 W
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- TD2 Thunderbolt 3
- Part number
- TD2-THUNDERBOLT3
- Also known as
- TerraMaster TD2 Thunderbolt 3 disk array 0 TB Desktop Grey
Specifications
48 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, JBOD |
| Data transfer rate | 40 Gbit/s |
| Hot-swap drive bays | Yes |

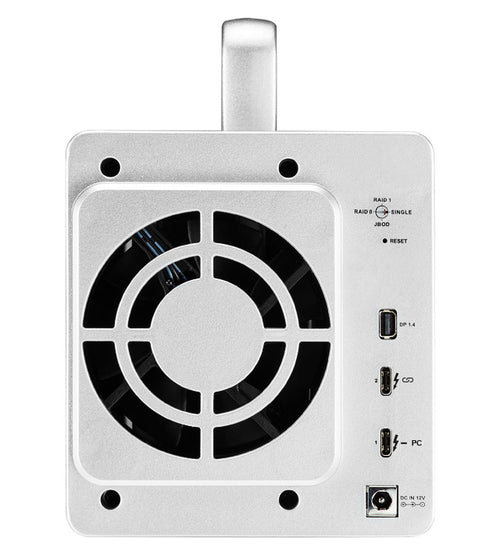

Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 2 |
| Thunderbolt version | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Grey |
| LED indicators | HDD, Power |
| Cooling | Yes |
| Noise level | 18.6 dB |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 90 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 65.6 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 173 mm |
| Height | 227 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 258 mm |
| Package weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Thunderbolt |
| Number of adapters included | 1 pc(s) |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), KC, RoHS |
