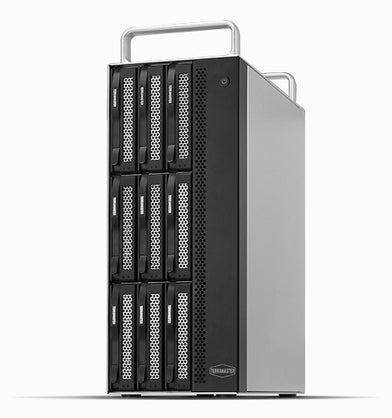

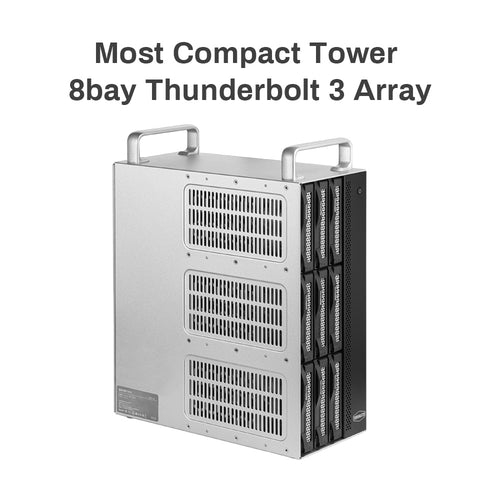

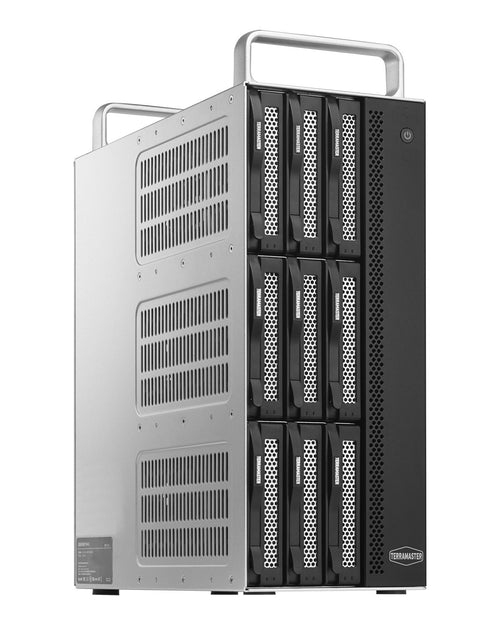

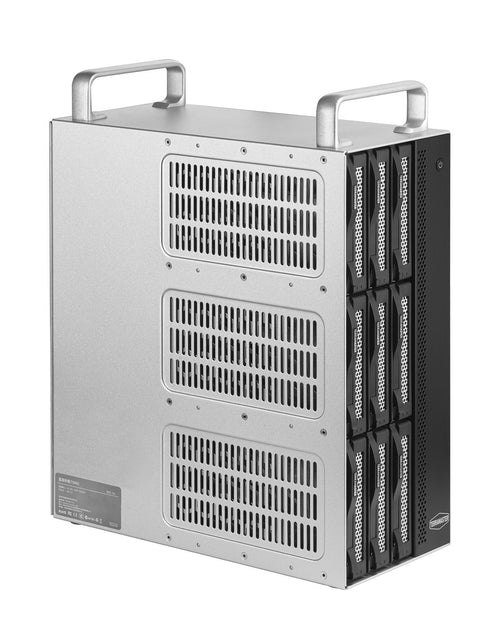

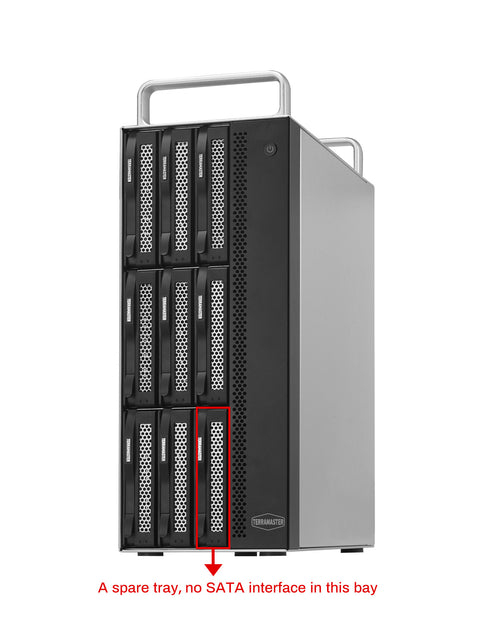

D8-332 disk array
0 TB Desktop Aluminium
Model D8-332EAN 6939236142298
43 specifications
- Noise31.2 dB
- Weight6.5 kg
- ColourAluminium
- Storage drives installedNo
- Thunderbolt technologyYes
- Chassis typeDesktop
Overview
- Noise
- 31.2 dB
- Weight
- 6.5 kg
- Colour
- Aluminium
- Storage drives installed
- No
- Thunderbolt technology
- Yes
- Chassis type
- Desktop
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- D8-332
- Part number
- D8-332
- EAN / UPC
- 6939236142298
- Also known as
- TerraMaster D8-332 disk array 0 TB Desktop Aluminium
Specifications
43 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 8 |

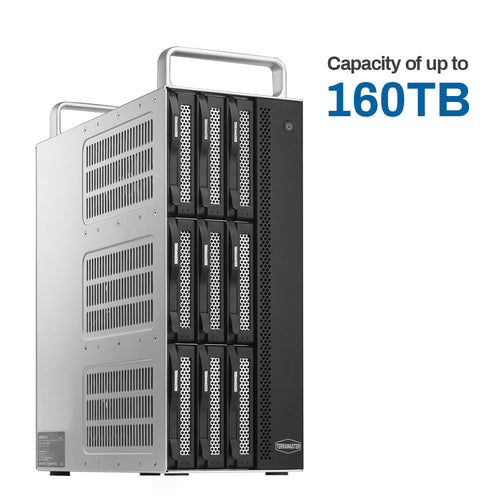

| Maximum supported storage capacity | 160 TB |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|

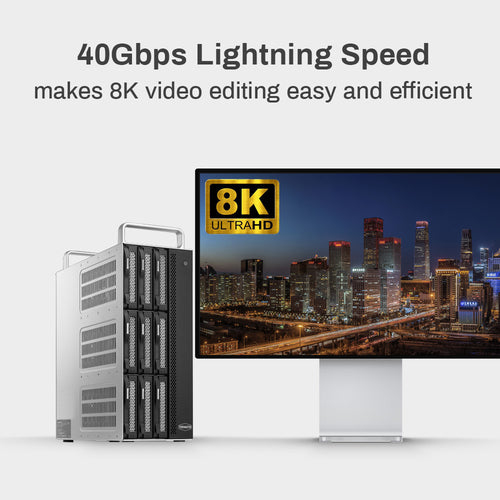

| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 2 |
| Thunderbolt version | 3 |

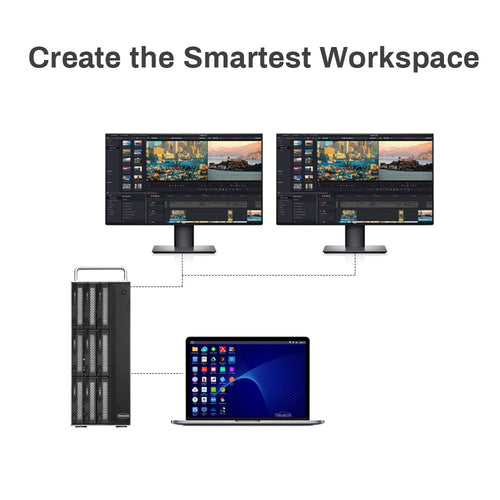

| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Aluminium |
| Cooling | Yes |

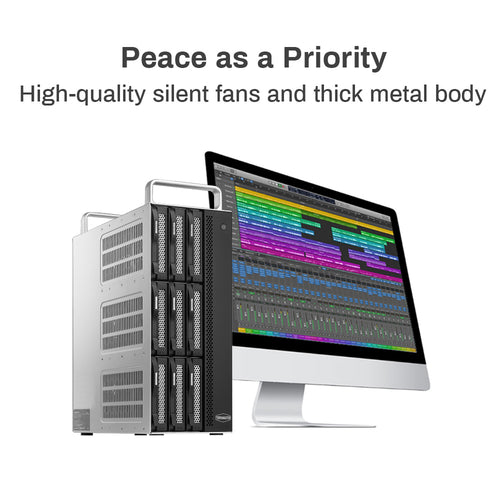

| Noise level | 31.2 dB |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 96.8 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 295 mm |
| Height | 334 mm |
| Weight | 6.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 225 mm |
| Package depth | 390 mm |
| Package height | 467 mm |
| Package weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Thunderbolt |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), KC, RoHS |
| Warranty period | 2 year(s) |
