D2 Thunderbolt 3
Model D2 Thunderbolt 3Part no. D2-THUNDERBOLT3/28TB-IWEAN 6939236140072
41 specifications
- ColourGrey
- Storage drives installedYes
- USB connectivityNo
- Chassis typeDesktop
- Power supply unit (PSU) capacity40 W
- Width119 mm
Overview
- Colour
- Grey
- Storage drives installed
- Yes
- USB connectivity
- No
- Chassis type
- Desktop
- Power supply unit (PSU) capacity
- 40 W
- Width
- 119 mm
- Brand
- TerraMaster
- Category
- Disk Array
- Model
- D2 Thunderbolt 3
- Part numbers
- D2-THUNDERBOLT3/28TB-IW, D2-THUNDERBOLT3/8TB-IW, D2-THUNDERBOLT3, D2-THUNDERBOLT3/16TB-IW, D2-THUNDERBOLT3/4TB-IW, D2-THUNDERBOLT3/6TB-IW +4 more
- EAN / UPC
- 6939236140072
- Also known as
- TerraMaster D2 Thunderbolt 3 disk array Desktop Grey
Specifications
41 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 2 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 2 |
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, JBOD |
| Data transfer rate | 40 Gbit/s |
| Hot-swap drive bays | Yes |

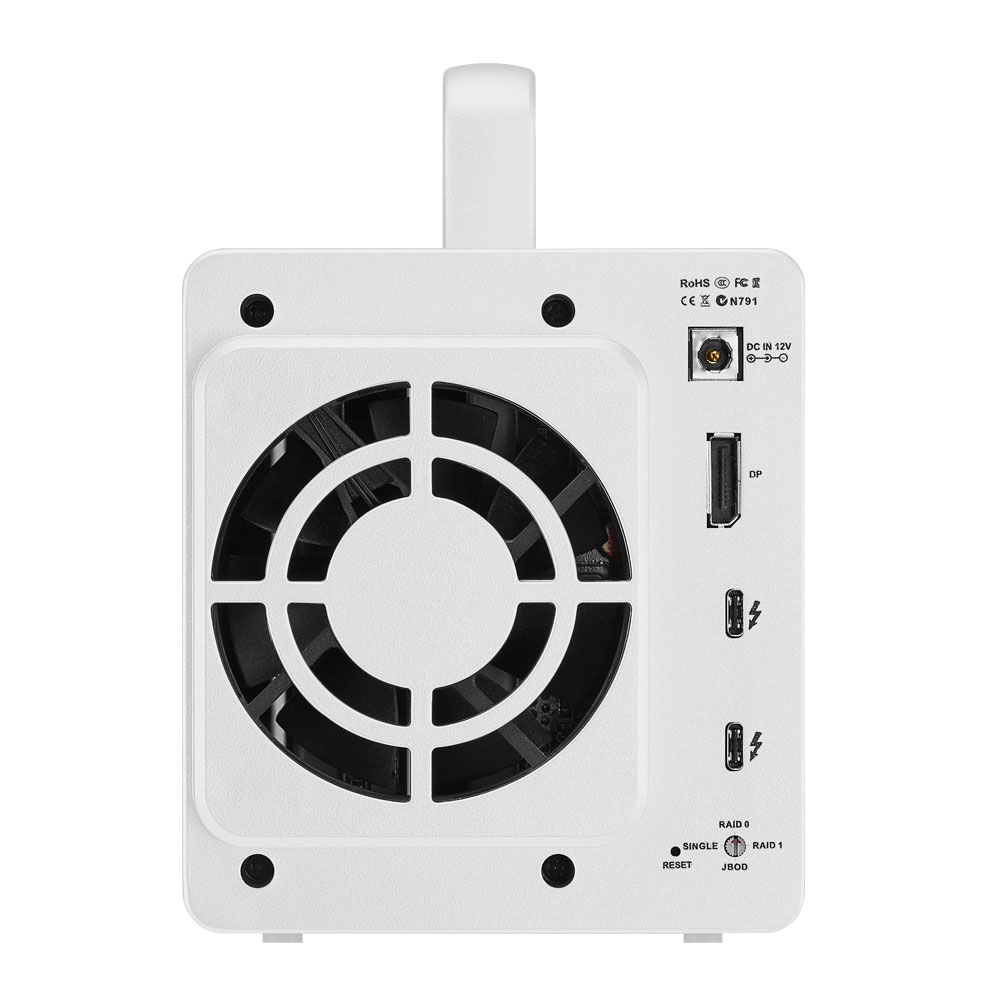

Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 2 |
| Thunderbolt version | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Grey |
| LED indicators | HDD, Power |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Built-in display | No |
| Certification | CE, FCC, CCC, KC |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 40 W |
| Number of power supply units | 1 |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| DC output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 173 mm |
| Height | 227 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Thunderbolt |
| Number of adapters included | 1 pc(s) |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
