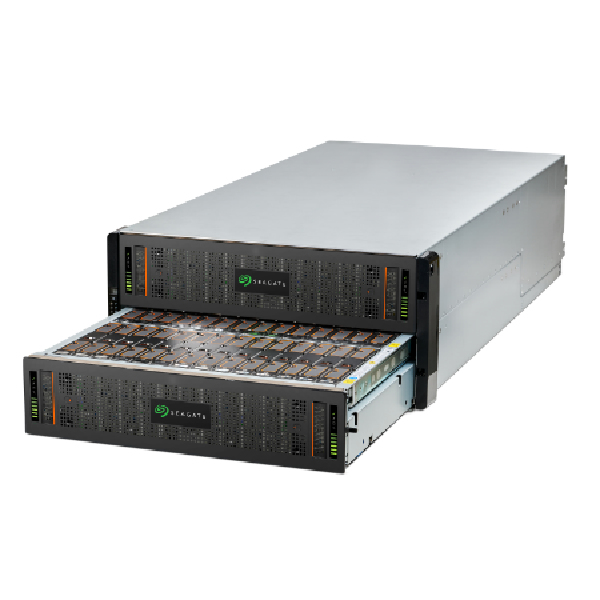

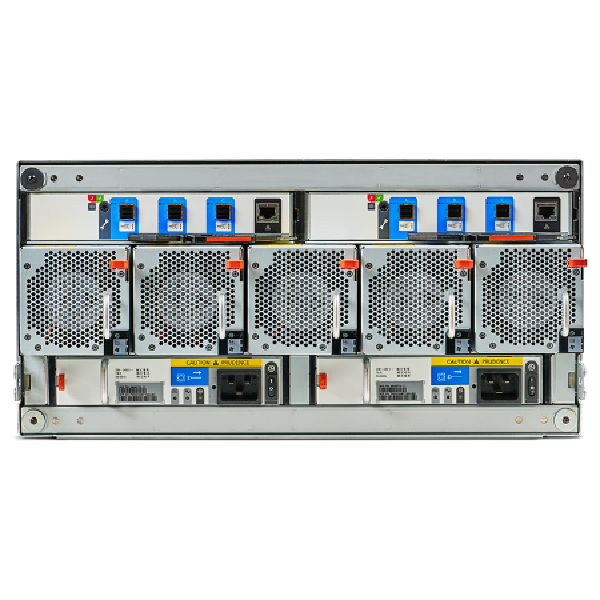

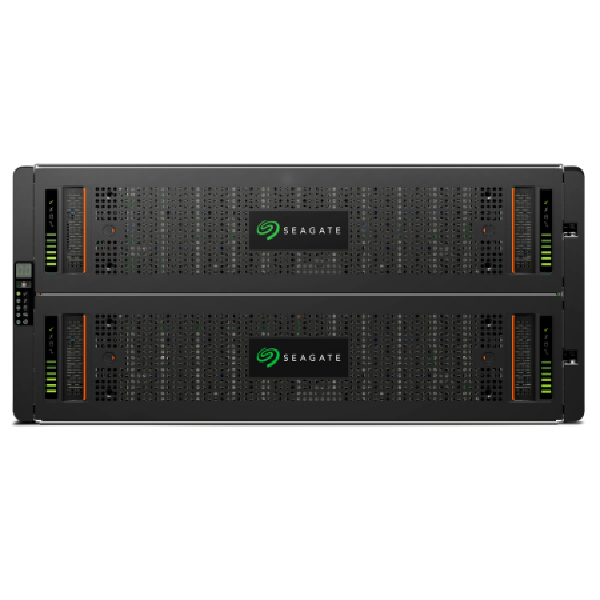

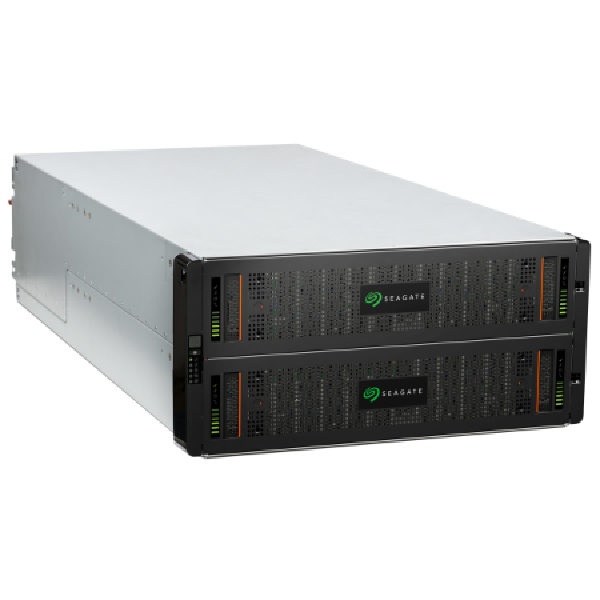

Exos E 5U84
Model Exos E 5U84Part no. D4865X000000DAEAN 5054444479958
32 specifications
- Weight135 kg
- ColourBlack, Metallic
- Storage drives installedNo
- USB connectivityYes
- Chassis typeRack (5U)
- Power supply unit (PSU) capacity2200 W
Overview
- Weight
- 135 kg
- Colour
- Black, Metallic
- Storage drives installed
- No
- USB connectivity
- Yes
- Chassis type
- Rack (5U)
- Power supply unit (PSU) capacity
- 2200 W
- Brand
- Seagate
- Category
- Disk Array
- Model
- Exos E 5U84
- Part number
- D4865X000000DA
- EAN / UPC
- 5054444479958, 8592978411701
- Also known as
- Seagate Exos E 5U84 disk array Rack (5U) Black, Metallic
Specifications
32 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Maximum supported storage capacity | 1008 TB |
| Storage drive interface | NL-SAS, Serial Attached SCSI (SAS) |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS |
| Storage drive sizes supported | 3.5" |
| RAID levels | 0, 1, 3, 5, 6, 10, 50 |
| Data transfer rate | 7 Gbit/s |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| SFP+ module slots quantity | 8 |
| RJ-45 ports quantity | 2 |
| Remote management port | RJ-45 (Gigabit) |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (5U) |
| Product colour | Black, Metallic |
| LED indicators | Yes |
| Cooling | Yes |
| Hot-swap fan module | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 2200 W |
| Number of power supply units | 2 |
| AC input voltage | 180 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 933 mm |
| Height | 220 mm |
| Weight | 135 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
