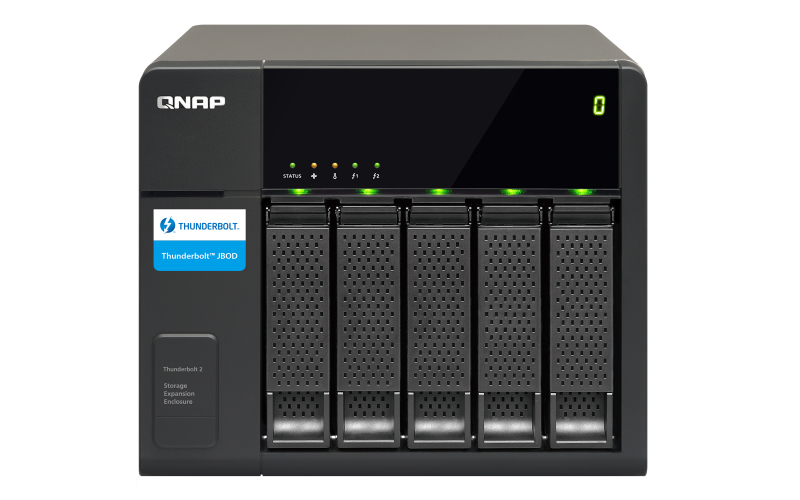

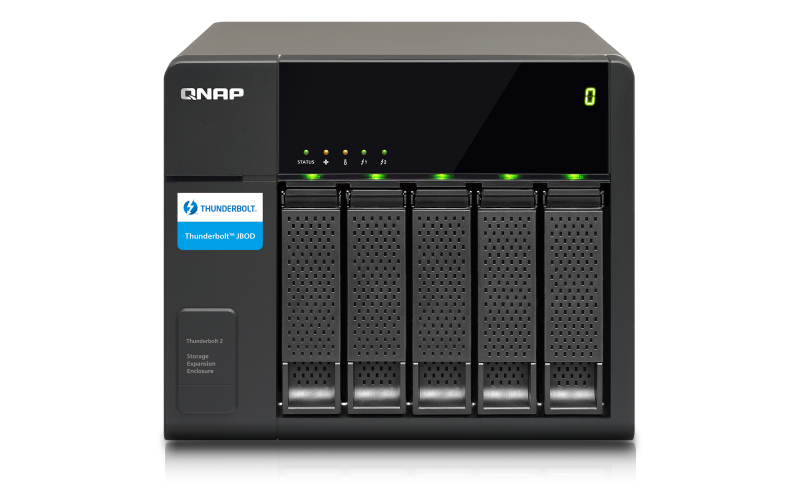

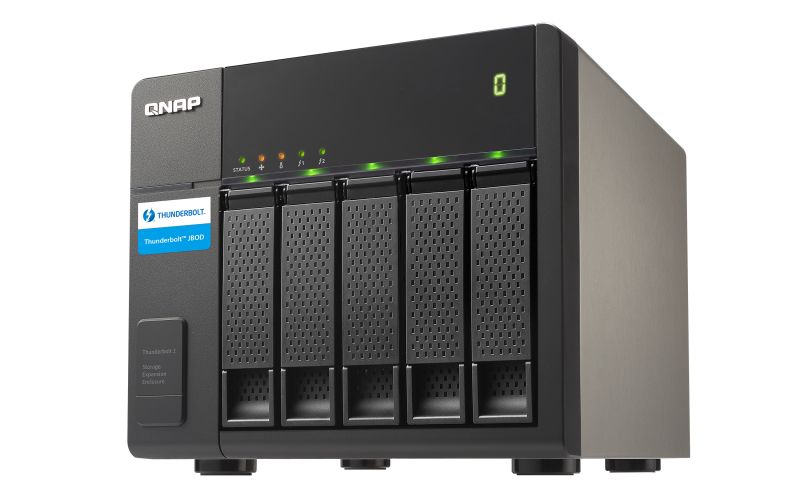

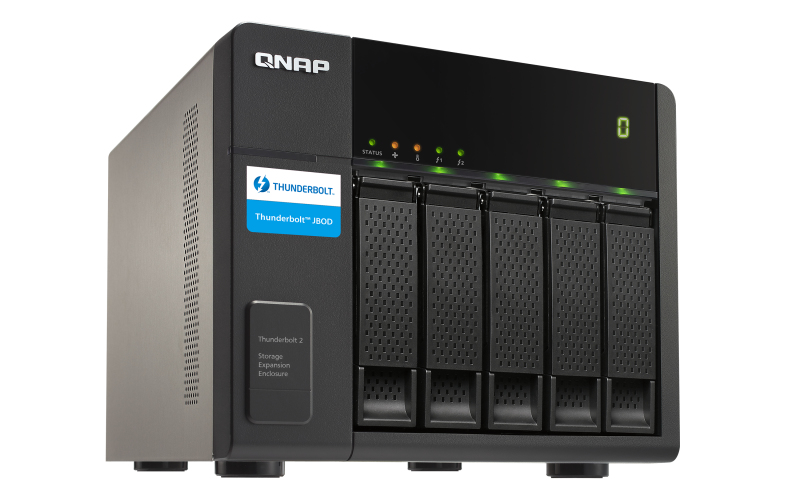

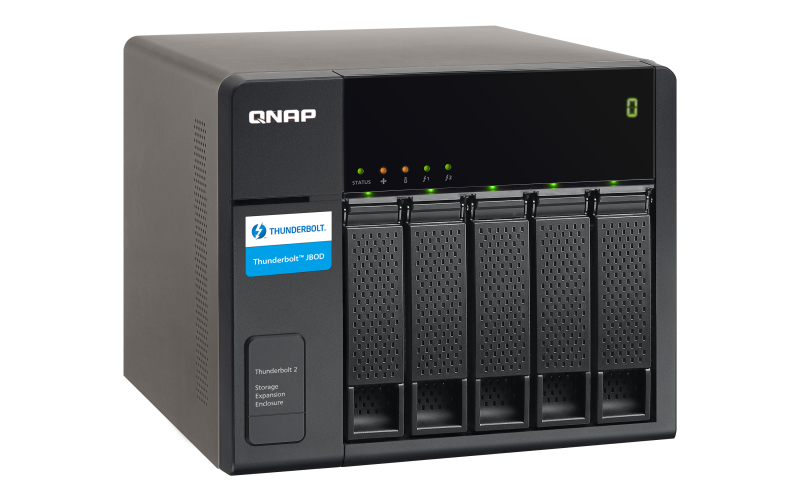

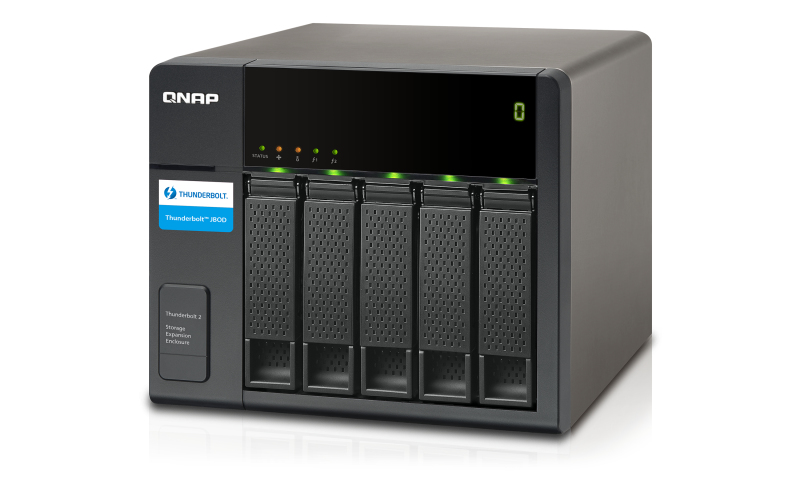

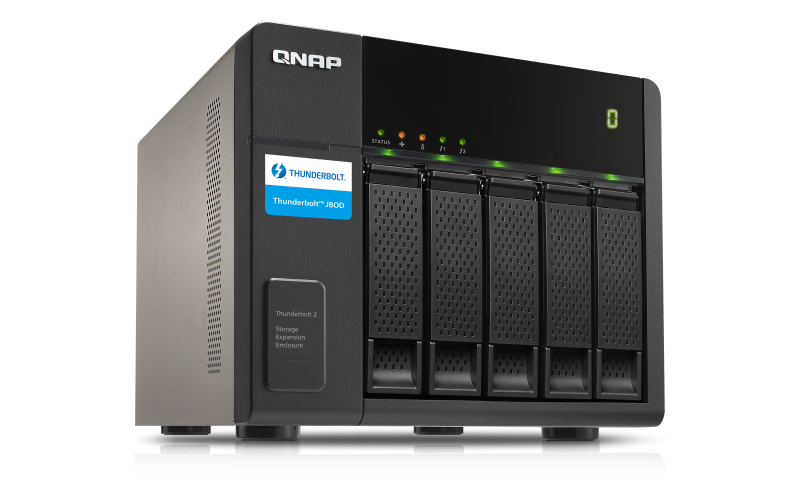

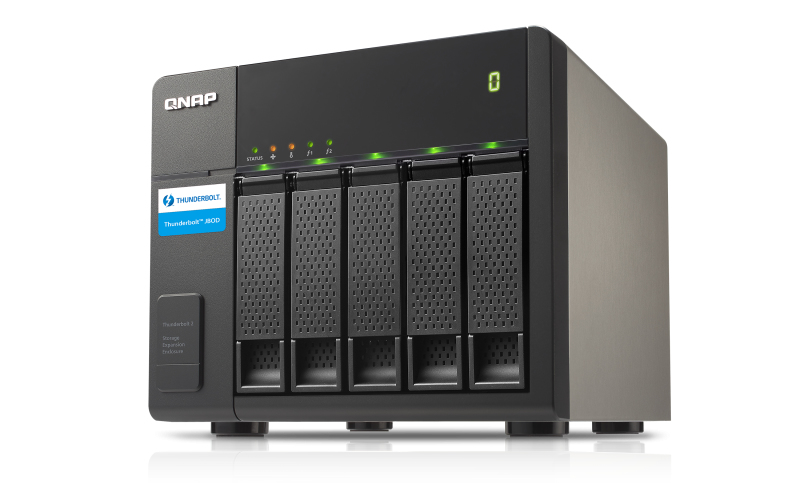

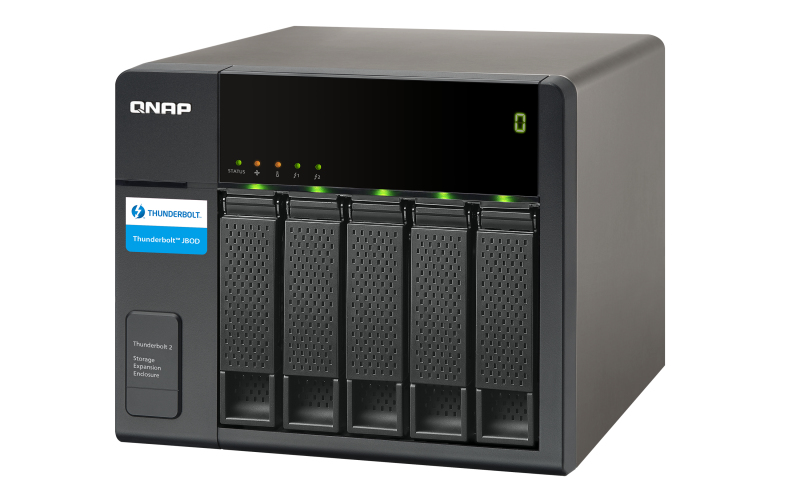

TX-500P/10TB-ULTRA disk array Tower Black
Model TX-500P/10TB-ULTRAEAN 5051868086724
39 specifications
- Noise21.4 dB
- Weight5.1 kg
- ColourBlack
- Storage drives installedYes
- USB connectivityNo
- Device classSmall & Medium Business
Overview
- Noise
- 21.4 dB
- Weight
- 5.1 kg
- Colour
- Black
- Storage drives installed
- Yes
- USB connectivity
- No
- Device class
- Small & Medium Business
- Brand
- QNAP
- Category
- Disk Array
- Model
- TX-500P/10TB-ULTRA
- Part number
- TX-500P/10TB-ULTRA
- EAN / UPC
- 5051868086724
- Also known as
- QNAP TX-500P/10TB-ULTRA disk array Tower Black
Specifications
39 specifications in 8 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 5 |
| Total installed storage capacity | 10 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 5 |
| Storage drive capacity | 2 TB |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| Hot-swap drive bays | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Thunderbolt technology | Yes |
| Thunderbolt ports quantity | 2 |
| Thunderbolt version | 2 |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Tower |
| Product colour | Black |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cooling | Yes |
| Noise level | 21.4 dB |
| Built-in display | Yes |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 250 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | No |
| Power consumption (typical) | 33.61 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210.6 mm |
| Depth | 235.4 mm |
| Height | 185.2 mm |
| Weight | 5.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Drive bay locking | No |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 10 - 95% |
