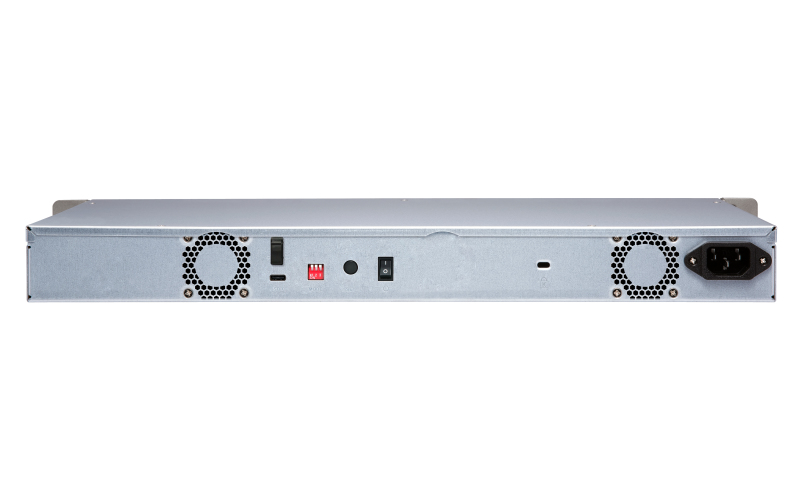

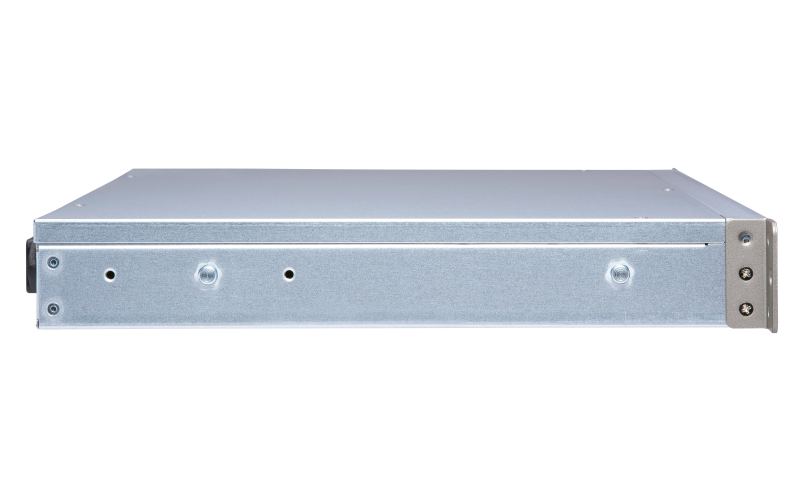

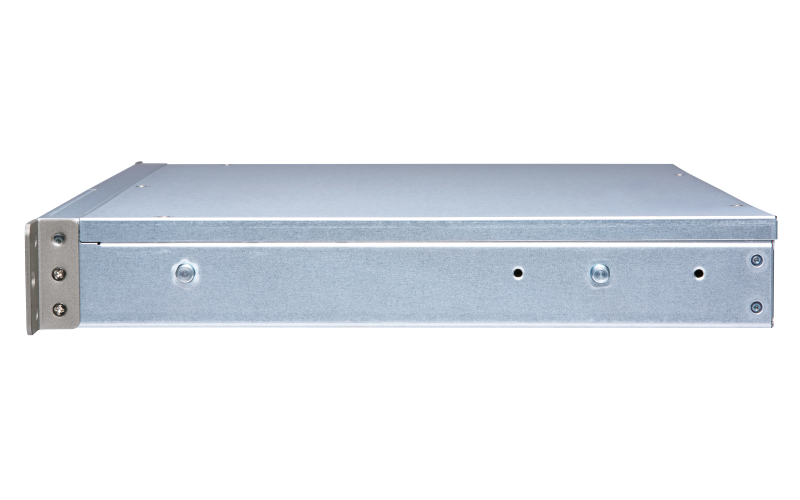

TR-004U
Model TR-004UPart no. TR-004U/40TB-EXOSEAN 5050914123642
39 specifications
- Weight4.77 kg
- ColourBlack, Grey
- Storage drives installedYes
- Device classHome & Home Office
- Power supply unit (PSU) capacity100 W
- Width439 mm
Overview
- Weight
- 4.77 kg
- Colour
- Black, Grey
- Storage drives installed
- Yes
- Device class
- Home & Home Office
- Power supply unit (PSU) capacity
- 100 W
- Width
- 439 mm
- Brand
- QNAP
- Category
- Disk Array
- Model
- TR-004U
- Part numbers
- TR-004U/40TB-EXOS, TR-004U/48TB-IW, TR-004U/48TB-IWP, TR-004U/56TB-IWP, TR-004U/32TB-RED, TR-004U/64TB-IW +29 more
- EAN / UPC
- 5050914123642, 5050914123765, 5051868158841, 5051868158858 +17 more
- Also known as
- QNAP TR-004U
Specifications
39 specifications in 10 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 4 |
| Total installed storage capacity | 24 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Storage drive capacity | 6 TB |
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5,3.5" |
| RAID levels | 0, 1, 5+S, 5, 10, JBOD |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Device class | Home & Home Office |
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Cooling | Yes |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 100 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 291 mm |
| Height | 44 mm |
| Weight | 4.77 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.67 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB Type-C to USB Type-A |
| Power cables quantity | 1 |
| Drive bay locking | Yes |
| Screws included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | 20 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
