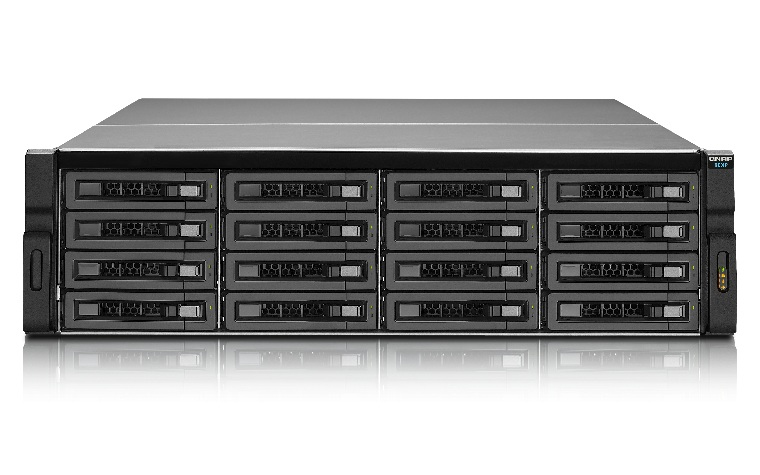

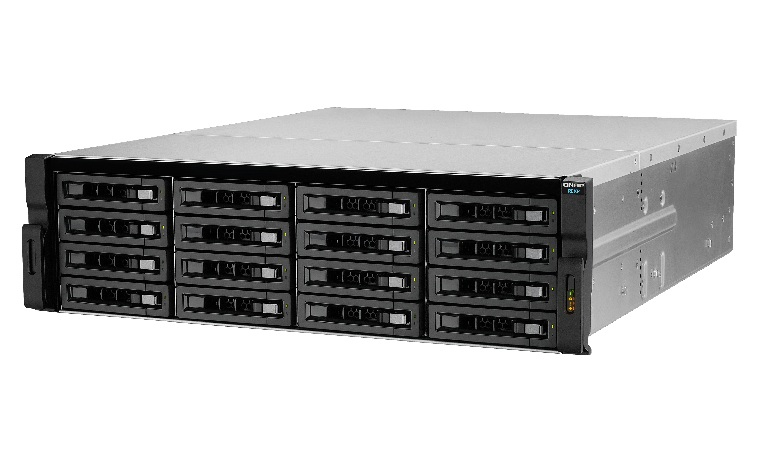

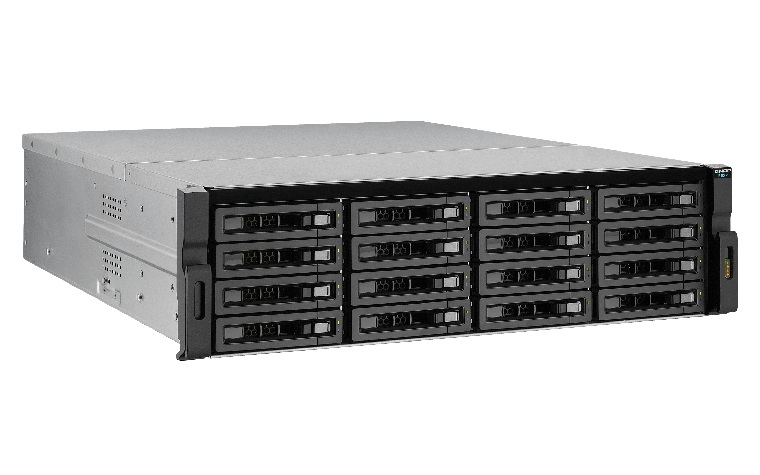

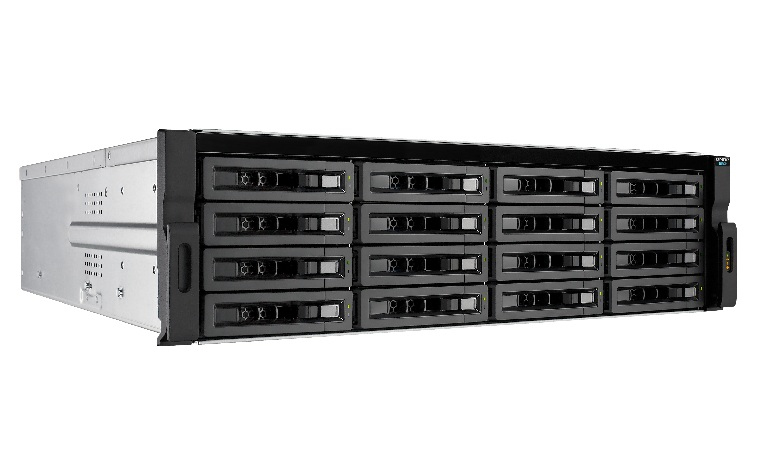

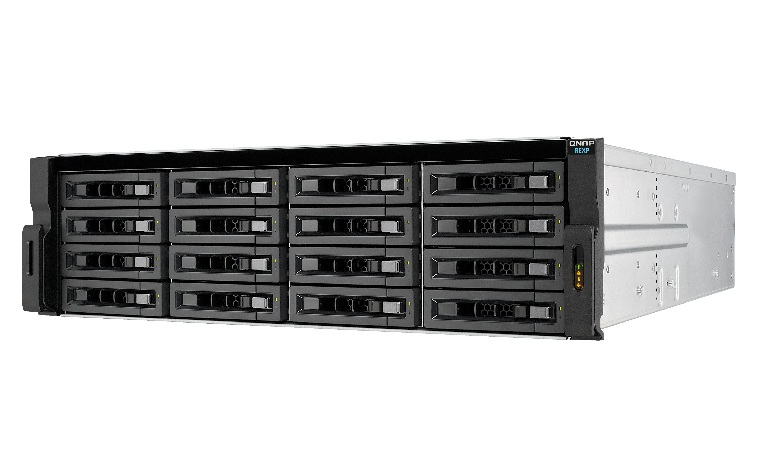

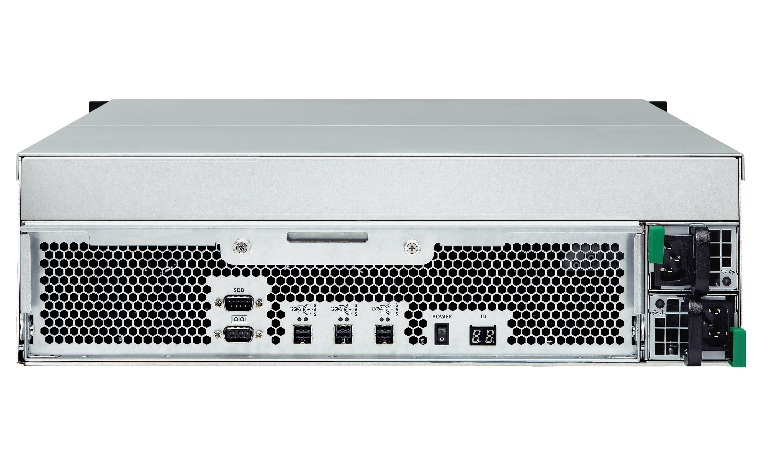

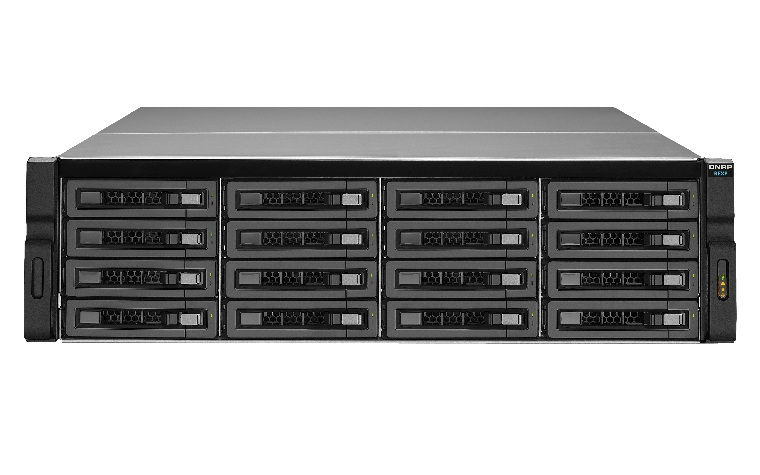

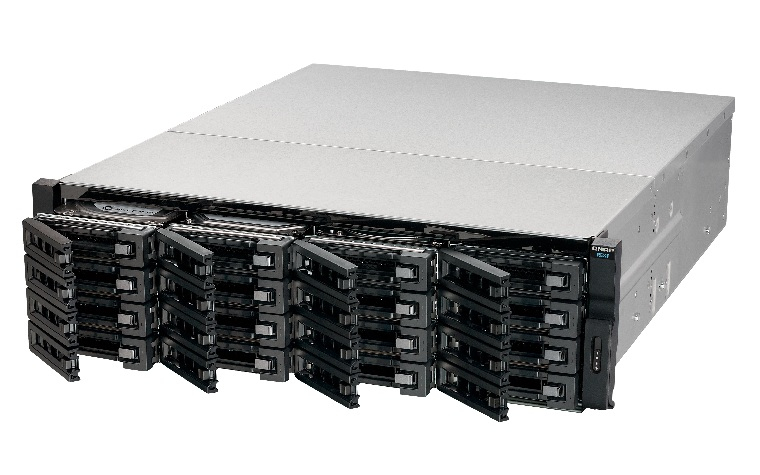

REXP-1620U-RP disk array
0 TB Rack (3U) Black
Model REXP-1620U-RPPart no. REXP-1620U-RP/160TB-IW PROEAN 5050914999681
34 specifications
- Noise36.7 dB
- Weight18.1 kg
- ColourBlack
- Storage drives installedNo
- Device classLarge Enterprise Business
- Power supply unit (PSU) capacity650 W
Overview
- Noise
- 36.7 dB
- Weight
- 18.1 kg
- Colour
- Black
- Storage drives installed
- No
- Device class
- Large Enterprise Business
- Power supply unit (PSU) capacity
- 650 W
- Brand
- QNAP
- Category
- Disk Array
- Model
- REXP-1620U-RP
- Part numbers
- REXP-1620U-RP/160TB-IW PRO, REXP-1620U-RP, REXP-1620U-RP-16TB-EC, REXP-1620U-RP-32TB-EC, REXP-1620U-RP-32TB-EC-SAS, REXP-1620U-RP-32TB-SEAEN +34 more
- EAN / UPC
- 5050914999681, 885022009145, 4053162995512, 4712511127836 +46 more
- Also known as
- QNAP REXP-1620U-RP disk array 0 TB Rack (3U) Black
Specifications
34 specifications in 9 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 16 |
| Maximum supported storage capacity | 1216 TB |
| Supported storage drive interfaces | SAS, Serial ATA, Serial ATA II, Serial ATA III |
| RAID levels | 0, 1, 5, 6 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | No |
| Host ports | 4 |
| SAS host port | Yes |
| Serial interface type | SATA |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (3U) |
| Product colour | Black |
| LED indicators | Fan fail, HDD, LAN, Status, System |
| Noise level | 36.7 dB |
| Number of fans | 3 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 650 W |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 204.4 W |
| AC input voltage | 90-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442.4 mm |
| Depth | 528.3 mm |
| Height | 130 mm |
| Weight | 18.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 25.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, SAS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
