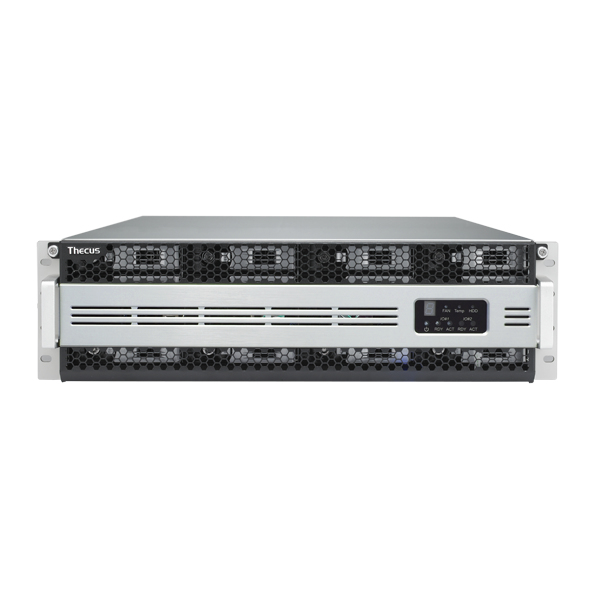

Thecus D16000
Model Thecus D16000Part no. D16000/96TBNLWDEAN 5056006115885
24 specifications
- Weight26 kg
- ColourBlack, Silver
- Storage drives installedYes
- Host ports4
- Device classSmall & Medium Business
- Power supply unit (PSU) capacity500 W
Overview
- Weight
- 26 kg
- Colour
- Black, Silver
- Storage drives installed
- Yes
- Host ports
- 4
- Device class
- Small & Medium Business
- Power supply unit (PSU) capacity
- 500 W
- Brand
- Origin Storage
- Category
- Disk Array
- Model
- Thecus D16000
- Part numbers
- D16000/96TBNLWD, D16000/16TBNLWD, D16000/16TBNL, D16000/32TBENASWD, D16000/32TBENAS, D16000/128TBNL +10 more
- EAN / UPC
- 5056006115885, 5056006115830, 5056006115762, 5056006115717 +12 more
- Also known as
- Origin Storage Thecus D16000 16 Bay NAS 16 x 1TB NLSATA Drives Installed
Specifications
24 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Total installed storage capacity | 16 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 16 |
| Storage drive capacity | 1 TB |
| Storage drive interface | Serial ATA III |
| Storage drive size | 3.5" |
| RAID levels | JBOD |
Ports & interfaces
| Specification | Value |
|---|---|
| Host ports | 4 |
| Mini-SAS host port | Yes |
Design
| Specification | Value |
|---|---|
| Device class | Small & Medium Business |
| Chassis type | Rack (3U) |
| Product colour | Black, Silver |
| LED indicators | Activity, Power |
| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 500 W |
| Redundant power supply (RPS) support | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 518 mm |
| Height | 130 mm |
| Weight | 26 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
