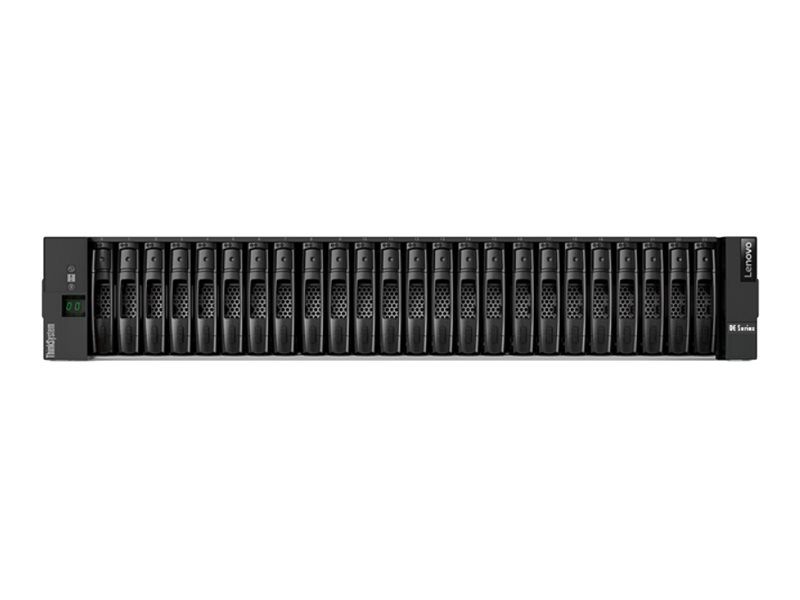

ThinkSystem DE240S
Model ThinkSystem DE240SPart no. 7Y68A000WWEAN 889488484935
24 specifications
- Weight27.6 kg
- ColourBlack
- Storage drives installedNo
- USB connectivityYes
- Chassis typeRack (2U)
- Power supply unit (PSU) capacity913 W
Overview
- Weight
- 27.6 kg
- Colour
- Black
- Storage drives installed
- No
- USB connectivity
- Yes
- Chassis type
- Rack (2U)
- Power supply unit (PSU) capacity
- 913 W
- Brand
- Lenovo
- Category
- Disk Array
- Model
- ThinkSystem DE240S
- Part numbers
- 7Y68A000WW, 7Y68A004EA
- EAN / UPC
- 889488484935, 8894884849358, 889488579860
- Also known as
- Lenovo ThinkSystem DE240S disk array Rack (2U) Black
Specifications
24 specifications in 7 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drive size | 2.5" |
| Supported storage drive interfaces | SAS |
| RAID levels | 0, 1, 3, 5, 6, 10 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connectivity | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 449 mm |
| Depth | 553 mm |
| Height | 85 mm |
| Weight | 27.6 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
