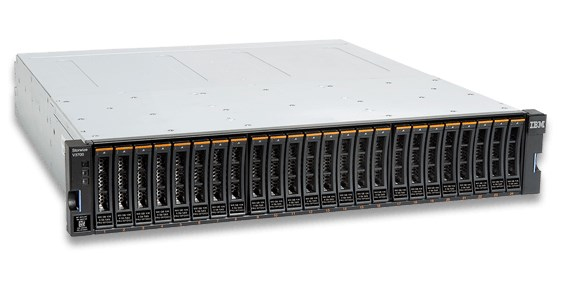

Storwize V3700+13x600GB
Model Storwize V3700+13x600GBPart no. 6099S2C/HDDKIT2EAN 4053162960848
30 specifications
- ColourBlack, Silver
- Storage drives installedYes
- Device classLarge Enterprise Business
- Width483 mm
- Operating temperature (T-T)10 - 35 °C
Overview
- Colour
- Black, Silver
- Storage drives installed
- Yes
- Device class
- Large Enterprise Business
- Width
- 483 mm
- Operating temperature (T-T)
- 10 - 35 °C
- Brand
- Lenovo
- Category
- Disk Array
- Model
- Storwize V3700+13x600GB
- Part number
- 6099S2C/HDDKIT2
- EAN / UPC
- 4053162960848
- Also known as
- Lenovo Storwize V3700+13x600GB disk array 7.8 TB Rack (2U) Black, Silver
Specifications
30 specifications in 5 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | Yes |
| Installed storage drive type | HDD |
| Number of storage drives installed | 13 |
| Total installed storage capacity | 7.8 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 48 TB |
| Storage drive capacity | 600 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| RAID levels | 0, 1, 5, 6 |
| Data transfer rate | 6 Gbit/s |
| Hot-swap drive bays | Yes |
| HDD speed | 10000 RPM |
Design
| Specification | Value |
|---|---|
| Device class | Large Enterprise Business |
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
| LED indicators | Yes |
| Redundant fans support | Yes |
| Supported network protocols | iSCSI |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 483 mm |
| Depth | 556 mm |
| Height | 87 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 80% |
