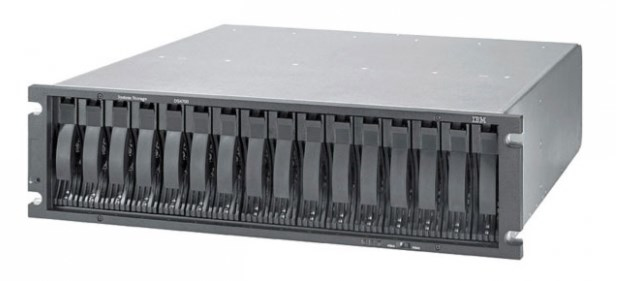

EXP395 disk array
0 TB Rack (3U)
Model EXP395Part no. 181492H
19 specifications
- Weight38.6 kg
- Storage drives installedNo
- Chassis typeRack (3U)
- Power supply unit (PSU) capacity600 W
- Width482.6 mm
Overview
- Weight
- 38.6 kg
- Storage drives installed
- No
- Chassis type
- Rack (3U)
- Power supply unit (PSU) capacity
- 600 W
- Width
- 482.6 mm
- Brand
- Lenovo
- Category
- Disk Array
- Model
- EXP395
- Part number
- 181492H
- Also known as
- Lenovo EXP395 disk array 0 TB Rack (3U)
Specifications
19 specifications in 4 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | HDD |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD |
| Number of storage drives supported | 16 |
| Maximum supported storage capacity | 16 TB |
| Storage drive interface | Serial ATA |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Hot-swap drive bays | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (3U) |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 600 W |
| Number of power supply units | 2 |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482.6 mm |
| Depth | 571.5 mm |
| Height | 129.5 mm |
| Weight | 38.6 kg |
