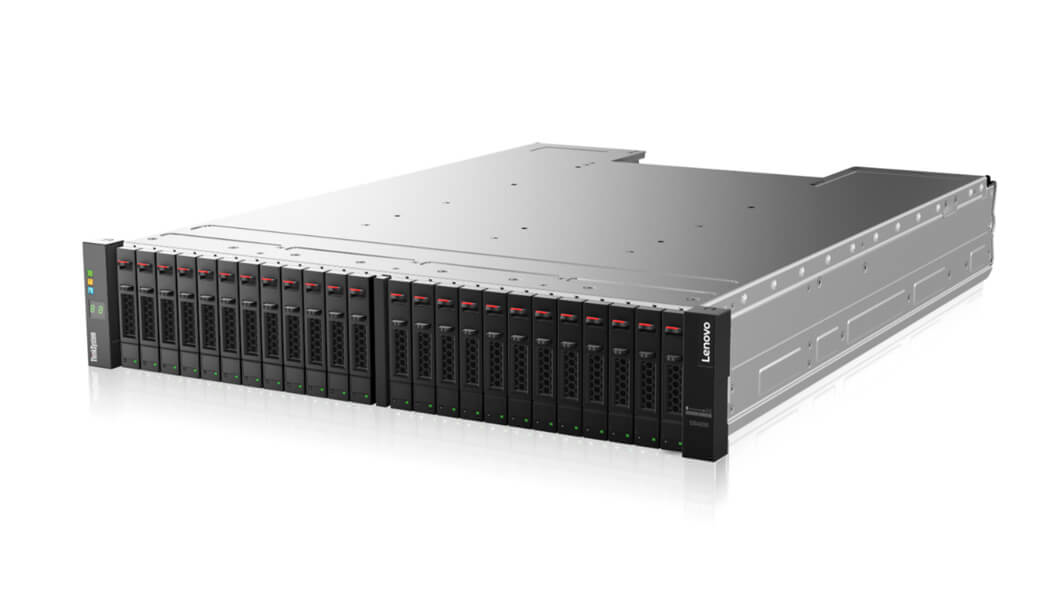

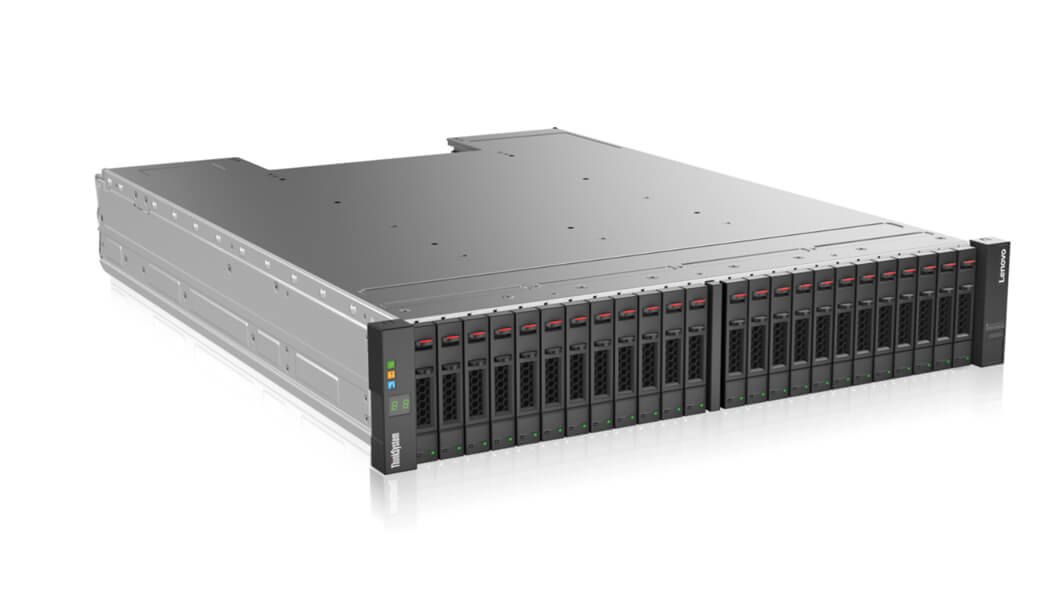

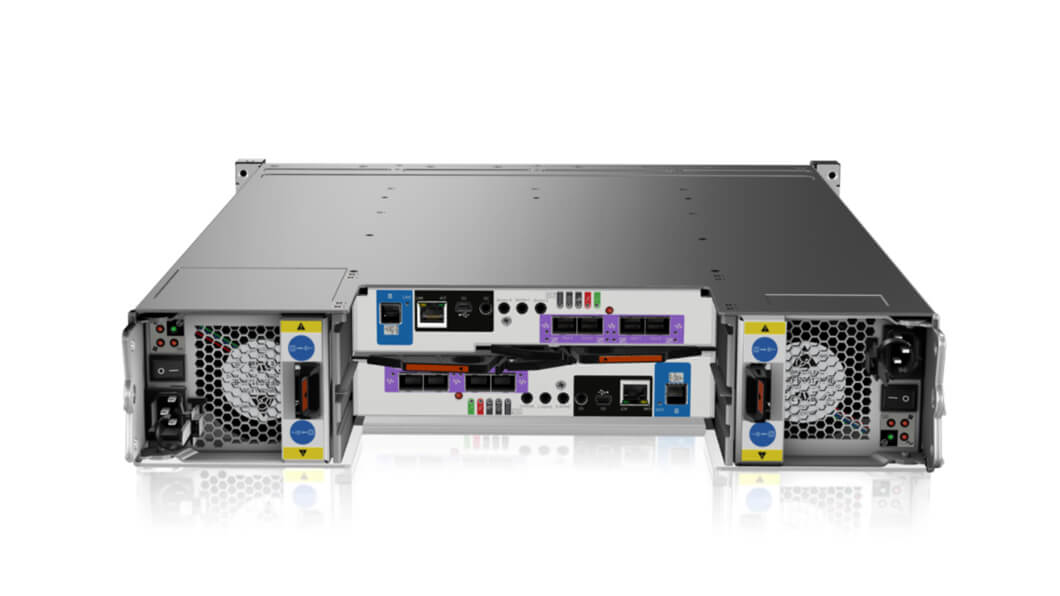

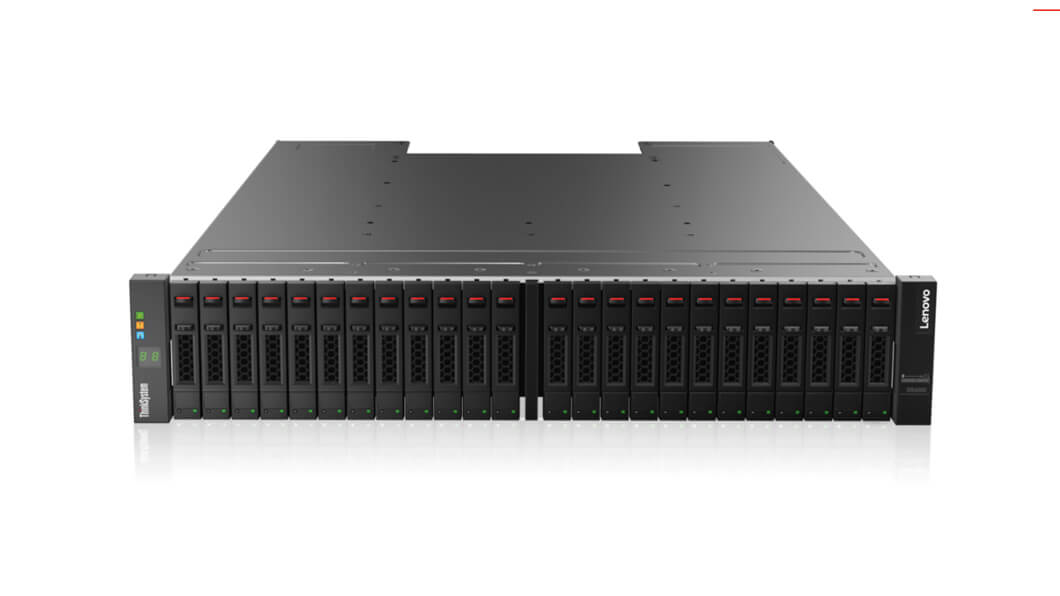

DS4200 disk array
0 TB Rack (2U) Black, Stainless steel
Model DS4200Part no. 4617A11EAN 889488430970
23 specifications
- ColourBlack, Stainless steel
- Storage drives installedNo
- Fibre ChannelYes
- Chassis typeRack (2U)
- Maximum number of controllers supported2
Overview
- Colour
- Black, Stainless steel
- Storage drives installed
- No
- Fibre Channel
- Yes
- Chassis type
- Rack (2U)
- Maximum number of controllers supported
- 2
- Brand
- Lenovo
- Category
- Disk Array
- Model
- DS4200
- Part number
- 4617A11
- EAN / UPC
- 889488430970, 4058154225134
- Also known as
- Lenovo DS4200 disk array 0 TB Rack (2U) Black, Stainless steel
Specifications
23 specifications in 6 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 1024 TB |
| Storage drive size | 2.5" |
| Supported storage drive interfaces | SAS |
| Data transfer rate | 12 Gbit/s |
| Hot-swap drive bays | Yes |
| HDD speed | 15000 RPM |
Ports & interfaces
| Specification | Value |
|---|---|
| Fibre Channel | Yes |
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Stainless steel |
| Number of fans | 2 fan(s) |
| Redundant fans support | Yes |
| Built-in display | Yes |
| Certification | Energy Star |
Performance
| Specification | Value |
|---|---|
| Maximum number of controllers supported | 2 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
