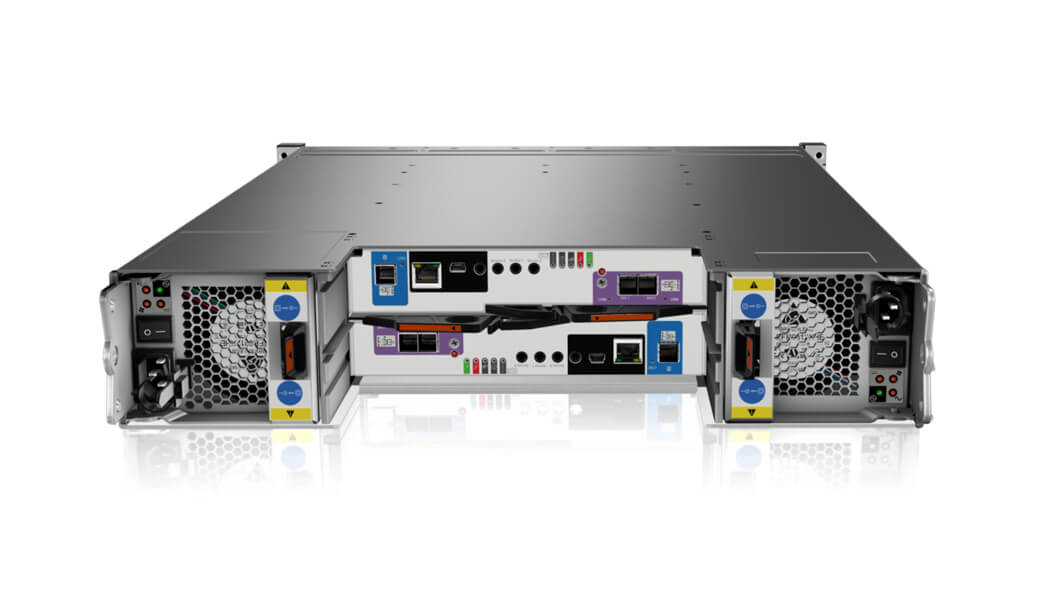

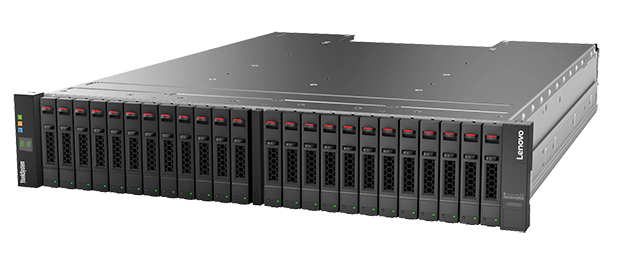

DS2200 SFF
Model DS2200 SFFPart no. 4599A11EAN 889488454242
34 specifications
- Weight30 kg
- ColourBlack, Stainless steel
- Storage drives installedNo
- Fibre ChannelYes
- Chassis typeRack (2U)
- Maximum number of controllers supported2
Overview
- Weight
- 30 kg
- Colour
- Black, Stainless steel
- Storage drives installed
- No
- Fibre Channel
- Yes
- Chassis type
- Rack (2U)
- Maximum number of controllers supported
- 2
- Brand
- Lenovo
- Category
- Disk Array
- Model
- DS2200 SFF
- Part number
- 4599A11
- EAN / UPC
- 889488454242, 4058154231197, 8894884542426
- Also known as
- Lenovo DS2200 SFF disk array 0 TB Rack (2U) Black, Stainless steel
Specifications
34 specifications in 9 groups
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Maximum supported storage capacity | 368.64 TB |
| Storage drive size | 2.5" |
| Supported storage drive interfaces | SAS-3 |
| RAID levels | 1, 5, 6, 10 |
Ports & interfaces
| Specification | Value |
|---|---|
| Fibre Channel | Yes |
| Host ports | 2 |
| SFP+ module slots quantity | 2 |
| RJ-45 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Stainless steel |
| Number of fans | 2 fan(s) |
| Redundant fans support | Yes |
| Certification | BSMI CNS 13438, Class A; CNS 14336-1, CCC GB 4943.1, GB 17625.1, GB 9254 Class A, CE, EAC, EN55032, EN55024, FCC, ICES-003/NMB-03, IEC/EN60950-1, MSIP, NOM-019, RCM, UL/CSA IEC 60950-1, VCCI |
Performance
| Specification | Value |
|---|---|
| Maximum number of controllers supported | 2 |
Power
| Specification | Value |
|---|---|
| Power supply unit (PSU) capacity | 580 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
System requirements
| Specification | Value |
|---|---|
| Linux operating systems supported | Red Hat Enterprise Linux WS 7.0 |
| Server operating systems supported | SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2016 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 30 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 100% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717020 |
